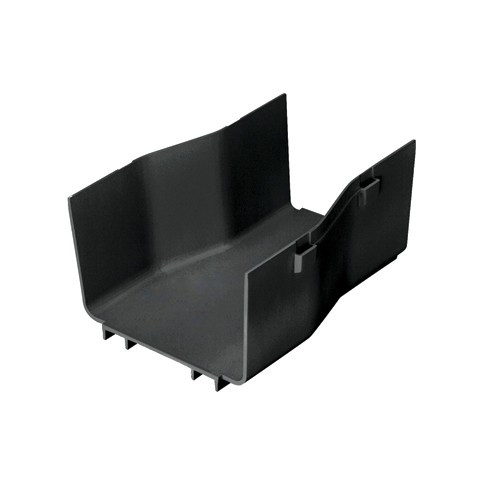

Panduit FRRF6FR4LBL FiberRunner 6" to 4" Reducer Fitting
The Panduit FRRF6FR4LBL is a FiberRunner reducer fitting engineered to transition fiber pathway systems from 6×4-inch channels down to 4×4-inch channels in data center and central office deployments. Molded from flame-retardant polycarbonate/ABS blend, this black reducer maintains pathway integrity across mix-and-match FiberRunner installations where cabinet density or ceiling grid constraints force a step-down in channel capacity. Installers working under raised-floor or overhead-runway conditions use this fitting to preserve bend-radius protection while adapting to narrower egress points near equipment racks or wall penetrations.
Key Features
- 6-inch exit to 4-inch exit reducer for FiberRunner channel systems
- Polycarbonate/ABS construction with flame-retardant properties and impact resistance
- UL-certified optical cable pathway assemblies through 2024 per fiber-routing standards
- Telcordia GR-63-CORE and NEBS Level 3 compliant for carrier-class seismic and thermal cycling
- 7.75" length × 7.03" width × 4.22" height footprint fits standard data center grid layouts
- RoHS-compliant formulation for European and California installations
- Black finish matches FiberRunner channel aesthetic and conceals dust accumulation
The FRRF6FR4LBL's tapered design maintains minimum bend radius for OS2 single-mode and OM3/OM4 multimode fiber bundles during the transition, critical when high-count trunk cables (144F, 288F) pass from main distribution frames to zone enclosures. The polycarbonate/ABS blend resists cracking under cable-tie compression and tolerates the thermal cycling common in HVAC-adjacent overhead runs. Installers pair this reducer with Panduit's snap-together FiberRunner sections to build continuous pathways without metal hardware—no drilling or threading required in seismically sensitive installations. The 7.03-inch width aligns with 12-inch ceiling tile modules, simplifying above-tile routing in office tower telecom rooms where architects limit penetration points.
UL certification covers the assembled pathway system when this reducer mates with other FiberRunner components, satisfying NEC Article 770 optical fiber cable requirements and building inspector sign-off criteria. Telcordia GR-63-CORE compliance addresses the seismic (Zone 4 earthquake simulation) and temperature-shock testing that carrier-class installations demand—relevant for colocation providers and enterprise campuses where SLA-backed uptime depends on physical-layer ruggedness. The RoHS-compliant formulation eliminates lead, cadmium, and restricted flame retardants, clearing both EU RoHS Directive 2011/65/EU and California Proposition 65 thresholds for projects with environmental procurement mandates.
This reducer fitting ships individually with a carton quantity of five, making it practical for phased build-outs where cabinet row expansions happen quarterly but the pathway skeleton stays permanent. When you're stepping down from high-capacity 6×4 backbone runs to 4×4 branch pathways feeding edge switches or storage arrays, the FRRF6FR4LBL preserves the continuous bend-radius protection and UL-listed system status that loose J-hooks and cable trays cannot deliver. The snap-together assembly eliminates the bolt-pattern mismatches and sharp edges that plague retrofit jobs in legacy Wiremold or Legrand ladder-rack environments.
