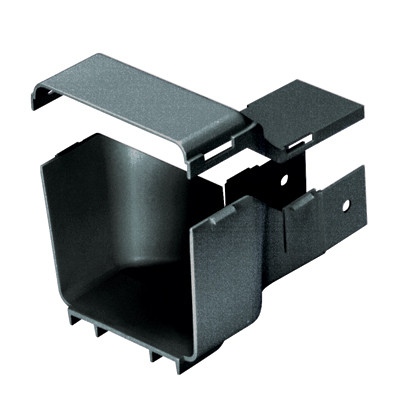

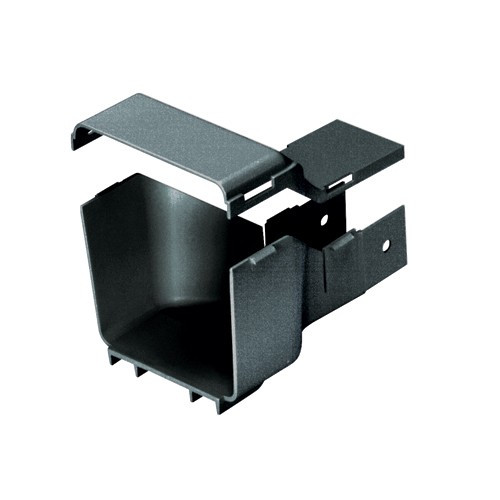

The Panduit FRRF4FD2LBL is a fiber routing reducer designed to transition FiberRunner pathways from 4" channels down to 2" exits while maintaining enclosed protection and bend-radius compliance throughout the transition. Built from impact-resistant polycarbonate/ABS in black, this reducer solves a common datacenter and telco infrastructure challenge: converging high-density trunk routes into smaller distribution channels without exposing fiber to damage during the size transition. The integrated cover ensures physical protection across the entire reducer length, preventing contamination and accidental contact in overhead or under-floor pathway systems where access control is inconsistent.
The FRRF4FD2LBL reducer uses Panduit's engineered polycarbonate/ABS blend, which provides the mechanical strength required for overhead installations while resisting the brittleness that affects pure ABS in temperature-cycled environments. The 120.4 mm (4.74") overall height accommodates the gradual taper geometry needed to prevent fiber kinking at the transition point—critical when routing OM4/OM5 multimode or OS2 singlemode trunk cables where minimum bend radius violations directly affect link loss budgets. The reducer's 137.7 mm (5.42") width matches standard FiberRunner 4" channel dimensions, ensuring flush mounting to existing pathway systems without adapter brackets. The integrated snap-on cover maintains pathway continuity across the reducer, eliminating the gap found in open-tray transitions where dust infiltration degrades connector endface cleanliness over time.
In datacenter deployments, this reducer typically handles the transition from main distribution area (MDA) trunk routes—often 4" FiberRunner channels carrying 144F to 288F cable assemblies—down to 2" pathways feeding individual row or rack groups. The compact 7.75" transition length fits within standard 24" floor tile grids in under-floor applications and clears typical 18" beam spacing in overhead installations, giving you flexibility in placement without custom structural work. For telco central office applications, the Telcordia GR-63-CORE Level 3 compliance certifies the reducer has passed earthquake simulation (Zone 4), office vibration, and airflow testing required for NEBS (Network Equipment Building System) installations—mandatory for carriers and critical infrastructure operators. The black finish provides visual consistency in mixed-vendor pathway systems and reduces glare in well-lit equipment rooms where reflective surfaces interfere with inspection work.
UL 2024 listing confirms the reducer meets flammability and mechanical load testing for optical fiber cable routing assemblies, including the 25-pound distributed load requirement and flame propagation limits specified for plenum-rated pathway systems. Telcordia GR-63-CORE Level 3 qualification adds seismic performance validation (withstands 2.5g peak acceleration in all three axes) and long-term thermal cycling (–40°C to +70°C operational range), ensuring the reducer maintains dimensional stability and fiber protection across the environmental extremes found in minimally conditioned telco huts and edge computing sites. RoHS compliance eliminates lead, mercury, and hexavalent chromium from the material formulation, satisfying procurement requirements for federal and state-funded infrastructure projects subject to environmental purchasing mandates.
