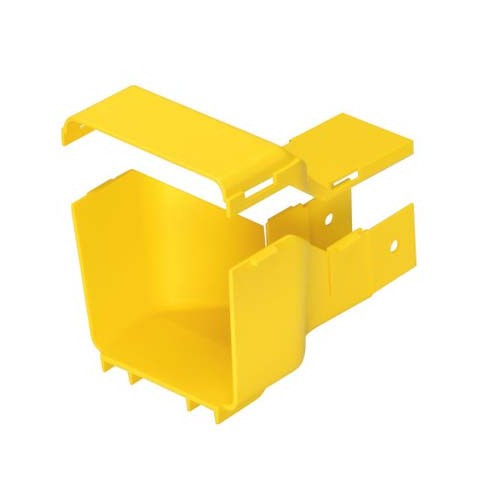

Panduit FRRF4FD2LYL FiberRunner 4x4 to 2x2 Reducer with Cover

The Panduit FRRF4FD2LYL FiberRunner reducer solves a common datacenter pathway problem: transitioning cleanly between 4-inch and 2-inch fiber routing channels without creating pinch points or exposure risks. This polycarbonate/ABS fitting connects a 4x4 FiberRunner raceway to a 2x2 channel or fitting, maintaining pathway integrity where cabinet rows converge, where trunk lines branch to equipment racks, or where high-density backbones step down to zone distribution. The included snap-on cover protects fibers through the transition zone and maintains the enclosed pathway that Telcordia GR-63-CORE and NEBS Level 3 environments require. Yellow construction provides instant visual identification in mixed-pathway installations.

Key Features

• 4-inch to 2-inch FiberRunner pathway transition with integrated cover
• Polycarbonate/ABS construction for impact resistance and long-term stability
• UL 2024 certified fiber optic cable raceway assembly
• Meets Telcordia GR-63-CORE and NEBS Level 3 seismic/environmental testing
• RoHS compliant for environmentally controlled facility requirements
• High-visibility yellow for pathway identification and safety compliance
• Snap-together installation requires no tools for cover attachment

Datacenter fiber infrastructure rarely follows a single-size pathway from entry point to endpoint. Core trunk runs typically use 4x4 FiberRunner for high fiber counts—24-strand, 48-strand, or multiple 12-strand groups feeding an entire row or zone. As those trunks branch toward individual cabinets or switch the pathway requirement drops and continuing with oversized raceway wastes overhead space and creates unnecessary cabinet-top clutter. The FRRF4FD2LYL provides the transition point: mount it where the trunk line reaches a cabinet row, where a vertical riser meets horizontal distribution, or where a backbone pathway splits into two lower-capacity branches. The 4-inch entry accepts the full trunk bundle; the 2-inch exit maintains protection for the reduced fiber count while freeing space for power or cooling infrastructure. The fitting's 7.75-inch overall length and 5.42-inch width provide gradual radius control—critical for singlemode OS2 fiber where bend radius violations cause insertion loss or outright failure. The included cover snaps over the transition area and locks into both the 4-inch and 2-inch pathway sections, preventing dust ingress and accidental contact during MACs.

Polycarbonate/ABS blend construction delivers the impact resistance and UV stability required in facilities where overhead pathways sit near HVAC ducts, sprinkler heads, or maintenance access points. The material remains dimensionally stable across the 0–50°C operating range typical of ASHRAE-managed white space and won't become brittle under continuous fluorescent or LED lighting. Yellow colorway serves two purposes: it differentiates fiber pathways from copper or power routing in congested overhead environments, and it meets the visual-identification requirements in facilities operating under TIA-942 Rated-3 or Rated-4 standards where pathway types must be immediately distinguishable during outage response. Installation involves snapping the reducer base onto the existing 4x4 FiberRunner channel, routing fibers through the transition, connecting the 2x2 outlet to the downstream pathway, and pressing the cover into place—no fasteners, no adhesive, and reversible if the pathway layout changes during a cabinet refresh.

UL 2024 certification confirms the assembly meets flame-propagation and smoke-generation limits for cable raceways installed in plenum and non-plenum spaces. Telcordia GR-63-CORE and NEBS Level 3 compliance mean the fitting has passed the earthquake simulation (Zone 4), temperature cycling (-40°C to +65°C), and humidity exposure (5% to 95% RH) protocols that Tier III/IV datacenters and carrier central offices mandate for all pathway components. RoHS compliance eliminates lead, mercury, cadmium, and restricted flame retardants—required for LEED-certified builds and for any installation in EU-regulated facilities. These certifications aren't marketing checkboxes; they're the documented proof that the fitting will survive a seismic event, won't contribute to a plenum fire, and meets the material-sourcing transparency that corporate ESG and government procurement teams now require on every line item.
