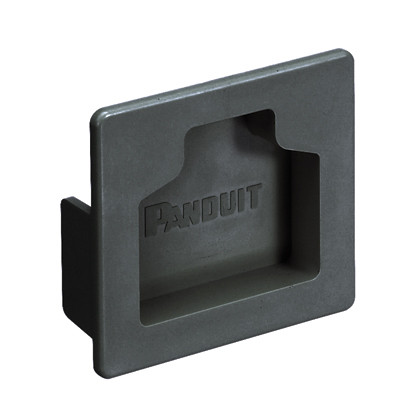

Panduit FHDEC2X2LBL FiberRunner 2x2 End Cap

The Panduit FHDEC2X2LBL is a snap-on end cap for FiberRunner 2x2 fiber routing systems, designed to close open channel ends and fittings in data center and central office installations. Molded from impact-resistant polycarbonate/ABS blend, this black end cap provides a clean termination point for hinged fiber pathways without requiring additional couplers. UL-listed as part of 2024A optical cable routing assemblies and qualified to Telcordia GR-63-CORE NEBS Level 3 seismic and thermal standards, the FHDEC2X2LBL meets the stringent environmental requirements of mission-critical telecom infrastructure.

Key Features

Tool-free snap-on installation to 2x2 FiberRunner channels and fittings—no couplers required

Polycarbonate/ABS construction for impact resistance and dimensional stability across temperature extremes

UL-listed optical cable routing assembly component rated up to 2024A

Telcordia GR-63-CORE and NEBS Level 3 qualified for carrier-grade installations

RoHS compliant for environmental regulatory compliance

Black finish for professional appearance in visible pathways and equipment rooms

Compact 2.37" W × 2.14" H × 0.58" D profile matches 2x2 channel cross-section

The FHDEC2X2LBL integrates with Panduit's FiberRunner 2x2 pathway system via a press-fit retention mechanism that eliminates the need for separate fasteners or couplers. The polycarbonate/ABS blend provides the mechanical strength to withstand incidental contact during maintenance while maintaining form stability across the -40°C to +65°C operating range specified in GR-63-CORE. At 2.37" wide × 2.14" high × 0.58" deep, the end cap matches the 2x2 channel cross-section and sits flush with pathway edges. The snap-on design allows removal and reinstallation during pathway reconfiguration without tool damage to the cap or channel—critical in installations where fiber routes evolve with equipment refreshes or tenant changes.

In hyperscale data centers and carrier hotels where fiber density and pathway flexibility drive infrastructure design, loose channel ends create snag points for patch cords and allow dust infiltration that can degrade connector performance over time. The FHDEC2X2LBL addresses both issues in installations where FiberRunner pathways terminate at equipment racks, branch to vertical risers, or stage for future extension. The black finish maintains visual consistency in pathways routed through customer-visible areas or glass-walled equipment rooms. The UL and NEBS certifications ensure the end cap maintains system-level compliance in installations subject to fire marshal inspection, carrier procurement standards, or colocation facility requirements that mandate certified pathway components.

The FHDEC2X2LBL ships individually with a carton quantity of 5 units and carries a manufacturer warranty. When designing high-density fiber routing systems, consult Panduit's FiberRunner planning guides for pathway capacity calculations, bend radius requirements, and accessory selection to ensure proper end-cap placement at termination points and future-growth stub-outs.
