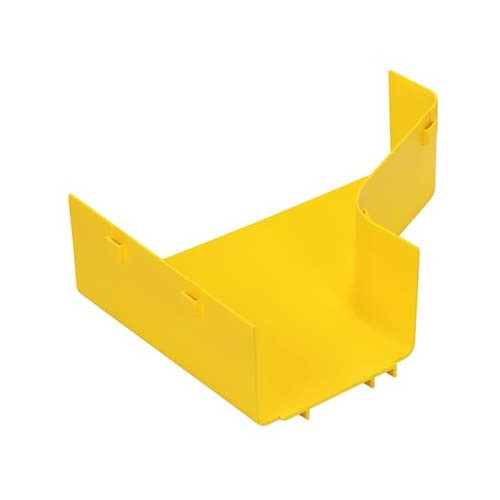

Panduit FRRF126RLYL FiberRunner Straight Reducer
The Panduit FRRF126RLYL straight reducer transitions FiberRunner 12×4-inch raceway down to 6×4-inch sections in data center and central office fiber routing installations. Molded from polycarbonate/ABS blend, this yellow fitting maintains pathway continuity when consolidating trunk fiber counts or routing into lower-density zones. UL-listed as part of Panduit's certified fiber-management assemblies, it delivers code-compliant transitions in high-density environments where bend-radius protection and structured pathways are mandatory.
Key Features
- 12-inch to 6-inch FiberRunner exit reduction for trunk-to-distribution transitions
- Polycarbonate/ABS construction resists impact and provides long-term dimensional stability
- UL-listed fiber cable management assemblies certification through 2024
- Telcordia GR-63-CORE and NEBS Level 3 compliant for telecom-grade installations
- Yellow color for high-visibility pathway identification in mixed-infrastructure environments
- 4.22-inch height maintains consistent raceway depth through the transition
The reducer's 13.68-inch width accommodates the full 12-inch upstream raceway, tapering internally to guide fiber bundles smoothly into the 6-inch downstream section. The 9.75-inch overall length provides a gradual transition angle that prevents kinking in high-fiber-count trunks—critical when routing 144-strand or 288-strand assemblies from MDA racks into horizontal distribution zones. Polycarbonate/ABS blend delivers superior impact resistance compared to painted steel fittings while maintaining flame rating and RoHS compliance. The yellow finish integrates with Panduit's color-coding system for pathway types, simplifying audits in multi-vendor data center builds where fiber, copper, and power pathways share overhead zones.
Deployed at trunk-to-horizontal demarcation points in hyperscale data centers, carrier hotels, and campus telecom closets, the FRRF126RLYL manages the fiber-count step-down that occurs when backbone trunks split into zone distributions. Installers use it where a 12×4 main run from an optical distribution frame feeds into 6×4 branches serving individual rows or equipment cabinets. The fitting's snap-together design integrates with Panduit's broader FiberRunner ecosystem—no field drilling or custom fabrication required. In retrofit scenarios, the reducer allows legacy 6-inch pathways to accept feeds from newer high-density 12-inch trunks without ripping out existing infrastructure.
Telcordia GR-63-CORE compliance certifies the fitting for seismic Zone 4 installations and NEBS Level 3 environmental exposure, meeting carrier-class requirements for central offices and meet-me rooms. UL certification as part of complete fiber-management assemblies ensures inspectors accept the installation in jurisdictions requiring listed cable-support systems. RoHS compliance addresses procurement mandates in EU-hosted colocation facilities and multinational enterprise builds. For integrators managing pathway systems in mission-critical fiber plants, the FRRF126RLYL provides a code-compliant, install-ready transition component that maintains bend-radius protection through density changes—eliminating the custom sheet-metal work and field validation overhead that unrated fittings impose.
