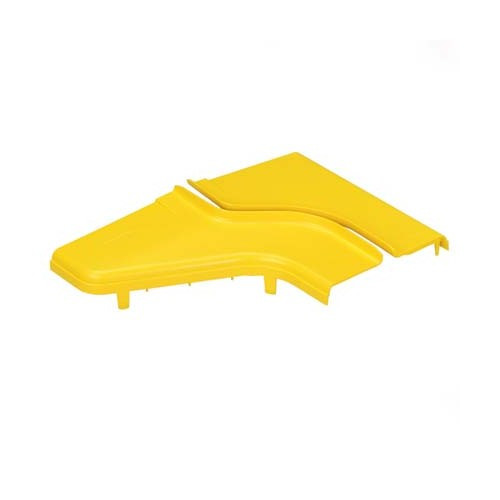

Panduit FRRF126LSCLYL 12"x6" Reducer Cover Yellow

Panduit FRRF126LSCLYL FiberRunner Left Reducer Cover

The Panduit FRRF126LSCLYL is a split protective cover designed for the FRRF126LYL reducer fitting in FiberRunner fiber cable management systems. This optional cover protects the transition point where your pathway reduces from 12" to 6" width while maintaining cable access through a factory-formed 3/4" (19 mm) rounded opening. The clip-on design allows installation and removal without tools, critical when you're retrofitting protection onto existing fiber runs or need to access termination points without disrupting adjacent infrastructure. High-visibility yellow construction meets data center color-coding standards for fiber-specific pathways.

Key Features

• Tool-free clip-on installation and removal for retrofit applications and maintenance access
• Split design allows installation on live fiber runs without disconnecting cables
• Factory 3/4" (19 mm) rounded opening provides cable entry/exit point at the reducer junction
• High-visibility yellow color matches FiberRunner system standards for fiber pathway identification
• Polycarbonate/ABS blend construction resists impact and provides long-term dimensional stability
• UL certified as part of optical cable routing assemblies (certified through 2024)
• Fits Panduit 12" to 6" reducer transitions (FRRF126LYL fitting)
• Telcordia GR-63-CORE and NEBS Level 3 compliant for central office and data center environments

The polycarbonate/ABS material blend delivers impact resistance and dimensional stability across temperature extremes typical in raised-floor data center environments. At 13.63" wide × 7.81" long × 2.74" high, the cover fully encloses the reducer transition while the pre-formed 3/4" opening provides a controlled cable entry point. The clip mechanism engages the reducer fitting's mounting features without requiring screws or fasteners—critical when you're working in hot aisles or overhead pathways where dropped hardware creates FOD risks. The split design allows you to install the cover after cables are dressed, or remove it for adds/moves/changes without disturbing terminated fiber. Yellow colorization provides instant visual identification of fiber-specific pathways, reducing the risk of accidental contact during adjacent copper or power work.

This cover is engineered for data centers and central telecom offices running high-density fiber between equipment rows and meet-me rooms. Use it at reducer junctions where your main 12" FiberRunner trunk drops to 6" branch pathways serving individual racks or zones. The rounded cable opening prevents jacket abrasion during installation pulls and thermal expansion cycles, while the full enclosure protects connectors and splice points from dust ingress and accidental contact. The tool-free clip design is particularly valuable in NEBS-compliant central offices where metallic tool restrictions apply, or in live data centers where minimizing mean time to access (MTTA) during moves is critical. The cover installs in seconds: align the split halves around the reducer, press until the clips engage, done—no need to de-energize adjacent circuits or schedule maintenance windows.

The FRRF126LSCLYL is UL certified as part of Panduit's optical cable routing assemblies (certification valid through 2024), RoHS compliant for global deployment, and meets Telcordia GR-63-CORE seismic and thermal cycling requirements plus NEBS Level 3 standards for network equipment building systems. These certifications ensure the cover maintains mechanical integrity and pathway protection during seismic events (Zone 4) and temperature excursions (-40°C to +65°C), critical for carrier-grade installations. Ships in cartons of 5 units; each unit is individually packaged for controlled inventory in multi-site deployments.
