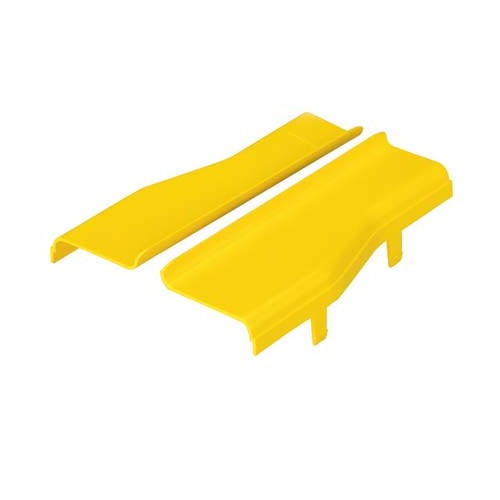

Panduit FRRF6FR4SCLYL FiberRunner 6x4 to 4x4 Reducer Cover
The Panduit FRRF6FR4SCLYL split reducer cover closes the 6x4-to-4x4 FiberRunner junction without forcing a pathway shutdown. Its tool-free clip mechanism lets you snap the cover on or pull it off in seconds—no screws, no driver, no downtime—so adds and moves in live data center aisles stay fast and safe. The 19mm rounded cable-access port maintains controlled bend radius while giving you a clean entry point for breakout legs or cross-connects that need to exit mid-run. Yellow high-visibility color marks transition points in dark under-floor plenums and helps techs spot reducer junctions during troubleshooting sweeps.
Key Features
- Tool-free clip installation and removal—no screwdriver, no pathway downtime, no loose hardware to drop into active racks
- Fits Panduit 6x4-to-4x4 FiberRunner reducer junction—purpose-built for that geometry, not a universal trim piece
- 19mm rounded cable-access opening maintains minimum bend radius and provides controlled exit point for breakout legs
- Yellow polycarbonate/ABS shell—high-impact durability and high-visibility safety marking in under-floor or overhead pathways
- UL-certified fiber-optic cable-routing assembly component, RoHS compliant, tested to Telcordia GR-63-CORE Network Equipment Building Systems (NEBS) Level 3 shock and vibration
Reducer junctions concentrate cable density and create stress points where 6-inch-wide trunk pathways narrow to 4-inch feeder runs. Leaving the junction open invites snagged patch cords during cart moves, accidental bend-radius violations when techs pull slack, and dust infiltration that fouls connector end-faces over time. The FRRF6FR4SCLYL cover solves all three: it shields the transition, enforces proper bend geometry with the 19mm port, and seals the junction against airborne contamination. The split-shell design with snap clips means you install it after cables are dressed—slide it over the populated reducer, press until the clips engage, done. When you need to add a new breakout or reroute a cross-connect months later, pull the cover off, make your change, snap it back on. No screws to fish out of the pathway, no tools to carry up the ladder.
Polycarbonate/ABS blend delivers the impact resistance you need in high-traffic aisles where floor tiles get pulled weekly and carts bump pathway edges daily. The yellow pigment isn't decorative—it's a safety and operational marker that helps installation crews distinguish reducer junctions from straight-run sections during initial build-out and helps operations teams trace pathway routes under raised floors where lighting is minimal. Dimensions are 7.75 inches length × 6.89 inches width × 2.15 inches height, sized to mate precisely with Panduit's 6x4 and 4x4 FiberRunner profiles without gaps or overhang. Carton quantity is five covers, so you can outfit a row of racks or a structured-cabling closet in one purchase.
UL listing as part of Panduit's FiberRunner optical-cable routing assemblies through 2024 means the cover meets flame-spread and smoke-generation limits for plenum-rated installations, and Telcordia GR-63-CORE NEBS Level 3 qualification confirms it survives the earthquake-zone shock profiles and central-office vibration that telco and colocation operators require. RoHS compliance keeps you clean on hazardous-substance regulations in EU-hosted builds and multinational enterprise deployments. This is the correct cover for Panduit 6x4-to-4x4 reducer junctions—not a generic trim cap, not a field-modified blank, the engineered component that maintains pathway integrity and speeds your install.
