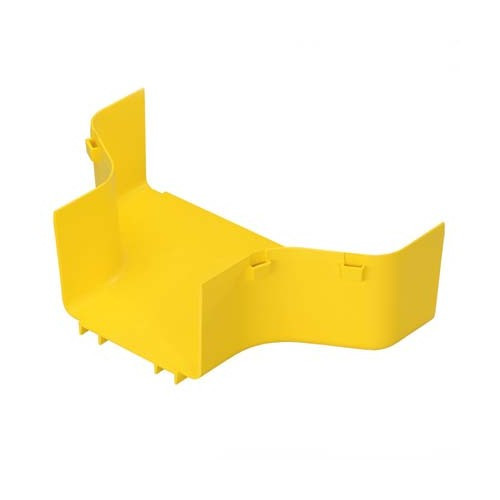

Panduit FRRF126LSYL FiberRunner 12x4 to 6x4 Reducer Splice

The Panduit FRRF126LSYL is a FiberRunner reducer splice engineered to transition fiber pathway systems from 12-inch-wide channels down to 6-inch channels while maintaining a 4-inch depth throughout. Built from polycarbonate/ABS blend and finished in high-visibility yellow, this reducer addresses a common design challenge in telecommunications central offices and data centers: managing fiber density transitions between backbone runs and distribution zones without violating minimum bend radius requirements. UL-listed to Standard 2024 for fiber optic cable routing assemblies and qualified to Telcordia GR-63-CORE NEBS Level 3, this component meets the mechanical and environmental demands of carrier-grade installations where pathway integrity directly impacts network uptime.

Key Features

• 12" x 4" to 6" x 4" reduction geometry preserves 4-inch depth for consistent bend radius management
• UL-listed to Standard 2024 for fiber optic cable routing assemblies with NEBS Level 3 qualification per Telcordia GR-63-CORE
• Polycarbonate/ABS construction delivers impact resistance and dimensional stability across -40°C to +65°C operating range
• High-visibility yellow finish supports color-coded pathway identification in multi-vendor cable plants
• 13.46" width × 7.81" length × 4.22" height fits standard 19" and 23" rack alignments with minimal footprint
• RoHS-compliant formulation meets procurement requirements for federal, healthcare, and European deployments

FiberRunner pathway systems solve the mechanical protection problem that defines fiber installation longevity. Unlike conduit or J-hooks, which rely on installer discipline to avoid overbending during moves-adds-changes, a continuous raceway enforces minimum bend radius by physical constraint. The FRRF126LSYL reducer extends this protection through the transition zone where a 12-inch trunk pathway feeds multiple 6-inch branch runs—typically the point where cables exit a main distribution frame toward equipment rows or cross-connects. The gradual taper geometry prevents the sharp-angle transitions that occur when installers attempt to bridge dissimilar pathway widths with cable slack alone. For single-mode OSP fiber entering a building on 12-inch FiberRunner and distributing to equipment on 6-inch runs, this reducer maintains the 1.5-inch minimum bend radius throughout the transition, preserving insertion loss budgets and preventing long-term microbending attenuation that shows up months after installation during OTDR acceptance testing.

NEBS Level 3 qualification matters in carrier central offices, colocation facilities, and any environment where the pathway must survive earthquake simulation, temperature cycling, and fire exposure testing per GR-63-CORE. Standard cable tray and ladder rack lack this pedigree—Panduit's FiberRunner system is tested as an assembly, meaning the reducers, channels, and splices function as a unified structure under seismic load rather than relying on individual component strength alone. The polycarbonate/ABS blend contributes here: it's lighter than steel or aluminum raceway, reducing the inertial forces transmitted to ceiling supports during seismic events, yet it won't corrode in humid coastal environments or degrade under the UV exposure common in rooftop cable entrances. Yellow colorway serves dual purposes—it's the de facto standard for fiber pathway identification in facilities running copper, coax, and fiber simultaneously, and it provides high contrast against black ladder rack or white ceiling tile during maintenance, reducing the chance a technician damages fiber while working on adjacent copper infrastructure.

UL 2024 listing and RoHS compliance address the procurement gates enforced by federal integrators working GSA schedules, healthcare systems subject to sustainability audits, and European customers operating under WEEE directives. This reducer ships individually packaged and integrates with the full FiberRunner 12x4 and 6x4 ecosystem—channels, vertical risers, radiused elbows, and wall-penetration flanges—allowing design flexibility in retrofit projects where existing pathways must adapt to new equipment layouts without forklift upgrades to the entire cable plant.
