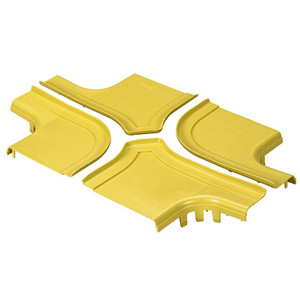

Panduit FRFWC12X4W4LYL FiberRunner 4-Way Cross Fitting for 12x4 Pathway

The Panduit FRFWC12X4W4LYL is a four-way cross fitting engineered for high-density fiber routing in datacenter and telecom central office environments. This pathway intersection component mounts directly to FiberRunner 12x4 channels and fittings, creating a horizontal four-way crossover with two dedicated 4x4 exits. Polycarbonate/ABS construction delivers the impact resistance and flame performance required for UL 2024A optical cable raceway certification. The yellow finish maintains visual consistency with standard fiber pathway identification protocols. At 21.25 inches wide by 12.96 inches deep, the fitting accommodates high fiber counts at pathway intersections without exceeding standard overhead grid spacing in raised-floor datacenter layouts.

Key Features

• Four-way horizontal intersection design for FiberRunner 12x4 pathway systems
• Dual 4x4 exit ports for branch routing from main 12x4 trunk pathways
• Polycarbonate/ABS blend rated for UL 2024A optical cable raceway applications
• Telcordia GR-63-CORE and NEBS Level 3 compliant for carrier-grade installations
• 21.25" × 12.96" × 4.22" footprint fits standard datacenter ceiling grid spacing
• Yellow finish for fiber pathway visibility and code compliance
• RoHS compliant for equipment disposal and environmental regulations
• Snap-mount attachment to 12x4 FiberRunner channels without fasteners

The four-way cross geometry routes fiber bundles through complex datacenter topologies where main distribution pathways intersect with row-based or zone-based branch runs. The 12x4 main channel connections maintain full pathway width for trunk fiber counts, while the two 4x4 exits provide reduced-width branches suitable for equipment row drops or cross-aisle links. This asymmetric port configuration prevents over-provisioning pathway capacity on branch runs while maintaining headroom on trunk routes. The polycarbonate/ABS material system combines the impact resistance of polycarbonate with the flame-retardant properties of ABS, meeting the continuous-use temperature and flammability requirements of UL 2024A without requiring metal construction. The snap-mount interface eliminates threaded fasteners at pathway junctions, reducing install time and allowing tool-free reconfiguration when rack layouts change or fiber routes are re-homed during datacenter expansions.

This fitting addresses the intersection routing challenge in modular datacenter designs where overhead fiber pathways cross at regular grid intervals. The 21.25-inch width aligns with 24-inch ceiling grid centers common in raised-floor facilities, allowing the cross to mount at grid intersections without obstructing tile access or interfering with cable tray runs in adjacent grid bays. The 4.22-inch profile fits within the typical 6–8 inch clearance between drop ceiling and structural slab in telecom central offices, leaving room for sprinkler piping and HVAC duct crossings. Yellow color-coding differentiates fiber pathways from copper cable trays and power conduit in mixed-infrastructure ceilings, reducing the risk of accidental fiber damage during maintenance work on adjacent systems. The dual 4x4 exits support symmetrical branch routing to equipment rows on both sides of a main aisle, a common topology in spine-and-leaf network architectures where top-of-rack switches connect to core switches via east-west fiber runs.

UL 2024A certification confirms the fitting meets the flame spread, smoke generation, and continuous-use temperature requirements for optical fiber cable raceways in plenum and non-plenum spaces. Telcordia GR-63-CORE compliance verifies the mechanical design withstands seismic zone 4 and office vibration environments per carrier central office standards, while NEBS Level 3 rating confirms performance under the extended temperature and humidity ranges typical of equipment rooms without dedicated HVAC. RoHS compliance eliminates lead and restricted substances, simplifying end-of-life disposal and meeting procurement requirements for government and healthcare datacenter projects. The snap-mount interface and tool-free assembly reduce install labor compared to bolted metal pathway systems, a cost factor when routing fiber across large datacenter floors with dozens of pathway intersections.
