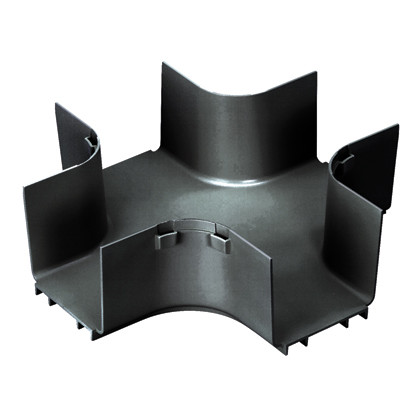

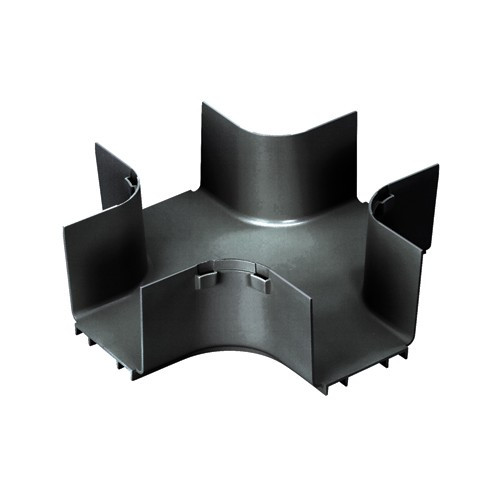

Panduit FRFWC4X4LBL FiberRunner 4-Way Cross Fitting

The Panduit FRFWC4X4LBL is a polycarbonate/ABS 4-way cross fitting engineered for FiberRunner 4x4 fiber cable routing systems in data centers and telecom central offices. This junction component mounts directly to 4x4 channels and fittings to create a horizontal four-way intersection with two 4x4 outlets, enabling perpendicular pathway branches without custom fabrication. The 12.95" × 12.95" footprint and 4.22" height fit standard overhead ladder rack and underfloor grid layouts, while UL certification to 2024A and Telcordia GR-63-CORE NEBS Level 3 compliance meet telco and colocation facility requirements for optical cable management assemblies.

Key Features

• 4-way horizontal cross junction for FiberRunner 4x4 system creates two perpendicular 4x4 outlets
• Polycarbonate/ABS construction balances impact resistance with dimensional stability across -40°C to +60°C operating range
• UL Listed optical cable guidance assemblies certified to 2024A load capacity
• Telcordia GR-63-CORE compliant, qualified for NEBS Level 3 central office environments
• 12.95" × 12.95" junction footprint with 4.22" height for pathway layout planning
• Black finish integrates with standard FiberRunner 4x4 infrastructure
• RoHS compliant material formulation for EU and California installations

Data center and telecom pathway designs frequently require trunk fiber routes to branch at row intersections, equipment pod corners, or Meet-Me Room entry points. The FRFWC4X4LBL cross fitting eliminates the need for offset tees or custom right-angle assemblies by providing four-way junction geometry in a single UL-Listed component. The polycarbonate/ABS blend delivers higher impact strength than PVC alternatives—critical in overhead installations above active equipment where dropped tools or seismic events impose mechanical stress—while maintaining the flame rating and low-smoke characteristics required by NFPA 70 and local AHJ adoption of plenum-equivalent standards for cable support structures. Installers working under Uptime Institute Tier III or TIA-942 design requirements can reference the Telcordia GR-63-CORE qualification when documenting pathway component compliance for audit or final inspection.

The 12.95-inch square junction dimension aligns with 300mm and 600mm grid spacing common in raised-floor tile layouts and overhead cable tray main runs, simplifying BOM planning when coordinating FiberRunner routes with electrical conduit, HVAC ductwork, and structural beam placement. The 4.22-inch height accommodates high-density trunk cable bundles—including 288-fiber and 432-fiber assemblies with factory-terminated harnesses—without exceeding the bend radius limitations that trigger insertion loss penalties during OTDR certification. Each fitting includes integrated mounting tabs that bolt directly to FiberRunner 4x4 straight sections and corner fittings using the same hardware kit, maintaining pull-tested joint strength across the entire pathway assembly. For retrofit installations in legacy spaces with existing cable tray or J-hook infrastructure, the cross fitting can serve as a transition point where new FiberRunner routes intersect older overhead systems, providing a clean handoff plane for slack management and future pathway extensions.

Ships in cartons of 5 units (1 fitting per package) with installation hardware and RoHS compliance documentation. Standard lead time from authorized Panduit distributors. Compatible exclusively with Panduit FiberRunner 4x4 straight sections, vertical drops, and radius fittings—verify existing infrastructure part numbers before ordering to ensure dimensional and load-rating alignment across the complete pathway assembly.
