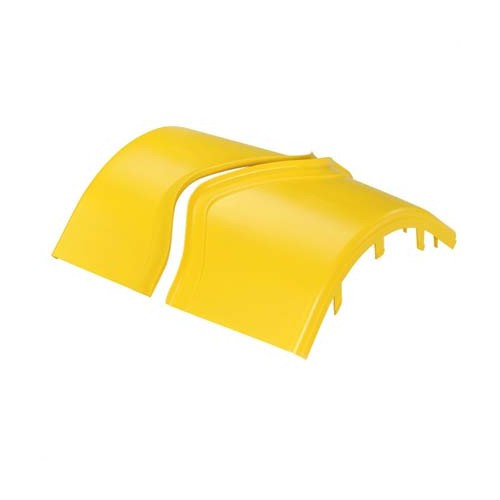

Panduit FROVRASC12LYL FiberRunner 12x4 Right Angle Vertical Outside Corner Cover

The Panduit FROVRASC12LYL is a right-angle vertical outside corner cover designed for FiberRunner 12x4 fiber cable management systems. This polycarbonate/ABS component creates accessible openings at 90-degree vertical outside corners, allowing technicians to add or remove fiber cables without removing entire raceway sections. Yellow high-visibility construction helps differentiate fiber pathways in dense datacenter and central office environments where multiple cable types converge.

Key Features

• Right-angle vertical outside corner cover for FiberRunner 12x4 systems
• Polycarbonate/ABS construction for impact resistance and dimensional stability
• 9.26 in H × 13.7 in W (235.2mm × 348mm) — matches FiberRunner 12x4 raceway profile
• Removable design allows cable access without disassembling raceway runs
• Yellow color for high-visibility fiber pathway identification
• UL certified for optical fiber cable routing assemblies up to 2024A rating
• Meets Telcordia GR-63-CORE and NEBS Level 3 seismic/environmental standards
• RoHS compliant — safe for global datacenter deployments

Fiber optic cable management in datacenters and telecom central offices demands both protection and accessibility. The FROVRASC12LYL addresses the challenge of maintaining proper bend radius at vertical outside corners — where fiber bundles transition from horizontal overhead runs to vertical drops or change direction along building columns — while preserving the ability to add circuits or troubleshoot without tearing down installed infrastructure. The polycarbonate/ABS blend provides the impact resistance needed in active work environments while maintaining dimensional stability across the -40°C to +65°C operating range common in NEBS Level 3 applications. At 9.26 inches tall and 13.7 inches wide, the cover precisely matches the FiberRunner 12x4 raceway cross-section, ensuring no fiber is forced into tighter bends at transition points where damage risk is highest.

In practice, this cover installs at every vertical outside corner in a FiberRunner 12x4 system — typically at the top or bottom of cable risers where horizontal distribution meets vertical backbone runs. The removable design means a technician can snap off the cover, dress in a new fiber trunk or patch cable, and replace the cover in under a minute, versus the 20–30 minute disruption of disassembling hinged duct sections. For facilities running 24×7 operations, that difference matters: adds and moves happen during limited maintenance windows, and every minute saved on cable access translates to less risk of accidental service impact. The yellow color is deliberate — in mixed-infrastructure environments where copper, fiber, and power all share overhead space, color-coding prevents the wrong raceway mistakes that lead to fiber cuts during unrelated work.

UL certification to the 2024A optical fiber cable routing standard and compliance with Telcordia GR-63-CORE seismic and NEBS Level 3 environmental tests make this component suitable for carrier-grade telecom installations and enterprise datacenters with strict infrastructure standards. The RoHS compliance ensures the cover meets global environmental and safety regulations, eliminating procurement barriers for multinational deployments or facilities with cross-border equipment standardization requirements.
