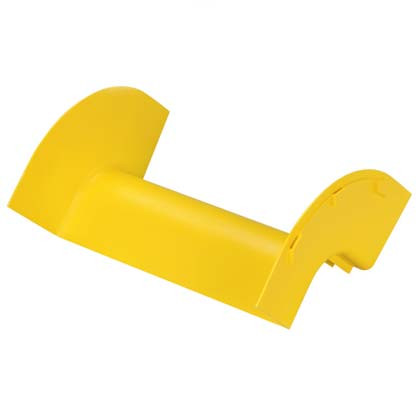

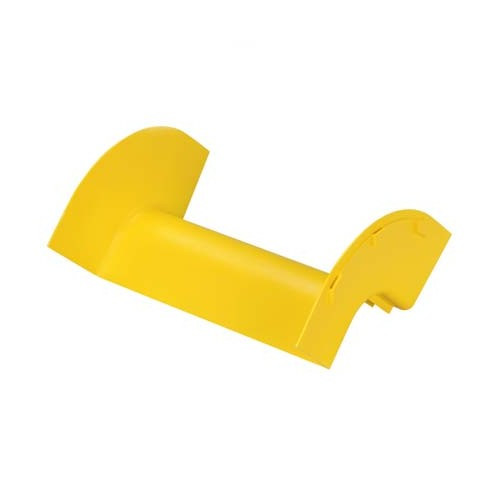

Panduit FROVRA12X4LYL FiberRunner Vertical Right Angle Outer Corner
The Panduit FROVRA12X4LYL vertical outer corner creates a 90-degree vertical transition from horizontal FiberRunner pathway to vertical routing plane. Designed for 12x4 FiberRunner systems in data centers and telecommunications facilities, this yellow polycarbonate/ABS fitting pairs with the FRIVRA12X4LYL inner vertical connector to establish clean, structured fiber pathway plane changes. When horizontal trunk routes must rise to overhead ladder rack or descend to equipment racks, this outer corner eliminates the sharp bend radius violations that plague improvised vertical transitions.
Key Features
- 90-degree vertical right angle outer corner for 12x4 FiberRunner cable management systems
- Polycarbonate/ABS composite construction resists impact and provides long-term dimensional stability
- Yellow color for high-visibility fiber pathway identification in mixed-media environments
- UL 2024A listed for fiber optic cable routing assemblies
- Telcordia GR-63-CORE and NEBS Level 3 compliant for telecom-grade installations
- Works with FRIVRA12X4LYL inner vertical connector to complete vertical plane transition
- 7.74-inch height × 13.92-inch width profile fits standard cabinet and rack spacing
- RoHS compliant for global regulatory acceptance
The FROVRA12X4LYL outer corner is engineered for high-density fiber deployments where structured pathway systems must transition between horizontal and vertical planes without compromising bend radius requirements. The polycarbonate/ABS blend delivers superior impact resistance compared to pure ABS while maintaining the rigidity required to support pathway loads in vertical orientations. Yellow pigmentation throughout the material provides instant visual differentiation from copper or mixed-signal pathways, critical in facilities where multiple cable types converge at vertical risers. The 7.74-inch height dimension accommodates the 4-inch FiberRunner channel depth with integrated mounting flanges, while the 13.92-inch width spans the 12-inch pathway width plus structural reinforcement at the 90-degree bend.
In data center vertical riser installations, the outer corner mounts at the horizontal-to-vertical transition point where trunk fiber routes leave the raised floor plenum or overhead cable tray and turn upward toward distribution frames or downward toward TOR switch positions. Pair this outer corner with the FRIVRA12X4LYL inner connector on the opposing wall of the vertical pathway to create a complete enclosed turn that prevents fiber spillage during cable pulls and maintains the protective enclosure across the full transition. The fitting's 196.6mm overall height provides sufficient clearance for tool access during termination work at adjacent patch panels or equipment, while the 353.4mm width keeps the pathway footprint within typical hot-aisle and cold-aisle dimensional constraints.
UL 2024A listing qualifies the FROVRA12X4LYL for fiber optic cable routing assembly installations under NEC Article 770, meeting authority-having-jurisdiction requirements for permanent telecom infrastructure. Telcordia GR-63-CORE and NEBS Level 3 compliance demonstrates the fitting has passed seismic Zone 4 testing, temperature cycling from -40°C to +65°C, and humidity exposure protocols required for central office and carrier hotel deployments. This certification baseline is critical for colocation providers and enterprise IT groups operating under carrier-grade infrastructure standards, where pathway component failure during seismic events or environmental extremes can trigger multi-tenant outage exposure.
