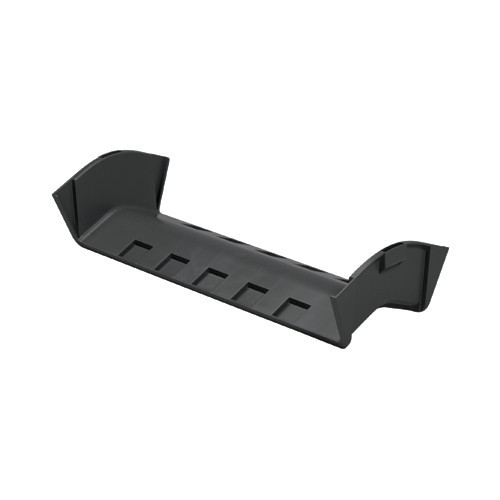

The Panduit FROV4524X4LBL outer vertical angle creates controlled 45-degree downward transitions in horizontal 4x4 FiberRunner pathways. Unlike sharp 90-degree bends that risk exceeding minimum bend radius on high-density fiber trunk assemblies, this fitting provides a gradual descent path when dropping from overhead cable tray to rack-mounted patch panels or ODF frames. Pair it with the FRIV4524X4LBL inner vertical angle to execute clean plane changes in multi-tier datacenter hot-aisle layouts. Black polycarbonate/ABS construction meets NEBS Level 3 seismic and thermal cycling requirements for carrier-grade telecom facilities.
The 45-degree angle geometry is purpose-built for high-density fiber trunk routing where maintaining minimum bend radius is non-negotiable. When transitioning a loaded 4x4 FiberRunner pathway from overhead ladder rack down to a row of network cabinets, a 90-degree elbow forces tight radius bends on the outer cable layers—risking attenuation spikes or jacket damage on 144-strand to 288-strand OS2 assemblies. This outer vertical angle spreads the curve across 25.68 inches of fitting length, keeping individual fiber strands within manufacturer-specified bend limits even when the pathway carries 12 to 24 multi-fiber trunk cables. The polycarbonate/ABS material blend provides structural rigidity without the brittliness of pure ABS or the cost of metal channel; it won't sag under a fully populated pathway load and maintains dimensional stability across the -40°C to +65°C range required by NEBS Level 3. Use the FRIV4524X4LBL inner angle on the opposite side of the bend to complete the radius and create a smooth U-shaped drop from horizontal run to vertical riser or equipment feed.
NEBS Level 3 certification matters in carrier hotels, colocation facilities, and enterprise datacenters with uptime SLAs that prohibit infrastructure failures during seismic events or thermal swings. Telcordia GR-63-CORE testing subjects the fitting to Zone 4 earthquake simulation, rapid temperature cycling between environmental extremes, and sustained office vibration—verifying it won't crack, warp, or release cable support during the mechanical stresses typical in 24/7 network equipment building systems. UL 2024A listing covers both plenum-rated and riser-rated fiber assemblies, so you can route OM3/OM4 multimode or OS2 singlemode trunks through the same pathway without code violations during AHJ inspections. The fitting ships as a single-piece molded unit with integrated mounting tabs for tool-free snap-in attachment to FiberRunner 4x4 horizontal sections—no fasteners to inventory, no assembly time on-site. For datacenter managers running 40G/100G/400G spine-leaf fabrics or DCI interconnects, this fitting is how you execute vertical transitions without introducing insertion loss from overbend stress or creating service loops that waste rack U-space and obstruct airflow in hot aisles.
