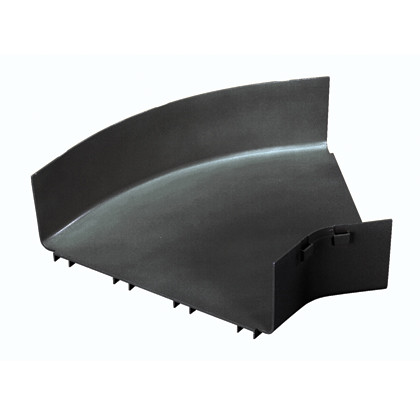

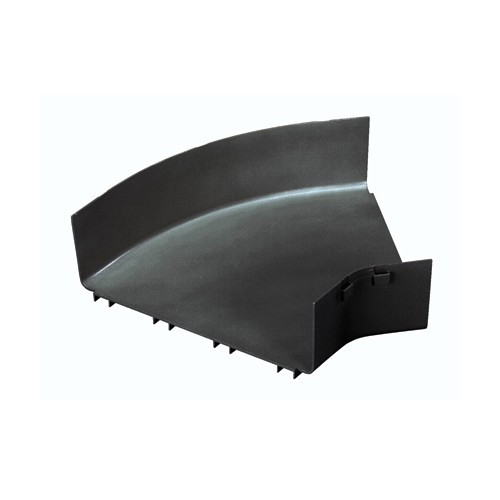

Panduit FRH4512X4LBL FiberRunner 12x4 Horizontal Elbow Fitting
The Panduit FRH4512X4LBL horizontal elbow fitting creates 45° directional changes in FiberRunner 12x4 optical fiber pathway systems. Molded from LSZH-grade polycarbonate/ABS, this interlocking fitting joins channels and other fittings to route high-density fiber trunks around corners, over hot-aisle containment rows, or along perimeter walls in data centers and carrier central offices. The low-smoke zero-halogen formulation meets life-safety requirements for enclosed telecom spaces and raised-floor plenums where PVC combustion products would pose evacuation risks.
Key Features
- 45° horizontal bend radius for FiberRunner 12x4 cable runway system
- LSZH polycarbonate/ABS construction reduces toxic smoke in fire scenarios
- UL 2024A certified optical cable routing assembly rating
- Telcordia GR-63-CORE NEBS Level 3 seismic and thermal compliance
- Snap-together interlocking design with channels and adjacent fittings
- Black finish for visual consistency in exposed overhead installations
- 15.24" length × 16.06" width × 4.22" height footprint
The FRH4512X4LBL uses Panduit's interlocking tab-and-slot geometry to form continuous pathways without separate fasteners at fitting-to-channel interfaces. Installers align the fitting's end tabs with channel slots, press until the retention clip engages, then verify the joint by pulling against the connection axis. This mechanical lock distributes cable-load tension across the entire pathway length rather than concentrating stress at mounting points. The 12x4 cross-section (12" wide × 4" deep) provides 48 square inches of cable capacity—sufficient for 288-fiber trunk assemblies with service loop slack, or mixed copper/fiber infrastructure in converged network cores.
Deploy this fitting in data center row-based architectures where fiber pathways must navigate around hot-aisle containment panels, CRAC unit plenums, or structural columns. The 45° angle requires less ceiling height than 90° elbows, making it suitable for retrofits in facilities with limited overhead clearance between the finished ceiling and slab deck. NEBS Level 3 qualification under Telcordia GR-63-CORE confirms the fitting maintains pathway integrity through Zone 4 seismic events (1.5g peak acceleration) and -40°C to +65°C thermal cycling—critical for carrier CO installations where equipment ride-through is contractually mandated. Telecom construction inspectors recognize UL 2024A certification as proof the assembled pathway won't propagate flame beyond the point of ignition, satisfying NEC Article 770 requirements for optical fiber cables in plenums and risers.
The LSZH material specification addresses jurisdictions (EU, APAC transportation hubs, US federal secure facilities) where halogenated flame retardants are restricted or where toxic-gas exposure would delay evacuation from enclosed technical spaces. Unlike PVC-based raceways that release hydrochloric acid when burning, this polycarbonate/ABS blend produces lower smoke density and eliminates corrosive combustion products that damage adjacent electronics. Single-pack quantity suits project-specific corner counts without bulk overstock.
