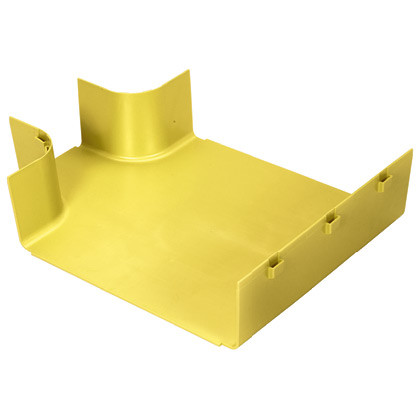

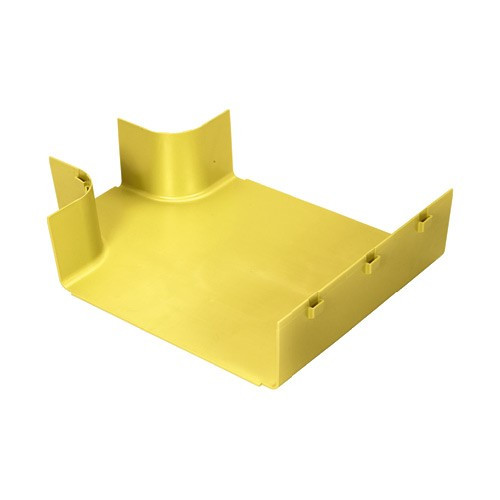

Panduit FRT12X4W4LYL FiberRunner Horizontal T-Splice Fitting

The Panduit FRT12X4W4LYL creates a 90° horizontal branch in 12x4 FiberRunner pathways, stepping down to a 4x4 outlet for fiber distribution zones in telecom central offices and data centers. When your backbone run needs to feed a perpendicular equipment row or branch to a cross-connect area, this polycarbonate/ABS fitting maintains protected pathways without forcing technicians to break containment or improvise exposed drops. Yellow high-visibility construction speeds moves-adds-changes by making the pathway immediately recognizable during service calls. UL 2024A listed for fiber optic cable routing assemblies and NEBS Level 3 tested per Telcordia GR-63-CORE.

Key Features

• 12x4 main run transitions to 4x4 horizontal branch at 90° — maintains pathway protection through distribution splits
• Polycarbonate/ABS construction — impact-resistant housing protects fiber through temperature cycling and equipment vibration
• UL 2024A listed for fiber optic cable routing assemblies — meets fire and mechanical safety standards for plenum and non-plenum installations
• NEBS Level 3 tested to Telcordia GR-63-CORE — qualifies for central office deployments requiring earthquake, thermal shock, and EMC compliance
• Yellow high-visibility color — instant pathway identification during troubleshooting and future fiber adds
• Integrates with FiberRunner ecosystem — accepts vertical tees, three-sided trumpets, corrugated conduit transitions, and distribution splices
• RoHS compliant — meets EU hazardous substance restrictions for multinational deployments

Fiber infrastructure in telecom facilities and data centers demands structured pathways that protect bend radius while allowing technicians to trace routes visually during maintenance. The FRT12X4W4LYL solves the common problem of branching a 12x4 backbone pathway to feed equipment rows, patch panels, or splice enclosures at right angles without dropping into ladder rack or exposing cable. The fitting's 4x4 outlet provides sufficient capacity for typical floor distribution — 144-288 fibers in high-density ribbon cable, or mixed loose-tube and breakout assemblies — while the stepped-down size signals the transition from backbone to branch. Polycarbonate/ABS construction survives the thermal cycling of HVAC failures and the mechanical stress of adjacent equipment installation without cracking. The 17.61-inch overall length and 12.96-inch width provide generous internal radius for 900µm tight-buffered and 2mm-3mm breakout cables, eliminating kink points that cause insertion loss or long-term fiber fatigue. Yellow coloring is standard in many carrier facilities for single-mode pathways, making this fitting immediately recognizable during after-hours troubleshooting when a technician needs to identify the route from a failed circuit back to the main distribution frame.

Installation pairs with Panduit's FiberRunner mounting hardware and requires no specialized tools beyond standard fasteners for the facility's overhead support structure. The fitting accepts FiberRunner 12x4 sections on the main run and FiberRunner 4x4 sections on the branch outlet, with snap-together joints that allow disassembly for cable additions without dismantling entire pathway runs. Field technicians appreciate the ability to remove a single fitting to add a new fiber bundle, then reassemble the pathway in minutes rather than hours of conduit threading. The design accommodates optional distribution splice trays inside the fitting body when the branch point coincides with a permanent splice location, consolidating two infrastructure functions into one physical point and reducing the number of discrete enclosures mounted overhead. For facilities requiring seismic bracing, the UL 2024A listing and NEBS Level 3 qualification confirm the fitting has passed shake-table testing and can be incorporated into braced overhead pathways without voiding compliance. Data center managers building or expanding structured cabling systems will recognize this as the standard solution for creating horizontal branches in raised-floor or overhead ladder environments where exposed fiber is unacceptable and future capacity planning requires visible, accessible pathways.

Supplied as a single fitting. The UL 2024A listing covers both plenum and non-plenum applications, though the specific flame rating depends on the installation environment and local AHJ interpretation — consult your jurisdiction's electrical inspector when planning plenum pathway installations. The RoHS compliance allows use in EU-regulated facilities and simplifies procurement for multinational carriers managing standardized bill-of-materials across regions. This fitting is engineered specifically for the FiberRunner 12x4 system — verify your existing pathway sections are Panduit FiberRunner 12x4 profile before ordering, as the snap-fit joints are not compatible with generic cable tray or third-party raceway systems.
