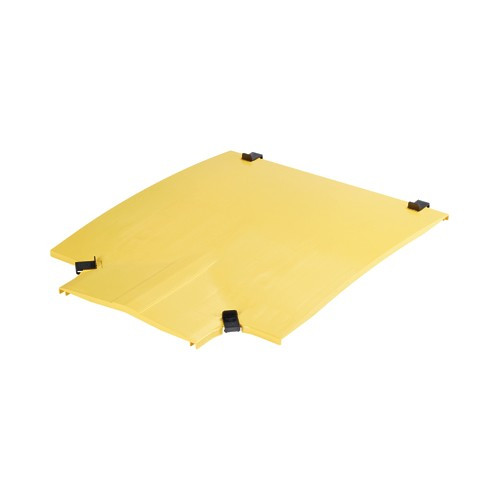

Panduit FRTCV24W12LYL FiberRunner 24x4 Horizontal T-Fitting Cover

The Panduit FRTCV24W12LYL horizontal T-fitting cover closes overhead fiber pathway intersections in the FiberRunner 24x4 system while preserving full-length access for adds, moves, and changes. When your cable plan calls for perpendicular drops from a main horizontal run—feeding equipment rows, cross-aisle bridges, or zone distribution points—this snap-on cover maintains bend-radius protection through the turn and eliminates the cable spill and dust ingress that open fittings invite. Polycarbonate/ABS construction delivers impact resistance and dimensional stability across the 41°F to 149°F operating range typical of raised-floor datacenters and central-office cable vaults, and the high-visibility yellow finish supports color-coded pathway identification in multi-tenant or segmented network environments.

Key Features

• 24 × 4 in cross-section compatibility with FiberRunner horizontal trunking and fittings
• Tool-free snap-on installation and removal for rapid pathway reconfiguration
• Full-length hinged access opening—no need to remove adjacent covers during mid-span work
• Polycarbonate/ABS blend resists cracking under repeated open/close cycles and accidental impact
• High-visibility yellow finish for at-a-glance pathway tracing and safety demarcation
• UL Listed to Standard 2024A (Optical Fiber Cable Raceway) and Telcordia GR-63-CORE Level 3 earthquake/transport testing
• RoHS compliant—safe for disposal in jurisdictions with electronic-waste restrictions

Pathway design for T-intersections. Horizontal T-fittings solve the geometry problem when a perpendicular run meets your main trunk at a right angle—common at the head of server rows, cross-connects between hot and cold aisles, or vertical riser drops into overhead distribution. The FRTCV24W12LYL cover maintains a smooth, enclosed profile across the entire intersection, preventing cable sag into the void and keeping dust, debris, and accidental contact out of the bend zone. The 30.14 in overall length spans the full width of the 24 in pathway plus the fitting's integral flanges, ensuring edge-to-edge coverage without gaps. Installers appreciate that the cover installs without fasteners—alignment tabs and spring clips hold it in place during normal service, yet it lifts free in seconds when you need to add a new strand or trace a fault.

Material and compliance. Panduit engineers the FiberRunner cover family from a polycarbonate/ABS alloy that balances rigidity (the cover won't sag between support points) with enough flex to absorb the installation snap and the occasional tool drop without shattering. The 1.69 in overall height provides clearance for typical LC/SC patch-cord stacks and slack-storage loops while keeping the assembly's profile low enough to fit standard 12 in raised-floor-to-ceiling plenums. UL 2024A listing confirms the assembly meets flame-spread and smoke-generation limits for air-handling spaces, and Telcordia GR-63-CORE Level 3 certification means the fitting has survived the zone-4-earthquake shake table and won't shed fragments that could damage fiber ends during a seismic event. RoHS compliance eliminates lead, mercury, and hexavalent chromium, simplifying end-of-life recycling and ensuring you won't trigger a failed site audit in California, the EU, or other restricted markets.

Color-coded pathway management. The bright safety yellow finish serves two roles: it makes the FiberRunner pathway visible against dark ceiling grids or black overhead cable trays (reducing the chance a lift-truck mast or rolling ladder will snag it), and it supports segmented color-coding schemes in multi-tenant colos or defense installations where different pathway colors denote classification levels or customer domains. Yellow is a common choice for non-redundant commercial fiber or for caution zones near high-voltage DC bus bars. When combined with other FiberRunner cover colors in the same installation, the result is an at-a-glance visual map that speeds troubleshooting and prevents the "wrong pathway" errors that lead to accidental outages during maintenance.

The Panduit FRTCV24W12LYL is the specified cover for horizontal T-intersections in 24x4 FiberRunner backbone installations—data centers needing right-angle drops to equipment rows, telecom COs distributing fiber from entrance facilities to frame rooms, and campus network vaults linking building-to-building trunks with floor-distribution verticals. Its tool-free access, impact-resistant construction, and UL/Telcordia dual certification make it the standard choice for installations where pathway reconfiguration frequency, seismic resilience, and plenum-rating compliance are all hard requirements.
