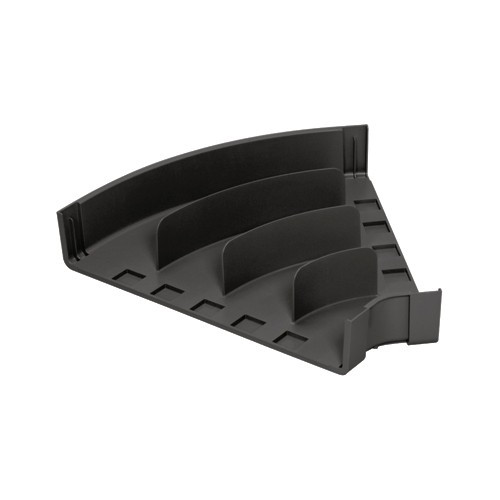

Panduit FRH4524X4LBL FiberRunner™ 24x4 Horizontal Fitting

The Panduit FRH4524X4LBL horizontal fitting creates a 45° horizontal bend in FiberRunner 24x4 pathway systems, enabling gradual direction changes that protect fiber-optic cables from exceeding minimum bend radius during datacenter and central-office installations. Constructed from LSZH-rated polycarbonate/ABS and certified to UL 2024A for optical cable routing assemblies, this fitting meets the fire-safety and seismic requirements of Telcordia GR-63-CORE Level 3 (NEBS Zone 4) — the compliance stack required for carrier-grade telecom facilities and ANSI/TIA-942 Tier III/IV datacenters.

Key Features

• 45° horizontal bend geometry maintains fiber-optic minimum bend radius during pathway direction changes
• LSZH polycarbonate/ABS construction for plenum and riser applications under international fire codes
• UL 2024A certification for optical fiber cable routing assemblies up to 2024A current rating
• Telcordia GR-63-CORE Level 3 compliance for earthquake, vibration, and environmental stress (NEBS Zone 4)
• Snap-together attachment to FiberRunner 24x4 channel and fittings — no tools required for assembly
• 28.2" × 24.58" footprint aligns with standard 24" raised-floor grid modules
• RoHS compliant for European datacenter deployments and green-building certifications

The polycarbonate/ABS blend delivers the impact resistance and dimensional stability required for overhead and under-floor pathway installations subjected to thermal cycling, mechanical stress, and long-term UV exposure in facilities with skylights or perimeter windows. LSZH (Low Smoke Zero Halogen) compounding eliminates chlorinated flame retardants, ensuring the material produces minimal smoke opacity and zero halogen acids during combustion — a critical safety requirement for enclosed return-air plenums, European installations governed by CPR (Construction Products Regulation), and any facility where evacuation routes pass through cable-dense areas. The UL 2024A certification specifically addresses optical fiber cable routing assemblies, covering flammability, cable support load capacity, and through-penetration firestopping — distinct from general-purpose raceway certifications that don't account for the unique mechanical properties and fire behavior of fiber-optic cables. Telcordia GR-63-CORE Level 3 testing subjects the pathway to seismic vibration profiles, temperature cycling (-40°C to +65°C), and humidity exposure that simulate 20-year service life in Network Equipment Building System (NEBS) Zone 4 environments, ensuring the fitting maintains structural integrity and cable retention during the seismic events and HVAC failures that define carrier-grade reliability standards.

Deploy this fitting wherever your FiberRunner 24x4 pathway requires a horizontal direction change — perimeter routing around datacenter walls, row-to-row crossovers above hot aisles, transitions from main distribution areas (MDAs) to horizontal distribution areas (HDAs), or meet-me room interconnections in carrier hotels. The 45° angle provides a gentler bend than 90° elbows, critical when routing high-fiber-count trunk cables or ribbon cable assemblies where the outermost fibers in a bend experience the highest strain; a 45° geometry effectively doubles the bend radius compared to a right-angle turn in the same linear distance, keeping fiber strain below the 0.2% threshold that triggers microbending attenuation. The snap-together attachment method integrates with FiberRunner 24x4 straight sections and other fittings without fasteners, enabling rapid pathway layout changes during phased datacenter builds or tenant churn in colocation facilities. The 28.2" width accommodates dual 24x4 channels side-by-side for segregated pathway routing (e.g., separating multimode and singlemode trunks, or isolating customer-owned fiber from provider-owned fiber in multi-tenant environments), while the 4.48" height provides the vertical clearance required to route pre-terminated trunk assemblies with factory-installed connectors and breakout boots that exceed the cable diameter by 3-4×.

The UL 2024A + Telcordia GR-63-CORE + LSZH certification triad addresses the three distinct approval gates you'll face during datacenter inspections: local AHJs (Authorities Having Jurisdiction) enforcing NEC Article 770 optical fiber cable requirements rely on UL 2024A for product compliance; carrier and hyperscale design standards mandate Telcordia GR-63-CORE for equipment and pathway seismic qualification; and European projects or U.S. green-building certifications (LEED v4.1, BREEAM) require LSZH materials for Indoor Air Quality credits and fire-safety documentation. Standardizing on Panduit FiberRunner across your facility simplifies future expansions — the 24x4 system's modular architecture lets you add vertical risers, horizontal branches, and cabinet drop-downs without re-engineering pathways or sourcing mixed-vendor components, and the black finish maintains visual consistency across the cable infrastructure that's increasingly visible in open-ceiling datacenter designs and glass-walled network operation centers.
