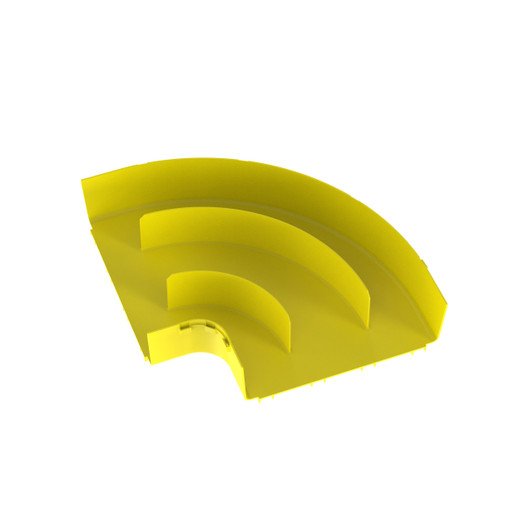

Panduit FRRA12X4LYL FiberRunner 12x4 Horizontal 90-Degree Elbow

Overview

The Panduit FRRA12X4LYL is a horizontal 90-degree elbow fitting for the Panduit FiberRunner 12x4 system, designed to route fiber optic cable runs around corners in data centers and central telecommunications offices. Where a straight fiber routing system run meets a perpendicular wall or cabinet row, this fitting executes the turn without stressing the cable — preserving bend radius and signal integrity in the process. The polycarbonate/ABS construction keeps the unit lightweight while delivering the rigidity expected in a structured cabling environment. If you are building out a 12x4 FiberRunner pathway and need a clean horizontal direction change, this is the correct fitting.

Key Features

• 90-Degree Horizontal Turn: Forms a precise 90-degree curve in the horizontal plane, so fiber routed along a cable tray or overhead pathway can turn a corner without improvised bending. Maintaining proper bend radius is not optional with fiber — exceeding it causes attenuation and, in single-mode applications, potential permanent damage.
• FiberRunner 12x4 System Fit: Engineered specifically for the FiberRunner 12x4 system, which means mechanical alignment at the joint is predictable and tool-free. Mismatched fittings introduce gaps that catch cable jackets and complicate future adds and moves.
• Polycarbonate/ABS Construction: The polycarbonate/ABS blend delivers impact resistance without the brittleness of straight polycarbonate, relevant in active data center environments where ladder racks and cable bundles create incidental contact. Panels and fittings in high-density rows take more abuse than most installers plan for.
• Yellow Color Coding: The yellow finish matches the FiberRunner 12x4 yellow family, supporting color-coded cable management schemes used to separate fiber from copper or to distinguish network segments at a glance. In a dense IDF or MDA, that visual separation matters during maintenance.
• 18.07-Inch Overall Length: The fitting spans 18.07 inches (107.2 mm height), providing a generous turn radius rather than a tight 90-degree corner — this directly supports compliant bend radius for both OM3/OM4 multimode and OS2 single-mode fiber, where minimum bend radius requirements differ.
• RoHS Compliant: RoHS compliance is required for many enterprise and government procurement programs. It is verified here, so this fitting does not create a compliance gap in an otherwise RoHS-clean installation.
• UL Listed to 2024A: UL certification for optical cable guide assemblies to the 2024A standard is the benchmark for structured fiber routing products in North American commercial construction. Specifying UL-listed pathway components is standard practice for any project subject to NEC or local fire code inspection.
• Telcordia GR-63-CORE and NEBS Level 3: Telcordia GR-63-CORE and NEBS Level 3 compliance covers seismic, thermal, and environmental stress testing — the standard for carrier and co-location facilities. If you are deploying in a carrier hotel, central office, or enterprise co-lo with NEBS requirements, this fitting meets the bar without a variance request.

Integration and Compatibility

The FRRA12X4LYL is designed for use with the FiberRunner 12x4 system exclusively. It does not mate with FiberRunner 6x4, 4x4, or 2x2 system components — confirm your installed pathway size before ordering. The fitting ships as a single unit (package quantity: 1), so order quantity should match the number of 90-degree horizontal turns in your pathway layout. Competitive cross-reference: replaces FGS-MH9E-F in equivalent installations where the FiberRunner system is the specified pathway.

Frequently Asked Questions

Q: What FiberRunner system size does the FRRA12X4LYL fit?

A: The FRRA12X4LYL is designed exclusively for the FiberRunner 12x4 system. It will not mate with other FiberRunner sizes such as 6x4 or 4x4.

Q: Is the FRRA12X4LYL RoHS compliant?

A: Yes. The FRRA12X4LYL is RoHS compliant, making it suitable for procurement programs and projects that require hazardous substance restrictions.

Q: Does the FRRA12X4LYL meet NEBS requirements?

A: Yes. It conforms to Telcordia GR-63-CORE and Network Equipment Building Systems (NEBS) Level 3, which is the standard for carrier-grade and co-location facility deployments.

Q: Is the FRRA12X4LYL UL listed?

A: Yes. It is UL listed for optical cable guide assemblies to the 2024A standard, meeting North American commercial construction and NEC inspection requirements.

Q: How many units come in a package?

A: The FRRA12X4LYL ships as a single unit (package quantity: 1). Order the number of units matching the 90-degree horizontal turns in your fiber pathway layout.

Q: What is the competitive cross-reference for the FRRA12X4LYL?

A: The FRRA12X4LYL cross-references to FGS-MH9E-F as a competitive equivalent for horizontal 90-degree elbow fittings in comparable fiber routing systems.

James Everett

The FRRA12X4LYL is the fitting that finishes a FiberRunner 12x4 layout — the 90-degree horizontal elbow that lets you commit to a structured pathway instead of improvising a turn with tie-wraps and good intentions. At 18.07 inches in overall length, this fitting gives the cable a gradual, compliant arc rather than the tight corner that shows up in rushed installs and causes attenuation problems six months later.

Technical Highlights:

• NEBS Level 3 / GR-63-CORE: Seismic and environmental compliance built into the fitting — not an afterthought. Required for carrier co-lo and central office bids; having it on the spec sheet means no variance paperwork at inspection.
• UL 2024A Listed: Optical cable guide assembly certification to 2024A is the standard AHJ inspectors look for on commercial fiber pathway installs in North America. Spec it, document it, move on.
• Polycarbonate/ABS Construction: Impact-resistant enough to survive a busy IDF during a weekend migration without cracking, while staying light enough that an overhead tray section does not overload the support structure.

Deployment Considerations:

• Confirm the installed FiberRunner size is 12x4 before ordering — this fitting does not cross-mate with other FiberRunner channel sizes, and returning fittings mid-installation is a project schedule problem.
• Package quantity is 1 unit. On larger data center builds with multiple direction changes, count every horizontal 90-degree turn in the pathway drawing before submitting the order to avoid a second purchase order for two missing elbows.

The FRRA12X4LYL is the right call on any carrier-grade or enterprise core data center build where the fiber pathway is FiberRunner 12x4 and NEBS Level 3 compliance is on the acceptance checklist — not a product to swap for a generic elbow on a spec-controlled project.
