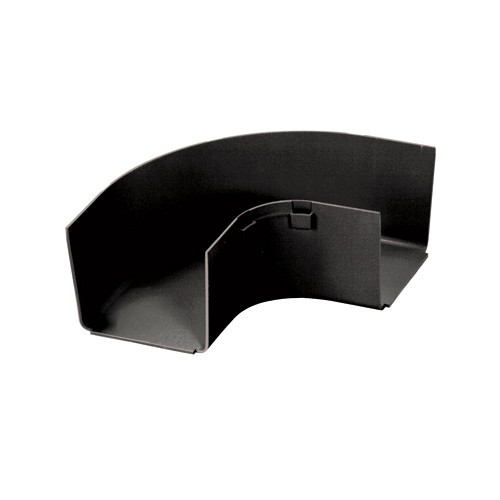

Panduit FRRA4X4LBL FiberRunner 4x4 Horizontal Right-Angle Bend Fitting

Overview

The Panduit FRRA4X4LBL is a horizontal 90-degree bend fitting designed exclusively for the Panduit FiberRunner™ 4x4 raceway system. In data centers and central telecom offices where fiber runs need to change direction without exceeding minimum bend radius, this fitting is the engineered answer — not a workaround. The internal separation walls guide individual cables cleanly through the turn, eliminating the bundle compression and potential signal loss that occur when fiber is forced around an unsupported corner. If you are building or extending a fiber routing system in a structured cabling environment, this fitting is the component that keeps your horizontal runs compliant and organized at every direction change.

Key Features

• Horizontal 90-Degree Geometry: Executes a precise right-angle turn in the horizontal plane, maintaining consistent raceway alignment between straight FiberRunner 4x4 runs. This eliminates ad-hoc bends that exceed fiber's minimum bend radius and create latent signal degradation — a real concern on dense multi-fiber backbone segments.
• Internal Separation Walls: Dividers inside the bend guide individual cable groups around the turn independently. In a 4x4 raceway carrying multiple fiber drops to different racks, this prevents bundle-on-bundle contact that causes abrasion over years of vibration from CRAC units or foot traffic.
• Polycarbonate/ABS Construction: The blended polymer body handles the physical demands of telecom rooms — resistance to the temperature cycling between raised-floor cold aisles and overhead hot zones — without the brittleness of pure ABS or the cost of metal. It also cuts cleanly without burring if field trimming is ever needed.
• RoHS Compliant: Meets RoHS substance restrictions, which matters when deploying into facilities with EU environmental compliance requirements or enterprise sustainability mandates that extend to structured cabling components.
• UL-Listed Fiber Optic Cable Routing Assembly (to 2024A): UL certification to NEC 2024 Article A covers fiber routing assemblies in commercial buildings — this fitting carries that listing, so your cable pathway documentation holds up during AHJ inspection without exception requests.
• Telcordia GR-63-CORE and NEBS Level 3 Tested: NEBS Level 3 qualification means this fitting has been tested against seismic, thermal, and airflow standards required by telecom carriers. If you are deploying into a carrier-grade central office or a co-location facility with NEBS requirements, the FRRA4X4LBL satisfies the pathway hardware requirement without a separate compliance review.
• Black LSZH-Compatible Finish: The black colorway matches standard FiberRunner 4x4 system components for a consistent appearance in open-ceiling or visible-raceway installations. The low-halogen construction choice aligns with environments where LSZH cable jackets are specified for plenum or enclosed spaces.
• Compact Footprint — 9.21 in. × 4.22 in.: At under 10 inches in length and 4.22 inches tall, this fitting fits within the spatial constraints of typical overhead ladder rack bays and wall-mounted cable management sections without requiring additional clearance brackets.

Integration & Compatibility

The FRRA4X4LBL is engineered specifically for the FiberRunner 4x4 cable management system. It connects directly to 4x4 FiberRunner straight sections, maintaining the raceway's internal dimensions and cover-attachment geometry throughout the bend. It is not cross-compatible with FiberRunner 2x2, 4x2, or other channel sizes — verify your installed raceway size before ordering. Carton quantity is 5 units; order planning for larger cable management projects should account for the minimum order multiple when estimating fitting counts per floor or per row.

What's in the Box

• 1x Panduit FRRA4X4LBL FiberRunner 4x4 Horizontal Right-Angle Bend Fitting (black)

Frequently Asked Questions

Q: What raceway system is the FRRA4X4LBL designed for?

A: The FRRA4X4LBL is designed exclusively for the Panduit FiberRunner 4x4 system. It is not compatible with FiberRunner channels of other dimensions — confirm your raceway size before ordering.

Q: Is the FRRA4X4LBL NEBS compliant?

A: Yes. The FRRA4X4LBL has been tested to Telcordia GR-63-CORE and meets Network Equipment Building Systems (NEBS) Level 3 requirements, making it suitable for carrier-grade central office and co-location environments where NEBS compliance is specified for cable pathway hardware.

Q: Is the FRRA4X4LBL RoHS compliant?

A: Yes. The FRRA4X4LBL is RoHS compliant, meeting EU substance restrictions on hazardous materials in electrical and electronic equipment.

Q: What are the overall dimensions of the FRRA4X4LBL?

A: The fitting measures 9.21 inches in length and 4.22 inches (107.2 mm) in height.

Q: How many units come in a carton, and what is the package quantity?

A: The FRRA4X4LBL ships individually (package quantity of 1). The standard carton contains 5 units.

Q: What is the FRRA4X4LBL made of?

A: The fitting is constructed from a Polycarbonate/ABS blended polymer in black, providing impact resistance and dimensional stability in data center and telecom room environments.

Jerry Tildsen

The FRRA4X4LBL is the detail that separates a compliant fiber pathway from a technically-functional-but-uninspectable one. When I see data center cable trays with fiber bundles bent around a corner unsupported, that is deferred risk — the attenuation shows up in OTDR traces six months later after vibration and thermal cycling work on the glass. This fitting maintains the FiberRunner 4x4 system's internal geometry through a full 90-degree horizontal turn, and the internal separation walls mean your cable groups arrive at the other side organized, not compressed.

Technical Highlights:

• NEBS Level 3 / Telcordia GR-63-CORE: Carrier-grade seismic and thermal qualification — if your AHJ or facility owner requires NEBS documentation for cable pathway hardware, the FRRA4X4LBL covers that requirement without a separate compliance submission.
• UL Listed to NEC 2024A: The UL listing for fiber optic cable routing assemblies to the current NEC cycle means this fitting appears in your as-built documentation as a listed component, not an unlisted field modification.
• Polycarbonate/ABS Body — 9.21 in. × 4.22 in.: Compact enough to fit standard overhead bay spacing; the blended polymer handles the mechanical stress of repeated cable additions without the crack propagation risk of single-material ABS under sustained load.

Deployment Considerations:

• Verify your FiberRunner channel size before ordering — the FRRA4X4LBL is dimensioned for 4x4 only. Installing into a 2x2 or 4x2 run requires the appropriately-sized variant; the cover retention tabs will not align cross-size.
• Carton quantity is 5 units. For large projects, count your direction changes per row and per aisle before requisitioning — under-ordering fitting quantities is the most common cause of mid-installation delays on structured cabling builds.

The FRRA4X4LBL is the right specification for carrier-class central offices, Tier II/III co-location deployments, and enterprise MDF/IDF rooms where fiber routing documentation must survive both AHJ inspection and NEBS compliance review.
