Panduit FRRA12X4LBL FiberRunner 12x4 Horizontal Right-Angle Elbow Fitting

Overview

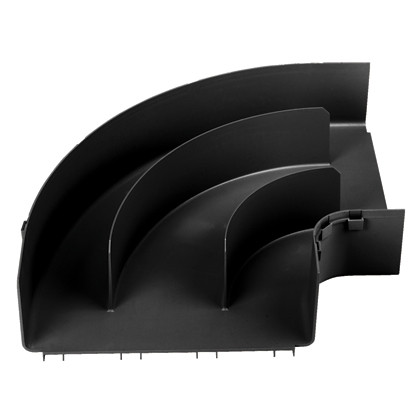

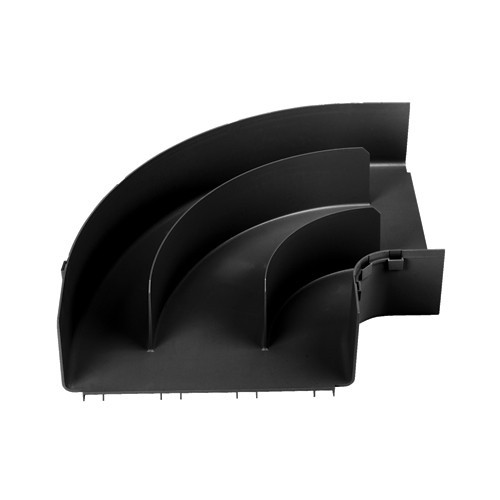

The Panduit FRRA12X4LBL is a horizontal 90-degree right-angle elbow fitting purpose-built for the Panduit FiberRunner 12x4 system. It creates a controlled, 90° horizontal turn between straight FiberRunner sections — the kind of bend you need when a fiber run hits a corner in a raised-floor data center aisle or a central office telecom bay. Internal separation walls are built into the fitting to keep fiber organized through the turn, preventing cable tangling and maintaining minimum bend radius on individual strands through the corner.

Constructed from a polycarbonate/ABS blend and finished in black, the FRRA12X4LBL is rated to Telcordia GR-63-CORE seismic and NEBS Level 3 environmental standards — qualifications that matter if you're deploying in a carrier-class CO or a data center with seismic zone requirements. RoHS compliance and UL certification for optical fiber cable guide assemblies (to 2024A) round out the compliance stack.

This is a single-unit sale (package quantity: 1), so plan your bill of materials carefully for multi-run or large-floor deployments across cable management systems where corner counts add up quickly.

Key Features

• 90° Horizontal Turn: Forms a precise right-angle horizontal bend in FiberRunner 12x4 straight runs — eliminates the improvised zip-tie bundles or unsupported bend loops that cause long-term fiber damage at corners. The geometry is fixed and repeatable, which matters when multiple techs are building out a large floor.
• Internal Separation Walls: Dividers inside the elbow route individual fiber paths through the bend independently. In a high-density run carrying dozens of fiber strands, this prevents cable-on-cable pressure at the tightest point of the curve — the most common source of insertion loss creep in improperly managed horizontal turns.
• Polycarbonate/ABS Construction: This material blend is impact-resistant and dimensionally stable under data center temperature cycling. Unlike lighter PVC fittings, polycarbonate/ABS holds its form under load — relevant when cable fill is at or near system capacity.
• NEBS Level 3 / Telcordia GR-63-CORE Compliance: These standards govern seismic performance and environmental stress requirements for network equipment in North American carrier facilities. If your project requires NEBS-compliant infrastructure — common in telco central offices and co-location facilities — this fitting meets the bar without requiring an engineering waiver.
• UL Listed for Optical Fiber Cable Guide Assemblies (to 2024A): UL certification to this standard confirms the fitting has been tested as part of a complete optical fiber routing system, not just as an isolated component. That distinction matters for AHJ inspections and insurance underwriting in commercial installations.
• RoHS Compliant: Meets EU Restriction of Hazardous Substances requirements — required for any project with EU export requirements or sustainability procurement mandates, and increasingly expected even in domestic enterprise and federal contracts.
• Overall Length 18.07 in / Height 4.22 in: At just over 18 inches long and 4.22 inches tall, the FRRA12X4LBL has a defined footprint that dictates the minimum clear space needed at each corner. Factor this into rack row spacing and under-floor clearance planning — an 18-inch elbow needs room to land cleanly on both legs.
• Black Finish: Matches standard black FiberRunner 12x4 system components for visual consistency in installations where color coding by system type or zone is part of the cable management standard.

Integration & Compatibility

The FRRA12X4LBL is designed exclusively for the Panduit FiberRunner 12x4 system. It does not adapt to other trough widths or depths — verify your installed FiberRunner channel size before ordering. The 12x4 designation refers to the nominal channel width (12 units) and depth (4 units); mixing fittings from other FiberRunner sizes (e.g., 4x4, 6x4) will result in incompatible flange geometry and gaps at joints.

The system is listed as suitable for data centers and central office telecommunications facilities. It installs inline with straight FiberRunner sections using the standard snap-lock or screw-retention hardware appropriate to your installation type — consult the FiberRunner 12x4 installation guide for torque specs and support spacing at fittings. The competitor cross-reference for this fitting is FGSB-MH9E-F, which can be used when sourcing replacement or supplemental quantities from alternate supply channels.

Frequently Asked Questions

Q: Is the FRRA12X4LBL compatible with FiberRunner sizes other than 12x4?

A: No. The FRRA12X4LBL is specified for use with the FiberRunner 12x4 system only. Fittings from other FiberRunner channel sizes have different flange dimensions and will not mate correctly with 12x4 straight sections.

Q: What compliance standards does the FRRA12X4LBL meet?

A: The FRRA12X4LBL is RoHS compliant, UL listed for optical fiber cable guide assemblies to the 2024A standard, and meets Telcordia GR-63-CORE and NEBS Level 3 seismic and environmental test requirements.

Q: How many units come in a package?

A: The FRRA12X4LBL is sold individually — package quantity is 1. Plan your bill of materials accordingly for projects with multiple horizontal 90° bends.

Q: What material is the FRRA12X4LBL made from?

A: It is constructed from a polycarbonate/ABS blend, which provides impact resistance and dimensional stability under the temperature cycling typical of active data center and central office environments.

Q: What are the overall dimensions of the FRRA12X4LBL?

A: The fitting is 18.07 inches in overall length and 4.22 inches in overall height (107.2 mm). Plan for adequate clear space at each corner in your cable pathway design to accommodate these dimensions on both legs of the elbow.

Q: What is the competitor cross-reference for the FRRA12X4LBL?

A: The listed competitor cross-reference part number is FGSB-MH9E-F. This can assist with sourcing comparisons or replacement identification in existing non-Panduit installations being converted to FiberRunner.

Marty Allison

The FRRA12X4LBL is the horizontal 90° elbow that keeps a FiberRunner 12x4 run turning cleanly at corners — and it's one of those fittings people underestimate until they're trying to troubleshoot insertion loss in a dense CO rack row six months after commissioning. The internal separation walls are the detail that earns its price: at 18.07 inches of elbow geometry, you have real linear distance where unseparated fiber strands can press against each other through the bend, and that pressure compounds over fill cycles.

Technical Highlights:

• NEBS Level 3 / GR-63-CORE Rating: This isn't a checkbox for most data center retrofits, but if you're deploying in a carrier-class central office or a colo with seismic zone requirements, specifying a fitting that hasn't been tested to this standard creates a compliance gap that surfaces at audit time — not at install time.
• Polycarbonate/ABS Material: The material choice matters over the lifecycle of the installation. PVC fittings can creep under sustained cable weight in warm environments; polycarbonate/ABS maintains dimensional integrity, which keeps the flange-to-flange joint tight and preserves the bend radius geometry even after repeated cable additions.
• UL Listing to 2024A for Optical Fiber Cable Guide Assemblies: This is a system-level listing, not just a component mark. It means the fitting has been evaluated as part of the complete FiberRunner pathway, which is the right basis for AHJ approval in commercial permit-required installations.

Deployment Considerations:

• The 18.07-inch overall length means each elbow installation requires approximately 18 inches of clear horizontal run on both legs to land flush — in tight under-floor or overhead ladder tray environments, verify clearance before committing to FiberRunner 12x4 routing at that corner versus a smaller channel size.
• Package quantity is 1 per order. On a large data hall build-out where horizontal corners number in the dozens, calculate your elbow count from the routing drawings before placing the order — per-unit pricing at this scale makes under-ordering a real cost event.

The FRRA12X4LBL is the right specification for carrier-class central offices and enterprise data centers where the FiberRunner 12x4 system is the installed standard and where NEBS Level 3 compliance is a contractual or AHJ requirement — not for general-purpose office wiring closets where a smaller, lighter trough system would be more practical and significantly less expensive.
