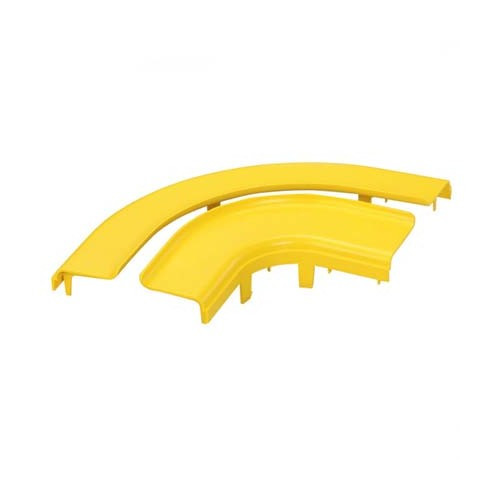

Panduit FRRASC4LYL 4x4 Right-Angle LSZH Cover Yellow

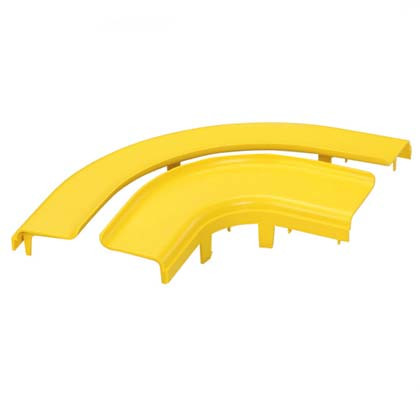

Panduit FRRASC4LYL FiberRunner 4x4 Horizontal Right-Angle Cover

The Panduit FRRASC4LYL horizontal right-angle cover closes 90-degree turns in FiberRunner 4x4 fiber pathways while maintaining tool-free access for adds, moves, and changes. Built from LSZH-rated polycarbonate/ABS in safety yellow, this cover meets UL 2024A optical-cable raceway certification and Telcordia GR-63-CORE seismic requirements — making it spec-compliant for hyperscale data centers, carrier hotels, and NEBS-rated telecom facilities. The snap-on design eliminates hardware, speeds installation, and allows field techs to lift the cover without disturbing adjacent pathway sections when pulling new fiber trunk assemblies or troubleshooting a specific strand.

Key Features

• LSZH polycarbonate/ABS construction — produces minimal smoke and no halogen gas during fire exposure, meeting IBC plenum-equivalent safety thresholds for occupied data halls
• Tool-free snap-on installation — no screws or clips; cover lifts off in seconds forMACs without disrupting fiber slack loops stored inside the raceway
• UL 2024A certified optical cable raceway assembly — recognized component for NEC Article 770 fiber installations in commercial and industrial facilities
• Telcordia GR-63-CORE NEBS Level 3 compliant — withstands seismic zone 4 shake-table testing and thermal cycling per carrier central-office standards
• Safety yellow color — high-visibility identification for fiber pathways in mixed voice/data/power environments; reduces accidental cable strikes during overhead work
• 9.14" length covers standard 4x4 horizontal elbow fitting — maintains continuous raceway appearance with no exposed cable at corner transitions

Hyperscale and colocation data centers face two conflicting mandates: dense fiber routing and rapid cable access. Traditional rigid conduit or closed tray forces techs to disassemble entire runs when a single strand needs re-termination. FiberRunner 4x4 with snap-on covers solves this by creating a protected 4" × 4" channel with top-access lids that lift in place. The FRRASC4LYL specifically addresses horizontal 90-degree turns — the highest-risk point for fiber bend-radius violations and the most common access location during troubleshooting. By maintaining a 2.15" cover height and smooth interior, this elbow cover prevents cable pinch points and preserves the 1.2" minimum bend radius required by TIA-568 for OS2 singlemode fiber trunks rated beyond 10GBASE-LR.

The LSZH material specification is non-negotiable in occupied data halls and carrier hotels. Standard PVC raceways release hydrochloric acid gas during combustion — a corrosive byproduct that destroys active electronics racks even in rooms untouched by flame. LSZH polycarbonate/ABS produces less than 0.5% HCl by mass and smoke density under 150 per ASTM E662, allowing safe egress and protecting million-dollar switch fabrics during fire events. Yellow pigment provides instant visual differentiation from power conduit (orange) and copper pathways (black), reducing the risk of a facilities electrician accidentally drilling into a 400G backbone trunk during overhead lighting work. For 24/7 NOC environments, this color-coding is a safety control, not cosmetic preference.

Telcordia GR-63-CORE compliance means this cover has survived the same seismic and thermal abuse testing required for carrier-grade transmission equipment. Specifically, the assembly withstands Zone 4 earthquake simulation (1.5g horizontal acceleration), -40°C to +70°C thermal cycling, and 95% RH humidity exposure without cracking or losing dimensional stability. For telecom facilities in California, Japan, or other seismic regions, GR-63 NEBS Level 3 certification isn't optional — it's the baseline for equipment that must survive a major quake and keep 911 trunks operational. The snap-fit retention design has been shake-table verified to prevent covers from vibrating loose during seismic events, eliminating a failure mode that would expose fiber to physical damage when the building is already compromised.

Field installation is hardware-free: align the cover's side rails with the FiberRunner 4x4 elbow fitting's retention channels and press down until the integral clips snap into place. No screws means no tool requirements and no dropped hardware falling onto live server racks below. When you need access, lift from the front edge — the cover pivots on the rear retention channel and can be held open one-handed while you dress a new LC duplex jumper or re-route a failed trunk. Each carton includes 5 covers; for a typical row-to-row fiber backbone spanning 12 racks with two horizontal turns per row, you'll need 24 covers total (order 5 cartons). Pair with Panduit FRR4X4 4x4 raceway sections, FRHP4X4 horizontal tees, and FWH4 wall brackets to build a complete overhead fiber highway that meets NEC 770.113 support requirements and maintains continuous LSZH protection from patch panel to switch.
