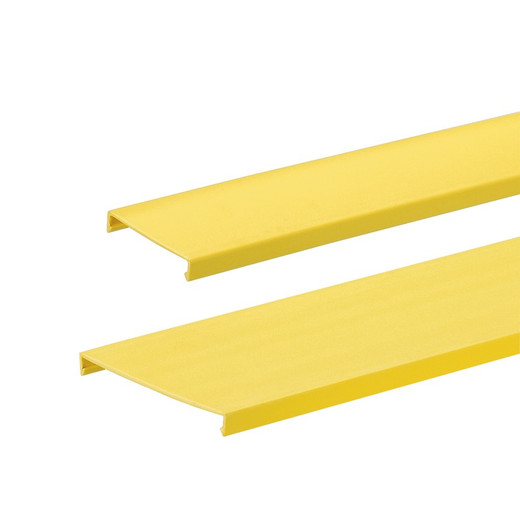

Panduit C4YL6 Fiber-Duct FiberRunner 4x4 Cable Routing Cover
The Panduit C4YL6 is a 6-foot PVC cover section for the Fiber-Duct FiberRunner 4x4 cable management system. Designed for data center and enterprise network installations, this yellow cover isolates and protects fiber optic and copper cable runs from distribution frames to active equipment. The 4.25-inch wide profile accommodates high-density bundle routing while maintaining bend-radius compliance for OM3/OM4 and Category 6A cabling. Yellow color coding enables instant visual identification of specific pathways—critical when multiple parallel runs serve different zones or VLANs in colocation or hyperscale environments.
Key Features
- 4x4 inch profile with 6-foot modular sections for flexible pathway layout
- UL 2024A listed and CSA certified for plenum and riser applications
- 94V-0 flammability rating meets strict fire-safety requirements for occupied spaces
- Yellow PVC construction for high-visibility pathway identification and color-coding schemes
- Snap-fit cover design integrates with Panduit S4X4,6NM base and E4X4,6 fittings
- RoHS compliant for environmentally conscious facility standards
This cover section pairs exclusively with Panduit's Fiber-Duct 4x4 base channels (S4X4,6NM) and corresponding elbows, tees, and mounting hardware (E4X4,6 series). The 0.37-inch low-profile cover snaps securely onto the base without tools, allowing fast reconfiguration as cable plant evolves. Six-foot sections minimize joint count on long horizontal runs—reducing both labor time and potential snag points during adds/moves/changes. The 4.25-inch internal width handles up to 48-strand distribution cables or mixed copper/fiber bundles serving edge switches and storage arrays. PVC construction resists impact and abrasion in high-traffic aisle environments while maintaining dimensional stability across typical data center temperature swings.
Yellow pathway designation is standard practice in multi-tenant facilities and enterprise campuses where logical segmentation (production, backup, out-of-band management) requires instant visual confirmation. The C4YL6 cover integrates into existing Panduit Fiber-Duct layouts without adapter brackets—critical when extending pathways into hot-aisle containment or overhead ladder-rack transitions. UL 2024A certification covers both cable tray and surface raceway classifications, so the same cover assembly meets code whether mounted to structural steel, cable tray, or zone-box enclosures. Each carton contains six 6-foot sections (36 linear feet), streamlining stock management for phased rollouts or maintenance spares.
Panduit Fiber-Duct systems are deployed across financial trading floors, healthcare imaging networks, and federal datacenter modernization projects where pathway segregation and inspection access are non-negotiable. The snap-cover design allows auditors and fiber techs to trace circuits without dismantling adjacent runs—reducing mean-time-to-repair when troubleshooting link loss or preparing for 400G upgrades. This yellow cover variant is also specified in retrofit projects where legacy conduit lacks capacity, providing a code-compliant surface pathway that preserves existing structural penetrations and fire-stop assemblies.
