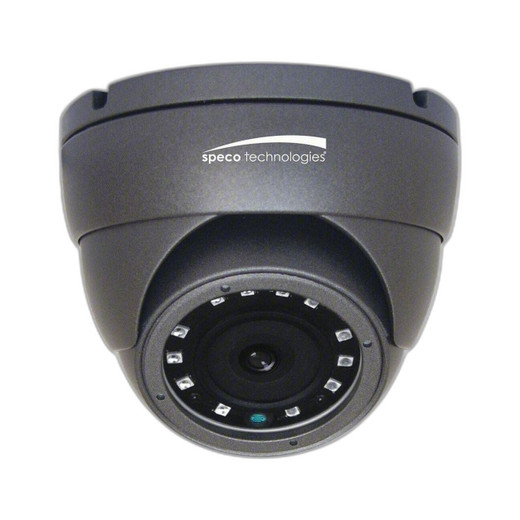

Speco Technologies VLDT4G 2MP HD-TVI Eyeball Camera
Overview
The Speco Technologies VLDT4G is a compact 2MP HD-TVI eyeball camera purpose-built for straightforward surveillance deployments where simplicity and reliability take priority over advanced analytics or networking complexity. This fixed turret camera operates exclusively on the HD-TVI protocol, delivering 1920×1080 resolution through a fixed 3.6mm lens. The VLDT4G ships with an included junction box—a labor-saving detail that reduces on-site wiring complexity during installation. The grey housing integrates visually into typical office, retail, and light outdoor environments, and the low-profile form factor means minimal visual intrusion on ceilings or walls.
Key Features
- 2MP (1920×1080) Resolution: Delivers sufficient detail for general area surveillance and incident verification in retail, office corridors, and entry-point monitoring—enough to identify individuals at normal distances without excessive storage overhead. The 2MP standard balances clarity with manageable file sizes across 24/7 recording scenarios.
- Fixed 3.6mm Lens: Provides a standard horizontal field of view optimized for mid-range indoor coverage (roughly 68–75° depending on sensor size). The fixed focal length means no field-of-view adjustment during commissioning—once you frame the shot, it stays framed. This simplifies high-volume rollouts where consistency across multiple cameras matters.
- HD-TVI Protocol: Transmits 1080p video over coaxial cable infrastructure (or hybrid twisted-pair), designed specifically for DVR-based systems. HD-TVI avoids the complexity and power requirements of IP networking, making it ideal for retrofits into existing analog or mixed HD-TVI head-end equipment. No IP address, no DHCP, no network configuration required.

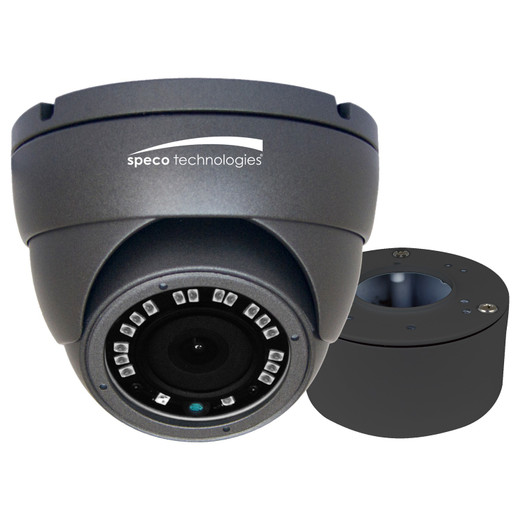

- Included Junction Box: Ships with a pre-wired terminal block, reducing assembly time and labor cost during installation. This detail cuts on-site troubleshooting and simplifies retrofit scenarios where cable runs are already established.
- Turret Form Factor: Compact eyeball design is less conspicuous than larger housings and mounts flush to ceilings or walls. The turret allows 90° pan adjustment for fine-tuning coverage angle after mounting, offering modest aiming flexibility without motorized pan/tilt complexity.
- Passive, Non-Networked Design: The VLDT4G has no on-camera analytics, no metadata extraction, no edge processing, and no IP connectivity. This simplicity reduces power consumption (important on long cable runs) and eliminates firmware update or cybersecurity patching overhead at the camera tier. Video analytics, if needed, must be performed by the DVR or an external VMS.
Optics and Coverage
The 3.6mm fixed lens is optimized for general-purpose indoor and light outdoor surveillance. At a typical 10–15 feet distance, the field of view captures a corridor, sales floor section, or office entry area in reasonable detail. Unlike varifocal lenses, there is no zoom ring or remote adjustment; the focal length is fixed at manufacture. This constraint simplifies inventory and commissioning but requires careful site assessment before purchase to confirm the fixed perspective suits your layout.
Imaging and Low-Light Performance
The VLDT4G captures 1920×1080 at standard HD-TVI frame rates. The eyeball form factor and fixed optics are tuned for spaces with adequate ambient or supplementary lighting. The camera does not feature infrared illumination or thermal sensing. Confirm that your deployment site has consistent light availability—lobbies, retail floors with standard fluorescent or LED lighting, and well-lit corridors are typical matches. For dim spaces, plan supplementary lighting or evaluate IP cameras with documented IR range and day/night capability.
Video Transport and Integration
HD-TVI is a closed, proprietary standard optimized for DVR-based architectures. The VLDT4G does not support H.264, H.265, MJPEG, ONVIF, or IP streaming. Your head-end recorder must be explicitly HD-TVI compatible—verify this before purchase. If you operate a mixed IP/NVR environment or plan migration to IP-based surveillance, this camera will not integrate without a separate analog-to-IP converter, which adds cost and complexity. Ensure your DVR roadmap and existing infrastructure align with the HD-TVI protocol.
When This Is the Right Choice
The VLDT4G suits retrofit and expansion scenarios where you already operate HD-TVI DVR infrastructure and want to add endpoints without migrating to IP or upgrading recording hardware. It is ideal for controlled environments—retail spaces, offices, corridors, warehouse areas, and lightly trafficked outdoor locations—where basic motion detection and incident review suffice. The low cost per unit, simplicity, and included junction box make it a practical choice for high-volume, budget-conscious deployments that prioritize installation speed over advanced analytics or networking standardization.
When to Choose a Different Model
If your deployment requires IP-based networking, ONVIF standardization, or integration with NVR, VMS, or cloud platforms, evaluate IP-based eyeball or turret cameras instead. For high-motion environments, vehicle/facial recognition, or scenarios demanding object tracking or people counting, cameras with edge analytics and deep learning will deliver significantly better results than passive HD-TVI sensors. If your site experiences harsh outdoor conditions—salt spray, extreme temperature swings, direct submersion—specify models with higher IP (67+) and IK ratings explicitly rated for those environments. For applications requiring documented infrared night vision with known range specifications, select cameras with dedicated IR illumination and tested low-light performance metrics.
Frequently Asked Questions
Q: Can the VLDT4G integrate with an IP NVR or VMS?
A: No. The VLDT4G is a native HD-TVI camera and transmits only over coaxial or hybrid twisted-pair cable to an HD-TVI DVR. It does not support ONVIF, IP networking, or Ethernet connectivity. If you require IP integration, select an IP-based camera from the Speco Technologies IP cameras line.
Q: Does the VLDT4G have infrared (IR) night vision?
A: No. The VLDT4G does not feature built-in IR illumination or thermal capability. It is designed for spaces with adequate ambient or supplementary lighting. Confirm your site has consistent light availability before purchasing.
Q: Is the VLDT4G rated for outdoor use?
A: The VLDT4G is designed for indoor and light outdoor environments. For applications involving direct rain exposure, extreme temperature fluctuation, or salt spray, verify IP and IK ratings against your specific environmental conditions. The evidence does not specify IP or IK ratings, so confirm with the manufacturer for demanding outdoor deployments.
Q: What DVRs are compatible with the VLDT4G?
A: Any DVR that supports HD-TVI protocol is compatible. Verify your existing or planned recorder explicitly lists HD-TVI compatibility before purchase. The VLDT4G will not work with IP/NVR-only systems without an external converter.
Q: Can I adjust the field of view after installation?
A: The lens is fixed at 3.6mm and cannot be adjusted. The turret housing allows 90° pan adjustment for fine-tuning the aiming angle after mounting, but the focal length and zoom remain static. Plan your camera placement carefully before commissioning.
Q: Is on-camera analytics available?
A: No. The VLDT4G is a passive sensor without edge analytics, object detection, or metadata extraction. Motion detection and event logging must be performed by your DVR or external VMS.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The VLDT4G is a straightforward play if your DVR infrastructure is already HD-TVI and you're looking to add coverage without migrating platforms. The fixed 3.6mm lens and included junction box make this a labor-efficient retrofit option, and the passive design means minimal ongoing maintenance. That said, do not force this camera into an IP-centric environment—you'll end up buying a converter and creating a support liability.
Technical Highlights:
- 2MP at 1920×1080: Delivers sufficient resolution for general surveillance and incident review in retail, office, and corridor settings. File sizes remain manageable on 24/7 DVR systems, avoiding the storage bloat you'd incur with higher-megapixel sensors in passive, single-codec workflows.
- Fixed 3.6mm Lens: Approximately 68–75° horizontal field of view, optimized for mid-range indoor coverage (10–15 feet). Eliminating field adjustment during commissioning streamlines high-volume rollouts and reduces on-site troubleshooting when you're deploying dozens of identical units.
- HD-TVI Protocol: No IP stack, no DHCP, no network credential management. Coaxial cable runs can be long without bandwidth degradation, and power draw remains low—critical when running cable through existing conduit or retrofitting older buildings without network infrastructure.
Deployment Considerations:
- Light Dependency: The VLDT4G has no infrared illumination. Dim corridors, loading docks, or parking structures will produce poor video. Plan supplementary lighting or evaluate IP turrets with documented IR range if your site has variable ambient light.
- Protocol Lock-In: HD-TVI is proprietary and closed. If your organization later migrates to IP/NVR infrastructure or adopts a VMS platform, this camera becomes stranded—you cannot reuse it without a converter. Size your HD-TVI fleet conservatively if there's any likelihood of platform evolution in the next 3–5 years.
- Analytics Downstream: Motion detection, event logging, and any intelligence must run at the DVR. This keeps the camera simple but concentrates processing load on your head-end. If you deploy dozens of cameras, DVR CPU bandwidth becomes a real constraint.
The VLDT4G is a solid fit for stable, mature HD-TVI environments—retail chains, warehouse facilities, office parks with established DVR infrastructure and no imminent IP migration plans. It's not a future-proof platform, but it is a cost-effective way to expand coverage if you're committed to HD-TVI long-term.
