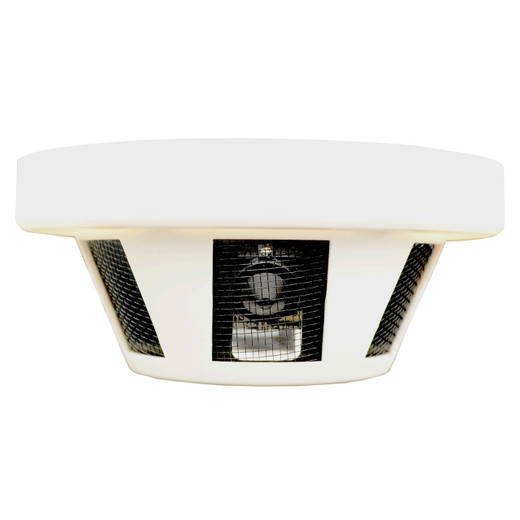

Speco Technologies VL562T 2MP HD-TVI Ceiling Camera
Overview
The Speco VL562T is a 2MP fixed-lens ceiling camera engineered for compact, discreet installations where space and visual profile matter. It delivers 1920×1080 resolution at 30fps over standard HD-TVI coax cable, integrating directly into HD-TVI DVR systems without requiring IP infrastructure. The 3.7mm fixed lens delivers a moderately wide field of view suitable for fixed-coverage applications—hallways, retail aisles, office foyers, or warehouse zones where camera presence should remain minimal. Operating across -22°F to 140°F, the VL562T supports indoor and lightly controlled outdoor environments (recessed soffits, covered loading docks). DC 12V power demand keeps installation straightforward: run coax + 12V supply to a nearby receptacle or existing power rail.
Key Features
- 2MP (1920×1080) at 30fps: Sufficient resolution for facial detail at close range (5–15 feet) and license-plate legibility on merchandise shelves. 30fps is standard for retail and office surveillance—no motion blur on normal walking speed. Higher frame rates are unnecessary for stationary monitoring unless tracking fast-moving objects (conveyors, forklifts) is critical.
- 3.7mm fixed lens: Wide viewing angle reduces the number of cameras needed for corridor or open retail space coverage. Fixed focus means no autofocus hunting or lens creep over time—once aimed, it stays locked. Tradeoff: you cannot zoom into detail after installation without repositioning the camera.
- HD-TVI transmission: Native analog HD-TVI avoids the IP ecosystem entirely. No network switches, no DHCP, no firmware updates over the network. Simplifies integration with legacy DVR systems and reduces cybersecurity surface area in environments where analog infrastructure already exists. Coax cable runs are typically cheaper and faster to install than network cabling in retrofit scenarios.
- DC 12V power: Draws minimal current, allowing a single 12V supply to feed multiple cameras on the same circuit (check DVR specifications for total power budget). No PoE or AC mains wiring required at the camera location—a significant advantage in confined ceiling plenums or drop-ceiling grids.
- Discreet white housing: Low-profile dome approximately 4.5 inches in diameter blends into standard ceiling tiles and white suspended ceilings. Visibility deterrent is minimal compared to bullet or turret cameras; appropriate for retail environments, libraries, or offices where overt surveillance may affect customer experience.
- Operating temperature -22°F to 140°F: Suitable for climate-controlled indoor spaces and semi-protected outdoor areas. Not rated for extreme cold (below -22°F) or direct sunlight/thermal stress. Skip this model if deployment is exposed rooftop, full outdoor, or unheated warehouse in winter climates—a weatherized outdoor camera would be required instead.
Integration & Compatibility
The VL562T connects to any HD-TVI DVR or hybrid video management system supporting 2MP HD-TVI input. Standard coaxial cable (RG-59 or RG-6) carries both video and sync signals. No ONVIF, no cloud connectivity, no mobile app streaming—this is closed-loop, premises-based recording. If your DVR is DVR-only (not hybrid IP), integration is trivial. If you are building a new system or upgrading to IP cameras later, the VL562T will not migrate; plan camera count and scope accordingly.
Installation typically requires a ceiling access point, coax run (pre-existing in retrofit, new run in greenfield), and a local 12V power source. Consider a network video recorder or hybrid DVR if you need centralized multi-camera management, remote playback, or integration with other security systems (access control, alarm panels).
When to Choose a Different Model
If resolution requirements exceed 2MP (e.g., long-distance facial identification or small-text reading), explore higher-megapixel variants in the same Speco family. If outdoor exposure, vandalism risk, or extreme temperature tolerance is needed, step to a ruggedized 2MP model with IP66/IK10 rating. If your infrastructure is already IP-based or cloud-connected, an IP camera with built-in analytics and mobile streaming may reduce total cost of ownership despite higher per-unit price.
Frequently Asked Questions
Q: Can the VL562T record to a hybrid DVR with both analog and IP cameras?
A: Yes. The VL562T connects to the HD-TVI analog input of a hybrid DVR. IP cameras plug into the same recorder's network port. Both can record simultaneously, though remote streaming and analytics typically only apply to the IP channels.
Q: What is the maximum coax cable run from the DVR to the camera?
A: HD-TVI can reliably transmit over 300–400 feet of coax under normal conditions. Runs beyond 500 feet may show signal degradation. Check your DVR manufacturer's specifications and consult the installation guide for cable gauge recommendations.
Q: Is the lens replaceable if I need a different angle of view?
A: No. The 3.7mm lens is fixed and integrated into the camera housing. If field of view requirements change, you must reposition the camera or substitute a different model.
Q: Does the VL562T support day/night (ICR) switching?
A: The evidence does not specify IR illumination or day/night capability. Confirm with the DVR or camera manufacturer before assuming low-light performance.
Q: What is the warranty period?
A: Warranty details are not provided in the available documentation. Contact the manufacturer or specialty distributor for coverage terms and duration.
Q: Can I mount the VL562T on a wall instead of a ceiling?
A: The design is optimized for ceiling or flush-mount installations. Wall mounting may be possible with a custom bracket, but it will increase profile and visibility. Verify mechanical compatibility before ordering.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The VL562T is a no-frills analog HD-TVI camera—and that's precisely its strength in the right deployment. If your infrastructure is already DVR-based and you need low-profile ceiling coverage without IP complexity, the 2MP resolution and 3.7mm fixed lens will deliver solid results at a fraction of the cost and integration time of an equivalent IP deployment. The trade-off is obvious: no zoom, no remote mobile streaming, no edge analytics. But for fixed coverage scenarios—retail aisles, office corridors, warehouse inventory zones—that's often not a liability; it's a simplification.
Technical Highlights:
- 1920×1080 @ 30fps over coax: Eliminates IP infrastructure entirely. No switches, no PoE planning, no DHCP leases to manage. Coax runs and a 12V supply line are typically faster to install in retrofit scenarios than running network drops to a ceiling point.
- 3.7mm fixed lens: Delivers roughly 90° horizontal field of view—adequate for most corridor and small-zone coverage. No autofocus drift over time; aim once and forget. The tradeoff is inability to zoom after installation, so plan placement carefully.
- 12V DC, minimal draw: A single 12V supply can feed multiple cameras. No PoE budget constraints or power supply sizing complexity. Simplifies electrical planning on retrofit projects with limited power infrastructure in the ceiling.
Deployment Considerations:
- Temperature rating to -22°F is marginal for unheated or semi-outdoor spaces. If your deployment is a covered loading dock or warehouse edge exposed to winter cold, verify the DVR can handle the low-light image quality or confirm no frost accumulation on the lens dome.
- The absence of IR illumination (not mentioned in specs) means low-light performance is passive—reliant on available ambient light. If 24/7 recording or dark-hour facial recognition is required, request confirmation from the manufacturer or plan supplemental area lighting.
- Analog HD-TVI scales reasonably to 10–20 camera sites on a single DVR. Beyond that, consider IP or hybrid; HD-TVI DVRs become CPU-constrained and storage planning gets tight.
Deploy the VL562T in retail, office, or controlled-environment warehouse settings where drop-ceiling discreet mounting, simplicity, and cost control trump advanced analytics and mobile access. It is not suitable for outdoor, high-temperature, or high-resolution identification requirements—and it should not be the first choice if you are already standardized on IP cameras and ONVIF VMS platforms.
