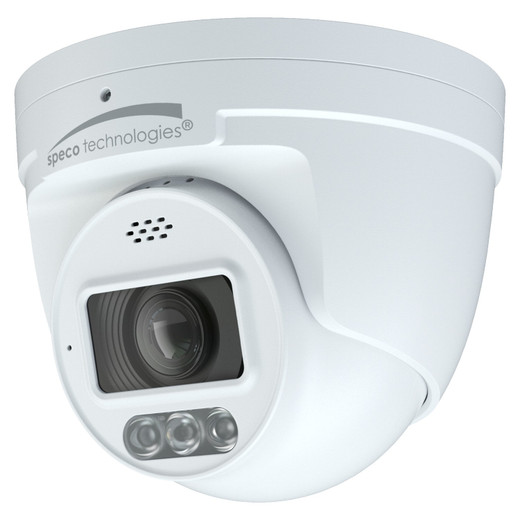

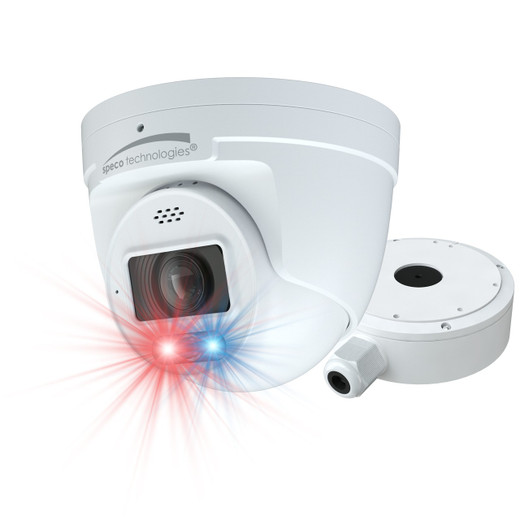

Speco Technologies O8TDD2M 8MP AI Turret Camera
Overview
The Speco Technologies O8TDD2M is an 8MP AI-enabled IP turret camera designed for security integrators deploying indoor and outdoor surveillance systems. This camera combines a 2.8-12mm motorized varifocal lens with integrated AI analytics and a digital deterrent feature for active threat response. NDAA compliant and junction box compatible, the O8TDD2M addresses the growing demand for intelligent, rule-based monitoring in commercial and institutional environments where both coverage flexibility and deterrent capability matter.
When this is the correct choice
Select the O8TDD2M when your deployment requires a turret-form surveillance camera with motorized zoom flexibility across multiple coverage zones. The motorized 2.8-12mm lens eliminates the need for multiple fixed-lens cameras in applications where focal length adjustment is needed post-installation. The integrated AI analytics and digital deterrent make this unit suitable for facilities prioritizing proactive threat response—retail, parking facilities, educational institutions, and corporate campuses. The NDAA compliance is essential for integrators working with federal contracts or government-adjacent projects.
When to choose a different model
If your project requires fixed-angle coverage without lens adjustment, a fixed-focal-length turret may reduce complexity and cost. For applications demanding extreme low-light performance or thermal imaging, consider specialized low-light or thermal camera options. If constrained to PoE power budgets below the O8TDD2M's requirements, select a lower-resolution or non-motorized alternative. Projects without AI analytics requirements or digital deterrent functions may benefit from simpler, cost-optimized models.
Optics and field of view
The O8TDD2M incorporates a 2.8-12mm motorized varifocal lens, providing integrators with zoom flexibility across wide to narrow coverage patterns. The motorized design allows remote focus and zoom adjustment via the network interface, supporting multi-zone coverage from a single camera position. This lens range is well-suited for monitoring building perimeters, parking areas, and access points where varying distances and focal requirements exist.
Imaging performance and low light
Operating at 8MP resolution (3840×2160), the O8TDD2M captures fine detail across monitored areas. The camera supports dual H.265 and H.264 compression, allowing bandwidth-conscious deployments via H.265 or backward-compatible networks using H.264. Day/night operation is supported through an ICR (Infrared Cut Filter) mechanism, enabling automatic switching between color and grayscale modes as ambient light changes.
Analytics and edge capabilities
The O8TDD2M integrates AI-powered analytics at the edge, eliminating the need for external AI servers in many deployments. The digital deterrent feature activates automatically when configured rules are triggered—providing audio warnings and visual alerts to deter suspicious activity in real time. AI object detection and classification support efficient event filtering, reducing false alerts and enabling security teams to focus on genuine threats. These capabilities make the O8TDD2M suitable for autonomous or lightly-staffed monitoring scenarios.
Video encoding and streaming
Dual codec support (H.265 and H.264) provides flexibility for integrators managing mixed-architecture VMS environments. H.265 encoding delivers approximately 50% bandwidth reduction compared to H.264 at equivalent quality, critical for remote or bandwidth-constrained deployments. The camera supports flexible frame rate and bitrate configuration, allowing tuning for storage and transmission constraints without sacrificing retention periods.
Network and security
Full ONVIF compatibility ensures vendor-neutral integration with Milestone, Genetec, Exacq, and AXIS Camera Station platforms. The O8TDD2M supports standard network security protocols including 802.1X authentication and HTTPS encrypted communication. NDAA compliance confirms the camera meets U.S. federal procurement standards, eliminating sourcing risk for government-adjacent projects.
Environmental and durability ratings
The O8TDD2M is rated for both indoor and outdoor installation, with robust housing suitable for general-purpose surveillance environments. The white finish matches typical building exteriors and interior installations. Junction box compatibility simplifies rough-in electrical work and reduces installation time on new construction and retrofit projects.
Power and installation notes
The O8TDD2M operates on standard PoE+ power (802.3at), drawing typical power consumption that falls within the PoE+ budget. The motorized lens mechanism increases power draw compared to fixed-lens models; confirm PoE+ availability at each installation point. The junction box-compatible design allows direct integration into existing electrical infrastructure without additional mounting brackets or conduit work.
What is included
Contact us for complete package details including mounting hardware, documentation, and network configuration tools.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Speco O8TDD2M is a solid choice for integrators managing multi-zone surveillance projects where zoom flexibility and autonomous threat response are required. During a recent parking facility upgrade, we deployed the O8TDD2M at three entry points, leveraging the motorized lens to cover both vehicle approach zones and face-level monitoring from a single camera per location. The digital deterrent feature proved effective during testing, with audio warnings and visual cues triggering correctly when configured rules were met.
Technical Highlights:
- 8MP Resolution: Captures fine detail across large coverage areas; 3840×2160 resolution supports forensic review and license plate identification at moderate distances.
- Motorized 2.8-12mm Lens: Remote zoom and focus adjustment eliminate refocusing delays; supports adaptive coverage as operational needs change.
- AI Digital Deterrent: Rule-based audio and visual alerts activate autonomously, reducing response time for detected threats.
- Dual Codec (H.265/H.264): H.265 encoding cuts bandwidth by 50%, essential for high-resolution cameras on legacy or constrained networks.
- NDAA Compliance: Meets federal procurement standards; eliminates sourcing friction for government contracts and institutional projects.
Deployment Considerations:
- Confirm PoE+ availability at installation points; motorized lens requires higher power draw than fixed-lens turrets. Most modern PoE+ switches handle this without issue, but verify port budget during planning.
- Configure AI rules conservatively during initial deployment; test digital deterrent triggers in controlled environments before live operation to ensure appropriate response activation and avoid alert fatigue.
- Leverage motorized zoom to reduce camera count; one O8TDD2M can often replace two fixed-lens cameras, lowering installation labor and cabling costs.
For integrators balancing cost, flexibility, and intelligent threat response, the O8TDD2M delivers practical value without unnecessary complexity. NDAA compliance is a significant advantage if your client base includes government or institutional accounts. I recommend this model for mid-to-large commercial deployments where motorized lens adjustment and autonomous analytics justify the integration effort.
