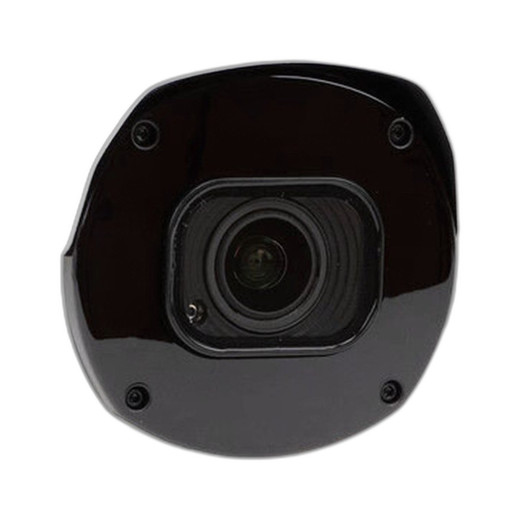

Speco Technologies O5B1MG 5MP Bullet IP Camera

Overview

The Speco O5B1MG is a 5MP wired IP bullet camera designed for outdoor surveillance applications requiring motorized zoom capability and edge-based analytics. This camera delivers 2880x1620 resolution at 30fps using H.265 and H.264 compression, making it suitable for medium- to long-range monitoring in commercial and industrial environments. The motorized 2.8-12mm lens provides flexible field-of-view adjustment without requiring manual intervention, while IP66 environmental protection ensures reliable operation in wet and dusty conditions. NDAA compliance addresses federal procurement requirements for organizations working with U.S. government agencies.

When this is the correct choice

Select the O5B1MG when you need motorized zoom capabilities combined with on-camera analytics in an outdoor-rated enclosure. The 5MP resolution and varifocal lens make it ideal for perimeter monitoring, parking lot surveillance, and facility entry points where zoom flexibility is required without PTZ motors. The embedded motion detection, line crossing, intrusion detection, and vehicle detection analytics enable edge processing, reducing backend server load and enabling faster alerting. Two-way audio support adds communication capability for remote personnel management. PoE power delivery simplifies installation in locations where DC 12V distribution is impractical.

When to choose a different model

If your application requires active pan-tilt-zoom (PTZ) control, consider a dedicated PTZ camera instead. For applications demanding higher than 5MP resolution or 60fps streaming, evaluate 8MP or 4K alternatives. If your site lacks structured cabling and requires wireless deployment, this wired-only camera is not suitable. For indoor-only applications where environmental weatherproofing is unnecessary, a lower-cost indoor bullet may be more cost-effective.

Optics and field of view

The motorized 2.8-12mm varifocal lens provides a field of view ranging from wide-angle coverage at 2.8mm to narrow telephoto framing at 12mm. This 4.3x optical zoom range allows operators to adjust framing post-installation without physical repositioning. The motorized focus mechanism maintains sharp imaging across the entire zoom range, eliminating the manual adjustment process required with fixed varifocal lenses. Integrators can set and forget the focal length appropriate to each deployment zone.

Imaging performance and low light

The 1/2.7" CMOS sensor operates across a temperature range of -22°F to 140°F, accommodating extreme outdoor conditions from northern winters to southern summers. True day/night capability with mechanical IR filter switching enables seamless transitions between color and monochrome imaging. True WDR (wide dynamic range) processing handles high-contrast scenes such as parking areas with both bright sunlit pavement and shadowed building entrances, preserving detail in both highlights and shadows. Night vision via infrared illumination extends surveillance capability into complete darkness.

Analytics and edge capabilities

Embedded analytics reduce bandwidth and storage requirements by processing video locally on the camera. Motion detection generates alerts only when movement occurs within user-defined zones. Line crossing analytics monitor perimeter breaches by detecting when objects cross virtual boundaries. Intrusion detection identifies unauthorized entry into protected areas, while vehicle detection specifically flags automotive motion for parking and driveway monitoring. These edge-based functions decrease reliance on external analytics servers and enable faster response times for critical events.

Video encoding and streaming

Dual codec support for H.265 and H.264 compression provides flexibility across VMS platforms. H.265 encoding delivers equivalent quality to H.264 at roughly 50% bitrate reduction, conserving bandwidth and storage on bandwidth-constrained networks. H.264 remains the universal fallback for legacy VMS systems lacking H.265 support. 30fps capture at 5MP resolution delivers smooth motion rendering suitable for vehicle and pedestrian tracking. Power consumption of 6.84W keeps heat generation and electrical load minimal even in extended outdoor deployments.

Network and security

ONVIF Profile T compatibility ensures integration with ONVIF-compliant VMS platforms, eliminating vendor lock-in and supporting multi-manufacturer system designs. The camera operates as a standard networked device on IP-based infrastructure, enabling centralized management and redundant recording across multiple backend systems.

Environmental and durability ratings

IP66 rating provides protection against water jets and temporary immersion, meeting the requirements of outdoor installations exposed to rain, hose-down cleaning, and seasonal weather variation. The 1.76 lb weight allows installation on standard wall-mounted brackets without reinforcement. Operating temperature specification of -22°F to 140°F covers most North American climate zones, ensuring optical and sensor performance across seasonal extremes.

Power and installation notes

PoE (802.3af) powering eliminates the need for dedicated 12V DC power supplies at the camera location, reducing installation labor and component count. Standard network cabling delivers both power and video signal through a single Cat5e/Cat6 run. The motorized lens mechanism integrates directly into the camera body, requiring only network connection and power — no auxiliary control wiring for focus or zoom adjustment.

What is included

Contact us for package details.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I've evaluated the Speco O5B1MG during deployments requiring motorized zoom without full PTZ expense. The combination of a varifocal lens with embedded analytics addresses a practical gap in the market: you get focal length flexibility and local video intelligence in a single outdoor-rated package. The O5B1MG delivers where fixed-lens cameras force compromise and where dedicated PTZ systems introduce unnecessary complexity and cost.

Technical Highlights:

• Motorized varifocal lens: The 2.8-12mm lens with motorized focus delivers precise field-of-view adjustment without physical repositioning, critical for securing optimal framing across mixed deployment zones.
• Edge analytics processing: Motion detection, line crossing, intrusion detection, and vehicle detection run locally on the camera, eliminating the need for external analytics servers and enabling immediate alerting on critical events.
• H.265 codec efficiency: 50% bitrate reduction compared to H.264 at equivalent quality preserves network bandwidth in installations with multiple cameras sharing limited pipe capacity.
• Rugged outdoor envelope: IP66 weatherproofing and -22°F to 140°F operating temperature handle North American outdoor conditions without environmental enclosures or supplemental cooling.

Deployment Considerations:

• Confirm your VMS platform supports ONVIF Profile T compliance; most modern systems do, but legacy proprietary systems may require integration middleware.
• Plan for motorized lens control in your VMS interface — zoom and focus adjustment should be accessible from operator workstations or mobile clients for post-installation fine-tuning.
• Size your PoE infrastructure for 6.84W per camera; a single 802.3af PSE port per camera is sufficient, avoiding the need for PoE+ (802.3at) or higher-capacity switches.
• Test H.265 codec compatibility with your recording backend before production deployment; some older VMS appliances require firmware updates to decode H.265 streams efficiently.

The O5B1MG is a well-engineered choice for integrators seeking motorized zoom capability paired with practical edge analytics in a single, weatherproofed camera. The embedded video intelligence and dual codec support eliminate common integration friction points and reduce total system cost compared to separate camera and analytics appliance deployments. Highly recommended for outdoor perimeter and facility monitoring projects.
