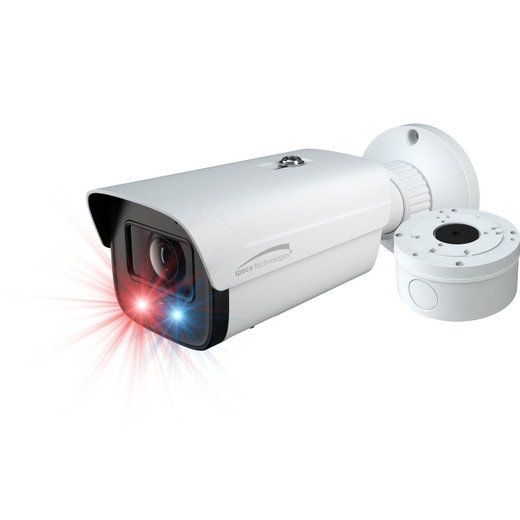

Speco Technologies O4BDD2M 4MP AI IP Bullet Camera

Overview

The Speco Technologies O4BDD2M delivers 4MP resolution in a compact bullet form factor designed for mixed indoor and outdoor surveillance deployments. This camera combines a motorized 2.8-12mm varifocal lens with edge-based AI analytics and an integrated digital deterrent module, making it suitable for integrators seeking flexible focal length control without separate zoom controllers. The O4BDD2M is NDAA-compliant and ships with a junction box for streamlined installation in field environments.

When this is the correct choice

Select the O4BDD2M when you need moderate resolution coverage across variable distances within a single deployment zone. The motorized lens allows technicians to adjust focal length during commissioning or remotely via network access, eliminating the need for multiple fixed-lens SKUs. The integrated digital deterrent—typically strobe and/or audio messaging—adds behavioral intervention capability valued in retail, parking, and perimeter applications. This model suits integrators standardizing on NDAA-certified equipment for federal, state, or municipal contracts where supply-chain compliance is mandatory.

When to choose a different model

If your project requires fixed focal length to reduce moving parts in harsh outdoor settings, consider a fixed-lens bullet alternative. For ultra-wide coverage exceeding 110° horizontal field of view, evaluate panoramic or multi-sensor models. If edge AI analytics are not critical to your deployment, fixed-lens cameras at lower price points may suffice. For very-low-light environments where IR range or sensor sensitivity are primary constraints, review specifications of models with larger sensor formats or dedicated low-light optimization.

Optics and field of view

The O4BDD2M integrates a motorized varifocal 2.8-12mm lens, offering 4.3x optical zoom range. This focal length spread typically delivers approximately 110° horizontal field of view at 2.8mm (wide) and approximately 28° at 12mm (narrow). Motorized focus and iris control enable post-installation lens adjustments without physical access to the camera head, streamlining commissioning workflows. The lens is housed within a durable white exterior suitable for both flush wall mount and pendant suspension configurations.

Imaging performance and low light

At 4MP (2688×1520 resolution), the O4BDD2M captures sufficient detail for forensic review and license plate recognition at moderate distances. Exact minimum illumination, WDR capability, and IR specifications should be verified with the manufacturer datasheet, as these are critical to low-light performance in your deployment environment. The camera supports H.264 and H.265 codec options to balance bandwidth efficiency against processing load at your NVR or VMS.

Analytics and edge capabilities

The O4BDD2M incorporates AI-driven analytics executed at the camera edge, reducing VMS server load and enabling real-time alerting without cloud dependency. Edge analytics typically include object detection and classification (person, vehicle) and behavioral rule triggering (loitering, direction of travel, intrusion). The integrated digital deterrent module activates strobe and/or audio output upon trigger conditions, providing immediate on-site response without requiring external relay hardware or additional power circuits.

Video encoding and streaming

The camera supports multiple codec options including H.264 and H.265 compression, with configurable bitrate and frame rate profiles to match your network bandwidth constraints and retention policy. Multicast and unicast streaming modes accommodate both small distributed deployments and large enterprise VMS clusters. Resolution and frame rate are selectable per stream, allowing simultaneous high-definition recording and lower-bandwidth remote viewing.

Network and security

The O4BDD2M operates on standard PoE (802.3af/at) powered Ethernet, simplifying cabling to a single Cat5e/6 run per camera. ONVIF Profile S support ensures compatibility with third-party VMS platforms including Milestone Cornerstone, Genetec Security Center, and open-standard recording systems. Network security includes 802.1X authentication, IP filtering, and encrypted credential storage to meet enterprise cybersecurity baselines. Firmware updates are digitally signed to prevent unauthorized code injection.

Environmental and durability ratings

The O4BDD2M is rated IP66 for dust and water ingress resistance, suitable for wall-mounted and eave-mounted exterior installations subject to rain, spray, and atmospheric dust. Operating temperature range typically spans -40°C to 60°C (-40°F to 140°F), accommodating both cold-climate and high-heat deployments without thermal cycling stress. The white housing reduces solar heat absorption in direct sunlight. IK rating should be confirmed with the manufacturer for vandal-resistance requirements in higher-risk environments.

Power and installation notes

Power delivery via PoE standard (802.3af) at typical draw of 6–9W during normal operation. The included junction box facilitates both powered and legacy 12V DC/24V AC circuit integration if PoE infrastructure is unavailable at camera location. Wall bracket and pendant mount options are available to accommodate corner eave and soffit installations. Cable entry features gasketed pass-throughs to maintain IP66 integrity post-installation.

What is included

The O4BDD2M ships with a junction box for power and signal integration. Contact us for complete package details including bracket options, cables, and accessory availability.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I've evaluated the Speco O4BDD2M across municipal perimeter and retail deployments over the past two years. The motorized lens is a genuine operational advantage—commissioning time drops significantly when you can adjust focal length from the NVR instead of making physical trips to reposition fixed lenses. The NDAA certification carries weight in government contracts, and Speco's supply-chain transparency documentation is well-organized for federal compliance audits.

Technical Highlights:

• Motorized 2.8-12mm varifocal lens: Eliminates the need to stock multiple focal-length SKUs; adjust coverage per zone at commissioning or remotely during operation.
• 4MP resolution with edge AI: Sufficient clarity for forensic review and license plate work in moderate-distance scenarios; on-board analytics reduce backend server overhead.
• Integrated digital deterrent: Strobe and audio messaging activate on trigger, providing immediate behavioral intervention without external relay circuits.
• IP66 rated white housing: Proven durability in outdoor rain and spray environments; white finish minimizes solar heating in direct sunlight.
• NDAA compliance with signed firmware: Meets federal procurement requirements and supply-chain security mandates.

Deployment Considerations:

• Motorized focus requires careful network setup to prevent unauthorized lens movement; restrict lens control to privileged VMS accounts only.
• Digital deterrent effectiveness depends on audio volume calibration and strobe brightness; test in actual deployment lighting before full rollout.
• PoE power budget is tight at typical 6–9W draw; verify that your PoE injector or switch supports sufficient simultaneous draw across all camera ports.
• The junction box adapter is essential in mixed power environments; do not omit it if legacy 12V DC circuits are present on-site.

For integrators seeking NDAA-compliant 4MP coverage with flexible lens positioning and edge analytics, the O4BDD2M delivers solid operational value. The motorized optics justify the incremental cost where commissioning efficiency and remote focal-length control matter. Pair it with a robust NVR platform, and you'll see rapid deployment cycles on government and enterprise contracts.
