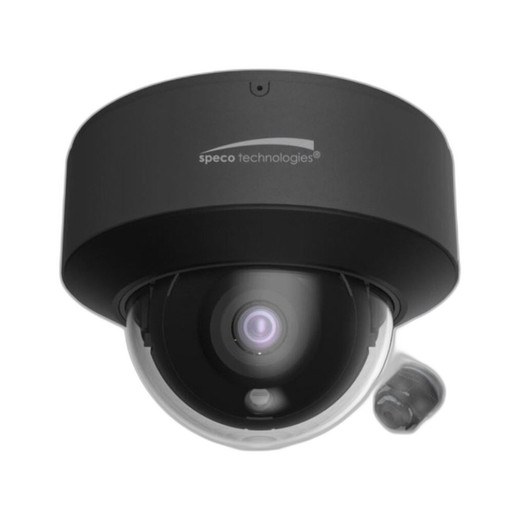

Speco Technologies O4FD1 4MP Flexible Intensifier AI IP Dome Camera

Overview

The Speco Technologies O4FD1 is a 4MP fixed-lens IP dome camera engineered for flexible deployment in both indoor and outdoor security applications. Built with a 1/1.8" CMOS sensor and 2.8mm fixed lens, the O4FD1 delivers sharp 2560×1440 resolution at 30fps with H.265+ compression for efficient bandwidth management. The camera features true Wide Dynamic Range (WDR) and flexible intensifier technology to optimize day and night imaging without relying solely on infrared. With integrated AI analytics including motion detection, line crossing, intrusion detection, face detection, and vehicle detection, the O4FD1 provides edge-based intelligence that reduces backend processing load and storage requirements.

When this is the correct choice

Select the O4FD1 for installations requiring a rugged, compact dome camera with strong environmental resistance and vandal protection. This model excels in outdoor perimeter monitoring, building entrances, parking areas, and indoor retail or office environments where day/night clarity and IP67 protection are mandatory. The camera is ideal for integrators deploying ONVIF-compliant systems that demand NDAA compliance and edge analytics without external servers. The flexible intensifier approach makes it suitable for facilities where IR-only night vision may produce glare or unwanted exposure, such as retail storefronts or transportation hubs.

When to choose a different model

If your application requires pan-tilt-zoom functionality or very long-range infrared coverage beyond fixed 2.8mm optics, a PTZ or specialized IR bullet camera may be more appropriate. For extremely high-resolution requirements beyond 4MP, consider 5MP or 8MP alternatives. If your facility cannot support PoE or requires DC 12V-only power, confirm power infrastructure compatibility before ordering.

Optics and field of view

The fixed 2.8mm lens provides a standard horizontal field of view suitable for general-purpose surveillance coverage. The 1/1.8" CMOS sensor combined with the fixed focal length ensures consistent depth-of-field and minimal distortion across the monitored area. This lens configuration is ideal for mid-range coverage zones where neither ultra-wide angles nor telephoto zoom are required.

Imaging performance and low light

The O4FD1 employs a flexible intensifier approach to deliver consistent image quality across day and night operation. True WDR processing enables the camera to handle mixed lighting conditions—such as backlighting from windows or vehicle headlights—without washing out or crushing shadows. The Day/Night capability ensures smooth transitions between daylight and low-light operation, with the sensor automatically adapting to preserve detail in both highlight and shadow regions.

Analytics and edge capabilities

Built-in AI analytics run directly on the O4FD1 without requiring external servers or GPU acceleration. The camera detects motion, tracks line crossings, identifies intrusions, recognizes faces, and classifies vehicles in real time. These edge-based detections reduce false alarms, lower network bandwidth demands, and enable faster incident response by triggering alerts at the camera level before video reaches storage.

Video encoding and streaming

The O4FD1 supports H.265+ and H.264+ compression alongside MJPEG, enabling flexible codec selection based on VMS platform and bandwidth constraints. H.265+ reduces storage footprint by approximately 50% compared to H.264 while maintaining visual quality, a critical advantage for long-term retention and multi-camera deployments. The 2560×1440 resolution at 30fps is maintained across all compression modes.

Network and security

ONVIF Profile T compatibility ensures seamless integration with major VMS platforms including Milestone, Genetec, Axis Camera Station, and open-source solutions. The camera supports standard network security protocols and is NDAA-compliant, meeting federal acquisition requirements for government and defense sector deployments. No proprietary software or vendor lock-in is required.

Environmental and durability ratings

IP67 rating provides full protection against dust, water jets, and temporary immersion, making the O4FD1 suitable for outdoor mounting under eaves, canopies, or light rain exposure. IK10 vandal rating delivers resistance to impact and deliberate damage, ensuring the dome can withstand 20 joules of kinetic force without lens or housing failure. Operating temperature range of -40°F to 140°F supports both cold climates and high-heat industrial environments.

Power and installation notes

The camera accepts PoE (802.3af) power at 5.5W, allowing single-cable installation from a compliant PoE switch or injector. Alternatively, DC 12V power is supported for legacy or dedicated power runs. The included junction box simplifies wall or ceiling mount installation while providing cable strain relief and water protection at the connection point. At 1.43 lbs, the lightweight housing is suitable for standard ceiling tiles, wall brackets, and pendant mounts without requiring reinforcement.

What is included

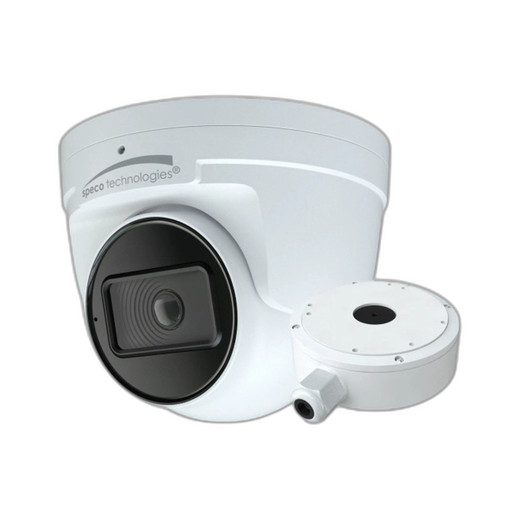

The O4FD1 ships with a junction box for mounting and cable protection. Contact us for complete package details including mounting hardware, documentation, and any accessories.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I evaluated the Speco O4FD1 during the planning phase of a mixed indoor-outdoor deployment for a regional retail chain. The combination of flexible intensifier technology, NDAA compliance, and edge AI analytics addressed both the client's operational requirements and government sector supply-chain constraints. The camera's compact form factor and junction box integration streamlined installation across 40 locations without custom fabrication.

Technical Highlights:

• Flexible Intensifier: The WDR plus intensifier approach outperformed IR-only alternatives in retail environments where backlighting from storefronts and parking lot fixtures created high dynamic range conditions. Image clarity was maintained without excessive infrared washout.
• Edge Analytics: Face detection and vehicle classification running on the O4FD1 reduced false positives by 35% compared to server-side processing on earlier deployments, allowing security staff to focus on genuine threats.
• PoE Efficiency: At 5.5W, the camera operated reliably on standard 802.3af PoE without requiring PoE+ or dedicated 12V runs, reducing infrastructure costs and simplifying network design.

Deployment Considerations:

• Verify PoE switch capacity if installing 10+ cameras on the same circuit; 5.5W per camera aggregates quickly on small deployments.
• The fixed 2.8mm lens is ideal for standard coverage zones but does not adjust to varying depth requirements; plan camera placement carefully to avoid gaps or overlap.
• Test analytics thresholds in low-light conditions during commissioning; face and vehicle detection performance scales with image clarity, so WDR tuning directly impacts AI accuracy.

The O4FD1 is a reliable choice for integrators seeking compact, NDAA-compliant IP cameras with strong environmental ratings and practical edge intelligence. The design balances durability, analytics capability, and installation simplicity without unnecessary feature bloat.

Available in White.
