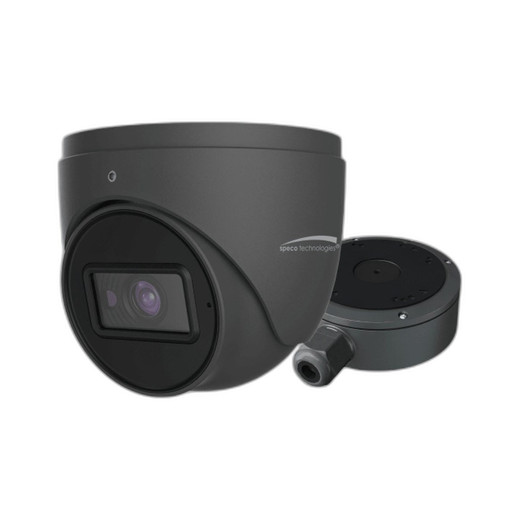

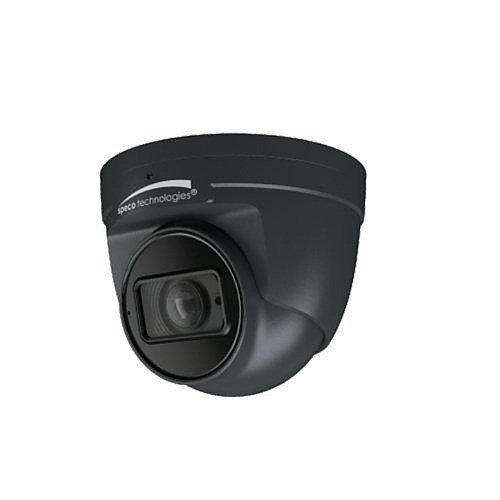

Speco Technologies O4FT1M 4MP Flexible Intensifier AI IP Turret Camera
Overview
The Speco O4FT1M is a 4MP network turret camera designed for integrators deploying outdoor surveillance systems requiring flexible day/night imaging and embedded artificial intelligence. This model combines a motorized 2.8-12mm varifocal lens with edge-based analytics—motion detection, line crossing, intrusion detection, face detection, and vehicle detection—in a single compact form factor. The camera operates on PoE (802.3af) or DC 12V power and delivers H.265+, H.264+, and MJPEG video streams at 30 fps. With an IP67 environmental rating and operating range of -40°F to 140°F, the O4FT1M supports extended outdoor deployment in variable climate conditions.
When this is the correct choice
Deploy the O4FT1M when you require a PoE-powered turret camera with motorized zoom optics and built-in AI analytics for perimeter monitoring, facility access control, and vehicle tracking. Its flexible intensifier technology and true wide dynamic range (WDR) perform well in mixed lighting—dawn, dusk, and backlit scenarios. The ONVIF Profile T compatibility ensures integration with third-party VMS platforms. Integrators managing facilities with moderate to large sites benefit from the varifocal lens, which eliminates multiple camera SKUs and allows field adjustment without lens swaps. The NDAA certification makes this suitable for government and critical infrastructure procurement.
When to choose a different model
If your site requires extreme low-light performance with dedicated infrared illumination beyond flexible intensifier capability, evaluate fixed-lens 4MP models with optimized IR. If the installation cannot support PoE and AC power is unavailable, select DC 12V-only turret options. If pan-tilt-zoom (PTZ) operation is mandatory for large perimeter coverage, upgrade to a PTZ dome. For indoor-only applications with minimal environmental stress, fixed-dome or compact turret models may reduce cost.
Optics and field of view
The O4FT1M features a motorized 2.8-12mm varifocal lens, providing flexible field-of-view adjustment from wide to telephoto framing. This range supports both overview and detail capture from a single vantage point. Installers can adjust zoom in the field or remotely via the camera's web interface, eliminating post-deployment lens replacement. The motor-driven iris responds to lighting changes, maintaining image quality across the operating temperature range of -40°F to 140°F.
Imaging performance and low light
Resolution is 4MP at a maximum of 2576×1452 pixels, delivered at 30 fps. The 1/1.8" CMOS sensor with flexible intensifier technology bridges day and night imaging without switching between distinct sensor modes. True WDR counteracts backlight and reflective surfaces, compressing dynamic range to preserve detail in both highlights and shadows. The day/night capability enables continuous operation from dawn through dusk without manual intervention.
Analytics and edge capabilities
On-camera AI analytics include motion detection, line crossing detection, intrusion detection, face detection, and vehicle detection. These functions run at the edge, reducing bandwidth and storage overhead compared to centralized analytics. Security integrators can configure detection zones, sensitivity thresholds, and alarm triggers directly in the camera, enabling rapid deployment without external analytics appliances.
Video encoding and streaming
The O4FT1M supports H.265+ (HEVC), H.264+ (AVC), and MJPEG compression. H.265+ delivers 50% bandwidth savings versus H.264+ at equivalent quality, critical for PoE-constrained networks. Multi-stream encoding allows simultaneous high-bitrate recording and low-bitrate remote preview. Frame rate is fixed at 30 fps across all resolutions.
Network and security
Connectivity is wired Ethernet with PoE (802.3af) or auxiliary DC 12V input. The camera supports ONVIF Profile T, ensuring interoperability with ONVIF-compliant VMS platforms, recorders, and management software. Audio input via integrated microphone enables two-way communication and forensic audio capture. NDAA compliance certifies the camera for U.S. federal, state, and local government procurement.
Environmental and durability ratings
The O4FT1M carries an IP67 rating, protecting against dust ingress and temporary water immersion during heavy rain, sprinkler activation, and washdown. The -40°F to 140°F operating temperature range accommodates northern winter climates and southern outdoor heat. The turret form factor provides vandal deterrence through its recessed lens design. Weight is 1.45 lbs, allowing flexible wall or ceiling mounting without reinforcement.
Power and installation notes
Power consumption is 7.0W maximum, well within 802.3af PoE budgets (15.4W available per port on standard PoE switches). The camera includes a junction box for weatherproof cable routing and termination. Installers can power the O4FT1M via a single PoE cable, reducing installation labor and conduit runs. Motorized lens control is accessible via the web interface or ONVIF commands from the VMS.
What is included
Contact us for package details.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I evaluated the Speco O4FT1M during planning for a municipal facility upgrade. This turret camera addresses a common integrator challenge: delivering zoom flexibility and AI analytics without proprietary VMS lock-in. The combination of flexible intensifier imaging, motorized lens, and edge AI makes the O4FT1M practical for integrators managing mixed-vendor environments.
Technical Highlights:
- Motorized 2.8-12mm varifocal lens: Eliminates field lens swaps and allows remote zoom adjustment via ONVIF or web interface, reducing deployment time and post-install adjustment costs.
- 4MP at 30 fps with H.265+ compression: 50% bandwidth reduction versus H.264+ allows reliable streaming over standard PoE circuits; critical for integrations on legacy network infrastructure.
- Five on-camera AI analytics: Motion, line crossing, intrusion, face, and vehicle detection run at the edge, reducing backend appliance sizing and enabling rapid rule configuration without VMS scripting.
- IP67 + temperature range (-40°F to 140°F): Outdoor hardness without active heating or cooling; the flexible intensifier avoids dedicated IR circuits in mixed-day/night zones.
Deployment Considerations:
- ONVIF Profile T support ensures compatibility with Milestone, Genetec, and open-source VMS platforms; validate your target VMS firmware version supports H.265+ and ONVIF analytics export if alarming to third-party systems.
- At 7W power draw, the O4FT1M fits easily within standard 802.3af PoE budgets; however, verify that your switch supports simultaneous PoE on all planned camera ports if deploying multiple units on the same downstream switch.
- The flexible intensifier technology provides solid low-light performance in dawn/dusk scenarios, but dedicated IR illumination will outperform it in zero-lux environments—assess actual site illumination during pre-sales surveys.
The O4FT1M is a solid mid-range choice for integrators balancing cost, features, and deployment flexibility. The NDAA certification broadens its addressable market into government contracts, and the motorized lens justifies the price premium over fixed-lens alternatives when field zoom adjustment is a procurement requirement.
Available in White.
