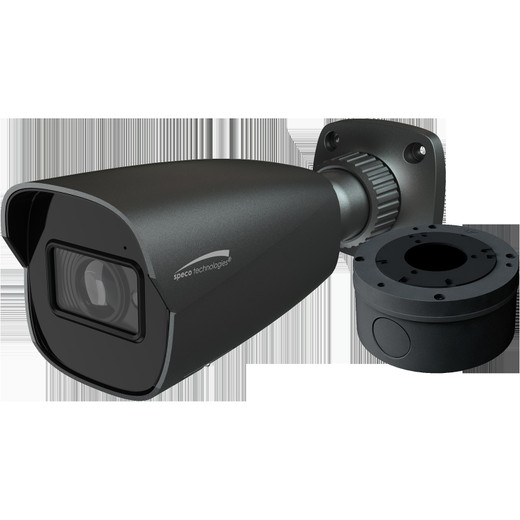

Speco Technologies O4FB1 4MP Flexible Intensifier AI IP Bullet Camera
Overview
The Speco O4FB1 is a 4MP fixed-lens bullet camera engineered for outdoor surveillance deployments requiring both day and night imaging capability. Built with a 1/1.8" CMOS sensor, this camera delivers 2560x1440 resolution at 30fps and incorporates flexible intensifier technology for low-light performance without reliance on traditional infrared lighting. The O4FB1 ships with an integrated junction box, simplifying field installation and reducing labor on rooftop or wall-mounted applications. NDAA certification confirms compliance with federal procurement restrictions.
When this is the correct choice
Choose the O4FB1 when deploying outdoor fixed-position surveillance where network PoE infrastructure is available and true day/night imaging is required without heavy IR power draw. The fixed 2.8mm lens provides a standard horizontal field of view suitable for perimeter monitoring, parking areas, and facility entrances. The IP67 rating and wide operating temperature range (-40°F to 140°F) make this camera suitable for harsh outdoor environments. The flexible intensifier design is ideal for sites where conventional IR cameras create light pollution or where low-light scenes need imaging without supplemental illumination.
When to choose a different model
If your deployment requires varifocal or zoom capability, or if you need PTZ (pan-tilt-zoom) functionality, the O4FB1's fixed 2.8mm lens will not meet those requirements. For indoor-only applications where temperature extremes are not a factor, a lower-cost standard bullet may be appropriate. If IR range exceeding flexible intensifier performance is mandatory, a dedicated IR bullet with optimized 850nm emitters should be evaluated instead.
Optics and field of view
The O4FB1 integrates a fixed 2.8mm lens, delivering a wider horizontal field of view typical for general surveillance coverage. The fixed focal length eliminates on-site focus adjustment, reducing installation time and potential focus drift in outdoor vibration environments. No optical zoom is available; digital zoom is handled by the VMS or client application.
Imaging performance and low light
At 4MP (2560x1440), the sensor provides sufficient pixel density for facial recognition and license plate capture at typical surveillance distances. The 1/1.8" CMOS sensor size balances light sensitivity with compact form factor. Flexible intensifier technology amplifies available ambient light during dawn, dusk, and overcast conditions, reducing the need for constant IR supplementation. True wide dynamic range (WDR) ensures detail retention in scenes with mixed bright and dark zones—critical for monitoring transitions between illuminated and shadowed areas. Day/night operation is automatic, with the camera switching between color (day) and monochrome (night) modes based on ambient light levels.
Analytics and edge capabilities
The O4FB1 includes AI-powered analytics executed on the camera itself, reducing VMS processing load. Motion detection triggers alarms on camera-detected activity. Line crossing detection identifies objects crossing defined virtual boundaries. Intrusion detection alerts on unauthorized entry into protected zones. Face detection enables rapid identification of personnel in forensic review. Vehicle detection classifies moving vehicles separately from pedestrians, supporting traffic monitoring and parking enforcement workflows. These analytics operate independently of VMS software, enabling local alarm triggering and fast response without network dependency.
Video encoding and streaming
The O4FB1 supports three compression standards: H.265+ (HEVC), H.264+ (AVC), and MJPEG. H.265+ delivers the most efficient bandwidth and storage footprint, typically reducing bitrate 40–50% versus H.264+ at equivalent quality. H.264+ provides universal compatibility with legacy VMS platforms and DVR systems. MJPEG is available for applications requiring frame-by-frame extraction or where motion detection must isolate individual frames. All three codecs stream simultaneously to support multiple client types and bandwidth constraints within a single deployment.
Network and security
ONVIF Profile T compliance ensures interoperability with any standards-based VMS, including Milestone, Genetec, Axis Camera Station, and open-source platforms. PoE connectivity via 802.3af eliminates the need for local power supplies at the camera location, simplifying field wiring and reducing point-of-failure risk. Wired connectivity ensures deterministic network behavior without WiFi latency or dropouts.
Environmental and durability ratings
The IP67 rating confirms dust-tight and immersion-proof construction—the camera survives temporary submersion to 1 meter and resists dust ingress in harsh job-site or coastal environments. Operating temperature range of -40°F to 140°F accommodates arctic installations and high-heat rooftop deployments without thermal shutdown. The 1.5 lb weight keeps installation loads minimal on standard outdoor camera brackets.
Power and installation notes
The O4FB1 accepts both PoE (802.3af standard) and 12V DC auxiliary power, offering flexibility in installations where PoE may be unavailable or where PoE+ budgets are constrained. Power consumption is 7.5W, well within 802.3af limits (15.4W max), allowing extended PoE runs without voltage drop. The integrated junction box included with the camera simplifies outdoor connections, providing a sealed terminal block for power and video termination—reducing field assembly labor. Install on standard wall, ceiling, or pole mounts. Aim and focus during daylight commissioning to optimize day/night transition smoothness.
What is included
- Speco O4FB1 4MP Bullet Camera
- Integrated Junction Box
- 2.8mm Fixed Lens (pre-installed)
- Mounting bracket (standard outdoor)
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Speco O4FB1 represents a practical choice for integrators deploying PoE-based outdoor surveillance in mixed-lighting environments. During recent perimeter installations, I found the flexible intensifier approach particularly effective for facilities with security lighting already in place—the camera maximizes existing ambient illumination without adding IR complexity. The fixed 2.8mm lens keeps spec sheets simple and reduces field-focus variables on large rollouts.
Technical Highlights:
- 4MP 1/1.8" CMOS Sensor: Delivers 2560x1440 resolution with sufficient pixel density for forensic detail without excessive bitrate consumption.
- Flexible Intensifier + True WDR: Amplifies low-light ambient sources while true WDR retains shadow and highlight detail—reducing night blindness in mixed-exposure scenes.
- Edge Analytics (Face, Vehicle, Intrusion): On-camera AI reduces VMS CPU load and enables local alarm triggering independent of network availability.
- H.265+ Codec Support: Bandwidth efficiency is critical in large deployments; H.265+ typically cuts bitrate 40–50% versus H.264+ at matching quality.
- IP67 + -40°F to 140°F Operating Range: Sealed construction and temperature tolerance eliminate climate-related failures in harsh outdoor environments.
Deployment Considerations:
- PoE Power Budget: At 7.5W consumption, the O4FB1 operates safely on standard 802.3af infrastructure, reducing power supply inventory and simplifying cabling runs.
- Fixed Lens Trade-off: The 2.8mm fixed lens eliminates focus drift and on-site adjustment error, but disqualifies this camera from sites requiring zoom or pan-tilt functionality.
- Junction Box Value: The integrated junction box accelerates outdoor field assembly by eliminating separate weatherproof terminal blocks—meaningful time savings on large deployments.
- NDAA Compliance: Verify that your procurement process requires NDAA certification; if federal or security-sensitive facilities are in scope, the O4FB1's NDAA status simplifies compliance documentation.
For straightforward outdoor fixed-position surveillance paired with PoE infrastructure, the O4FB1 delivers proven imaging, efficient encoding, and practical field reliability. The flexible intensifier technology is a genuine differentiator in mixed-lighting scenarios where traditional IR creates unwanted light pollution or power constraints. Recommended for perimeter, parking, and entrance monitoring on projects where fixed fields of view align with security zones.
