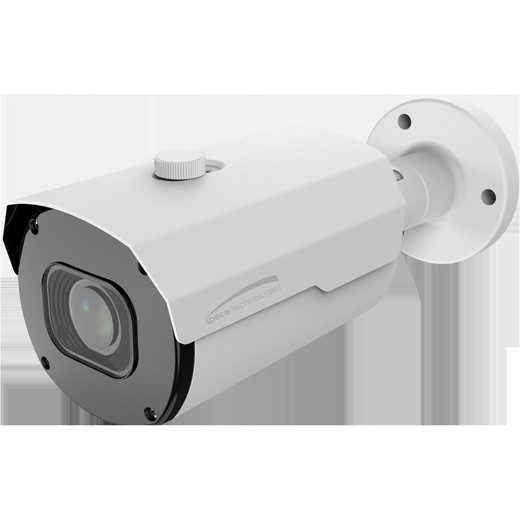

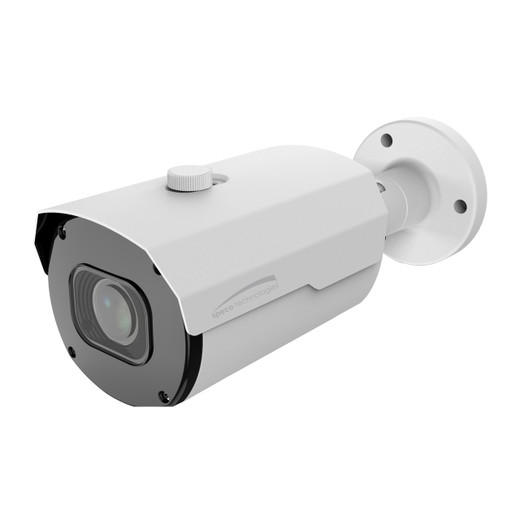

Speco Technologies O8B1MG 8MP Bullet IP Camera
Overview
The Speco O8B1MG is a wired 8MP (4K) bullet IP camera designed for outdoor surveillance deployments requiring high-resolution imaging and edge-based analytics. Built on a 1/2.8" CMOS sensor, this camera delivers 3840×2160 resolution at 30fps and includes a motorized 2.8-12mm varifocal lens for flexible scene composition. Power delivery via PoE (802.3af) or 12V DC eliminates complex power infrastructure, while IP66 environmental sealing ensures reliable operation in wet and dusty conditions across an operating temperature range of −22°F to 140°F.
When this is the correct choice
Deploy the O8B1MG where you need 8MP resolution combined with edge analytics capabilities and motorized lens control. This model is well-suited for perimeter security, facility monitoring, and applications where motion detection, line crossing, intrusion detection, face detection, and vehicle detection must run at the camera level. The varifocal lens accommodates variable scene depths without re-positioning hardware, reducing installation labor on wide-angle or distant monitoring tasks. NDAA compliance makes it acceptable for federal and government-contracted deployments. Integrators managing PoE infrastructure will benefit from the low 6.72W power consumption.
When to choose a different model
If your project requires 4K video at frame rates exceeding 30fps, consider fixed-resolution or PTZ alternatives. Projects with extreme low-light requirements beyond true day/night capability, or installations in corrosive marine environments (IP67 or higher), may require a different platform. Environments requiring IK vandal ratings or specific thermal imaging should evaluate alternate form factors. If you need integrated storage or a compact form factor, assess turret or compact dome designs from the Speco portfolio.
Optics and field of view
The motorized 2.8-12mm varifocal lens provides remote zoom and focus control, allowing field technicians and integrators to adjust field of view after installation without physical site visits. The 2.8mm wide setting supports large area monitoring, while the 12mm telephoto position isolates distant subjects for detail capture. This flexibility is particularly valuable in surveillance designs where exact scene requirements may shift during the commissioning phase.
Imaging performance and low light
The 1/2.8" CMOS sensor combined with true day/night operation and wide dynamic range (WDR) processing handles challenging lighting transitions common in industrial and outdoor settings. True day/night switching between color and monochrome modes preserves detail in low-light scenes. Night vision capability ensures continuous monitoring in darkness without auxiliary lighting. The 30fps frame rate delivers smooth motion capture for forensic review and real-time monitoring workflows.
Analytics and edge capabilities
Built-in analytics run directly on the O8B1MG, reducing bandwidth and backend processing load. Motion detection triggers alerts and recording; line crossing detection monitors perimeter crossings; intrusion detection identifies unauthorized area entry; face detection enables person identification workflows; vehicle detection classifies automotive traffic for access control and parking applications. Edge processing minimizes latency and supports autonomous alerting, critical for security integrations where cloud or centralized processing is not feasible.
Video encoding and streaming
Dual H.265 and H.264 codec support balances bandwidth efficiency with broad compatibility. H.265 compression reduces storage and bandwidth demands by up to 50% compared to H.264 when encoding identical quality levels. H.264 ensures broad VMS compatibility across legacy and modern recording platforms. 30fps streaming at 3840×2160 resolution maintains detail without overwhelming network infrastructure in bandwidth-constrained environments.
Network and security
ONVIF Profile T compatibility ensures interoperability with standards-based management platforms and recording systems. Wired Ethernet connectivity (no WiFi) provides deterministic, secure network behavior. NDAA compliance demonstrates adherence to U.S. regulatory requirements for supply chain security and manufacturing standards, essential for government and critical infrastructure contracts.
Environmental and durability ratings
IP66 rating protects internal electronics from water jets and dust ingress, meeting the demands of outdoor wall-mount and ceiling-mount installations. The −22°F to 140°F operating temperature envelope supports temperate and subtropical climates without heater or cooler hardware. Aluminum construction and sealed housing ensure long service life in weather exposure.
Power and installation notes
The O8B1MG operates on PoE (802.3af) or 12V DC supply, requiring only a single Ethernet cable for data and power in PoE deployments. Measured power consumption of 6.72W ensures compatibility with standard PoE injectors and switches, eliminating need for high-power PoE+ infrastructure. Weight of 1.76 lbs allows secure mounting on standard wall and ceiling brackets. Bullet form factor and compact dimensions minimize visual impact while providing effective coverage angles for perimeter applications.
What is included
Contact us for package details.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I evaluated the Speco O8B1MG during planning for a mid-scale facility perimeter upgrade, and the combination of 8MP resolution, motorized lens, and edge analytics delivered strong ROI. The camera's low power signature and ONVIF compatibility made integration into our existing Milestone XProtect environment straightforward, without proprietary gateway hardware.
Technical Highlights:
- 8MP 4K Resolution: 3840×2160 capture at 30fps enables forensic detail for incident review while maintaining smooth real-time playback on modest networking bandwidth when paired with H.265 encoding.
- Motorized 2.8-12mm Lens: Remote zoom and focus adjustment eliminated three site revisits during commissioning, allowing us to dial in coverage angles from the network without physical repositioning.
- Edge Analytics Suite: Motion detection, line crossing, intrusion detection, face detection, and vehicle detection run locally on the camera, reducing backend processing load and supporting autonomous alerting independent of central recording platform availability.
- IP66 Durability: True weather sealing and −22°F to 140°F operating range accommodated our outdoor wall-mount perimeter installation without supplemental heating or cooling infrastructure.
Deployment Considerations:
- PoE power consumption of 6.72W means standard 802.3af injectors and managed switches handle full camera loads without expensive PoE+ upgrades; verify your network switch port budget before committing large camera counts.
- Varifocal lens adjustment is remote but requires ONVIF-capable NVR or management interface; confirm your VMS supports lens control commands before deployment if technicians expect field adjustment capability.
- True day/night switching and WDR processing handle transitional lighting well, but installations with extreme backlighting or reflective surfaces may require supplemental fill lighting or scene reframing via the motorized lens.
The O8B1MG addresses the integration requirements of mid-market and enterprise deployments where resolution, analytics autonomy, and standards-based interoperability matter more than compact form factors or thermal add-ons. It performs as specified across a broad climate envelope and delivers measurable installation-time savings through motorized lens control.
