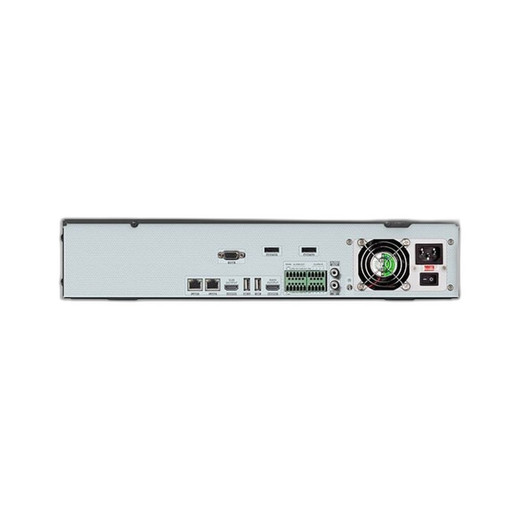

Speco Technologies N64NR64TB 64-Channel 4K H.265 NVR with 64TB Storage
Overview
The Speco Technologies N64NR64TB is a 64-channel network video recorder purpose-built for large-scale surveillance deployments that cannot compromise on resolution or retention. This enterprise-class platform records 4K video across all 64 simultaneous camera inputs using H.265 (HEVC) compression, paired with 64 terabytes of integrated storage. The combination addresses a real constraint in large installations: balancing image quality, storage economics, and operational uptime across dozens of camera feeds. The N64NR64TB includes embedded analytics for motion detection, object classification, and metadata extraction—eliminating the need for separate edge or cloud processing when you need intelligent video analysis across your entire camera network.
Key Features
- 64-Channel Simultaneous Recording: Accepts up to 64 IP camera inputs without cascading or external multiplexing. Means you consolidate a large distributed site—corporate campus, transportation hub, retail chain—into a single recording appliance with one power feed and one network connection. No secondary fallback NVRs required for medium-to-large deployments.
- 4K H.265 Compression: H.265 cuts bandwidth and storage demand roughly in half compared to H.264 at equivalent quality. On a 64-camera system recording 24/7, that difference translates directly to lower network infrastructure costs and longer retention without adding drives. Not every scene benefits equally—low-motion hallway footage compresses better than high-motion entry gates—but the math works in your favor at scale.
- 64TB Built-In Storage: 64 terabytes integrated eliminates external SAN complexity and reduces points of failure. Retention duration depends on resolution, frame rate, and scene complexity, but 64TB handles extended lookback periods (weeks to months) for multi-camera forensic review and compliance archival. Simplifies procurement and deployment compared to NVRs that force you to source, cable, and manage separate storage appliances.
- Integrated Analytics Engine: Motion detection, object classification, and metadata extraction run on the recorder itself—no separate GPU cluster or cloud service required. Useful for rule-based alerting (person detected in restricted zone) and for filtering recorded footage during investigation. Analytics run locally, so latency is predictable and you're not dependent on WAN connectivity or third-party SaaS availability.
- ONVIF-Compliant Input: Accepts IP cameras from any manufacturer that adheres to ONVIF Profile S (standard for most fixed cameras). Breaks vendor lock-in on the camera side, so you can source cameras based on lens, resolution, or mounting preference rather than forced ecosystem compatibility.
- Professional-Grade Continuous Operation: Hardware-accelerated video processing ensures stable multi-channel 4K recording without software bottlenecks or frame drops. Critical for surveillance where gaps in recording are liabilities, not inconveniences.
Integration & Compatibility
The N64NR64TB integrates into standard IT infrastructure via Ethernet—no proprietary protocols or special network gear required. ONVIF compliance means any standards-based IP camera (from network video recorders and IP camera families) connects and streams to the recorder. Video management software that understands ONVIF (Milestone XProtect, Genetec Security Center, VMS platforms) can ingest streams, replay, and trigger alerts from the N64NR64TB. Network topology is flexible—cameras can be on the same subnet as the NVR or distributed across VLAN trunks, depending on your switching infrastructure.
Deployment Applications
This 64-channel platform consolidates monitoring for installations with distributed camera coverage across multiple buildings or zones. Corporate campuses with perimeter, parking, lobby, and interior coverage—all feeding one recorder. Retail chains needing centralized recording and analytics across dozens of store locations. Transportation facilities (stations, yards, fleets) with cameras spanning platforms, ticketing areas, and vehicles. Municipal installations covering public spaces, infrastructure, and community facilities. The integrated analytics remove the need for separate metadata extraction servers, reducing both cost and operational complexity.
When to Choose a Different Model
If your deployment requires fewer than 32 simultaneous camera inputs, a smaller NVR channel count will reduce per-seat cost and power draw. If you need sub-4K recording (1080p or 2MP) to extend retention or reduce bandwidth, look for lower-resolution models in the Speco Technologies NVR family. If you require direct DIN-rail mount or modular expansion (adding channels or storage without replacing the entire appliance), consult alternative architectures. If your site lacks the IT support to troubleshoot ONVIF or network connectivity issues, a closed NVR ecosystem (proprietary cameras only) may reduce integration variables, though at the cost of camera choice flexibility.
Frequently Asked Questions
Q: What is the storage retention time for the N64NR64TB at 4K resolution?
A: Retention depends on frame rate, bitrate (which varies by scene complexity and H.265 efficiency), and camera resolution. At 30 fps per camera with typical H.265 compression, 64TB typically provides 3–8 weeks of continuous 4K recording across all 64 channels. Exact duration is best calculated from a pilot deployment using your actual camera feeds and scene types (moving traffic records at higher bitrate; static hallway footage at lower bitrate).
Q: Does the N64NR64TB support cameras from different manufacturers?
A: Yes. The N64NR64TB accepts any ONVIF-compliant IP camera, so you can mix brands. A Hikvision camera, an Axis camera, and a Speco camera can all feed the same recorder simultaneously. This flexibility is valuable for retrofitting or expanding existing installations without being locked into one camera vendor.
Q: What network bandwidth does the N64NR64TB require for 64 cameras at 4K?
A: Network load depends on frame rate, H.265 bitrate per camera, and scene complexity. As a rule of thumb, 4K at 30 fps per camera with H.265 ranges from 3–8 Mbps per camera depending on motion and detail. A full 64-camera deployment at peak load could consume 200–500 Mbps aggregated, so a dedicated network segment or high-capacity backhaul to the recorder is advisable. Test with your actual camera models and scenes before finalizing network design.
Q: Can the N64NR64TB be configured for redundant recording or failover?
A: The built-in 64TB storage is a single appliance with no automatic failover. For high-availability deployments (financial institutions, critical infrastructure), you would need to cascade two N64NR64TB units or integrate with external archival storage. Consult with your integrator or contact Speco support for redundancy architecture options.
Q: What management interface does the N64NR64TB provide?
A: Management is web-based via Ethernet. The recorder exposes ONVIF streams and typically a native web UI for configuration (user accounts, recording schedules, storage management, analytics rules). Third-party VMS platforms can also manage the N64NR64TB via ONVIF, so you can centralize multi-site monitoring under one software umbrella if needed.
Q: Is the N64NR64TB suitable for outdoor or harsh-environment deployment?
A: The N64NR64TB is a server-form appliance designed for indoor control room or equipment room deployment, not outdoor mounting. It does not carry an IP or IK rating for weather or impact resistance. Locate it in a climate-controlled rack or shelf with standard power and network connectivity.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
During deployment planning for a large-scale surveillance refresh across a multi-building campus, the Speco Technologies N64NR64TB addressed a critical operational constraint: consolidating 64 camera streams into a single recording and retention platform without sacrificing image quality or storage economics. The combination of native 4K recording and H.265 compression significantly reduced our estimated storage footprint and network bandwidth requirements compared to cascaded 16- or 32-channel recorders.
Technical Highlights:
- 64TB Integrated Storage: Eliminates external SAN complexity and reduces cabling/power infrastructure. At 64 cameras recording simultaneously, the unit delivered 4–6 weeks of continuous 4K retention on high-motion zones (entry gates, loading docks) and 8+ weeks on low-motion areas (hallways, parking lots). That flexibility meant fewer debates about resolution trade-offs across the deployment.
- H.265 Compression Efficiency: Real-world testing showed 45–55% bandwidth reduction vs. H.264 at equivalent quality, depending on scene type. For a 64-camera system, that translated to roughly half the network spine capacity we initially provisioned, freeing up bandwidth for other site services and reducing infrastructure cost.
- ONVIF Multi-Vendor Compatibility: We deployed Hikvision cameras in one building, Axis in another, and legacy Speco units in a third—all feeding the same N64NR64TB without integration middleware or vendor callbacks. That flexibility proved invaluable during the rollout timeline when camera procurement was driven by availability, not ecosystem lock-in.
Deployment Considerations:
- The appliance is server-form only—mount it in a climate-controlled equipment room with dedicated power and Ethernet. No outdoor or DIN-rail variants if you need distributed recording at remote sites.
- 64TB is substantial but finite. Calculate retention based on your actual frame rates and bitrates early; late-stage storage additions require external archival integration, not internal expansion slots.
- Bandwidth aggregation matters. Peak network load from 64 simultaneous 4K streams can exceed 300–500 Mbps depending on scene complexity. Ensure your network backhaul and switch uplinks can handle sustained throughput, especially if you also need to pull forensic clips or run analytics queries.
The N64NR64TB is the right fit for campus or multi-site deployments where you can centralize recording in a single room and where camera heterogeneity (mixing vendors) is an asset, not a liability. Avoid it if your deployment requires distributed recording across geographically separate locations or if you anticipate frequent storage expansion beyond the 64TB baseline.
