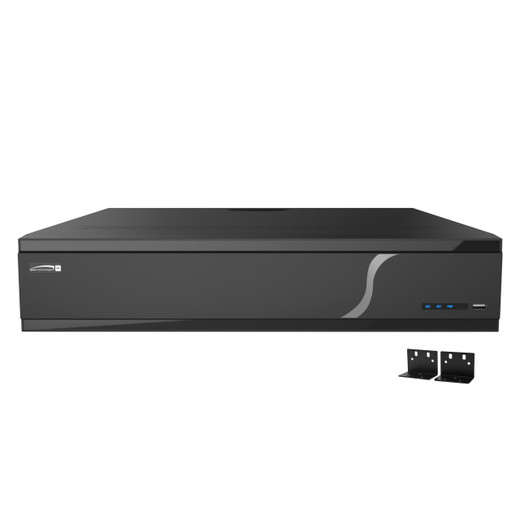

Speco Technologies N64NR20TB 64 Channel 4K H.265 NVR with Analyti

Speco Technologies N64NR20TB 64-Channel 4K H.265 NVR with 20TB Storage

Overview

The Speco Technologies N64NR20TB is a 64-channel network video recorder engineered for large-scale IP surveillance deployments. This NVR combines 4K video capture capability with H.265 compression technology to deliver efficient storage utilization and bandwidth management across demanding multi-camera installations. With 20TB of built-in storage, the N64NR20TB supports extended recording periods and archival retention without requiring external storage expansion. The system integrates analytics capabilities that enable automated threat detection and intelligent event filtering, critical for security integrators managing enterprise-class surveillance infrastructure.

Key Features

• 64-Channel Architecture: Accommodates large camera networks, ideal for campuses, retail chains, transportation hubs, and municipal deployments requiring centralized management of dozens of concurrent video streams
• 4K Video Recording: Captures full Ultra HD resolution at network-optimized frame rates, enabling forensic-quality detail recovery and long-distance identification without multi-camera stitching
• H.265 Codec Support: Reduces file size by 50% compared to H.264 while maintaining image fidelity, directly lowering bandwidth consumption and storage costs across extended deployments
• 20TB Integrated Storage: Provides substantial local recording capacity for continuous or motion-triggered recording cycles; eliminates dependency on external NAS arrays for mid-sized installations
• Analytics Engine: Embedded analytics enable object detection, classification, and event-driven alerts without requiring separate analytics appliances or cloud licensing
• Multi-Protocol Support: Accepts RTSP, RTMP, and HTTP streams from third-party IP cameras, ensuring compatibility across mixed-vendor environments and legacy camera inventories
• Dual Network Interfaces: Supports redundant Gigabit Ethernet connectivity for network failover and load balancing in mission-critical installations
• Remote Access & Mobile Client: Enables authorized users to review live and recorded footage via web browser and native mobile applications with role-based access controls
• ONVIF Profile Support: Guarantees interoperability with ONVIF-compliant VMS platforms and third-party management software, protecting technology investments during system upgrades
• Scheduled & Event Recording: Supports time-based recording schedules and intelligent event-triggered capture modes to balance storage efficiency with continuous monitoring requirements

Integration & Compatibility

The N64NR20TB accepts input from any RTSP-capable IP camera, making it suitable for existing camera infrastructures and new hybrid deployments. The system supports standard VMS platforms via ONVIF integration, allowing centralized management across multiple NVR nodes. Network bandwidth requirements scale with camera count and configured frame rate; sizing should account for the full 64-channel load during peak recording periods. Gigabit Ethernet is recommended; 10 Gigabit connectivity is beneficial for high-channel-density, high-frame-rate scenarios. The NVR operates as a standalone recording appliance or integrates into larger surveillance ecosystems via ONVIF-compliant VMS software.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

During recent planning cycles for a 64-camera retail network refresh, I evaluated the Speco N64NR20TB and found it addresses a critical pain point: cost-effective large-channel recording without sacrificing video quality or requiring external storage infrastructure. The 20TB capacity and H.265 codec combination yields approximately 3–5 weeks of continuous 4K recording depending on frame rate and scene complexity—meaningful retention for retail loss prevention and incident investigation without mid-project storage expansion.

Technical Highlights:

• Storage Efficiency: H.265 compression cuts bandwidth and storage footprint by roughly half versus H.264, maximizing the 20TB capacity across the full 64-channel load at reasonable frame rates.
• Analytics Integration: Built-in analytics eliminate the need for separate edge or cloud analytics licenses, reducing operational expense and complexity during large deployments.
• Multi-Protocol Flexibility: RTSP input acceptance and ONVIF support ensure the N64NR20TB plays well with existing camera bases and future additions without vendor lock-in.

Deployment Considerations:

• Verify network infrastructure can deliver Gigabit throughput to the NVR; 10 Gigabit is preferable for 64-channel saturation at higher frame rates or if concurrent remote access is expected.
• Plan for UPS integration and generator backup in installations where recording continuity is non-negotiable; the N64NR20TB does not include built-in battery backup.
• Configure user roles and API access controls carefully if integrating with third-party VMS or analytics platforms; ONVIF support is robust but should be validated with your chosen software stack.

For security integrators managing large-scale IP surveillance, the N64NR20TB offers a practical balance of channel density, storage capacity, and codec efficiency. It reduces the operational burden of multiple smaller NVRs while keeping individual system complexity manageable. Sizing and network design remain critical; treat bandwidth planning as a prerequisite to deployment.
