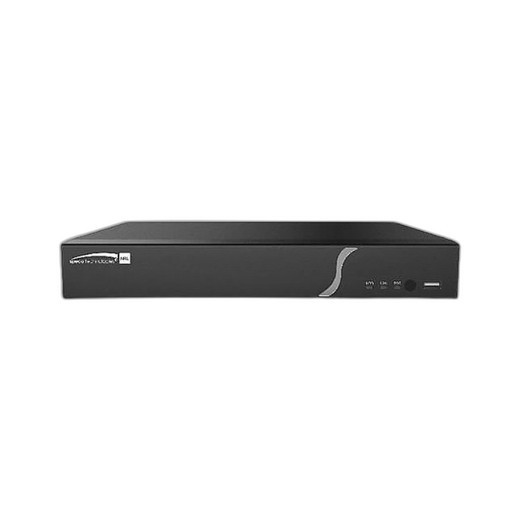

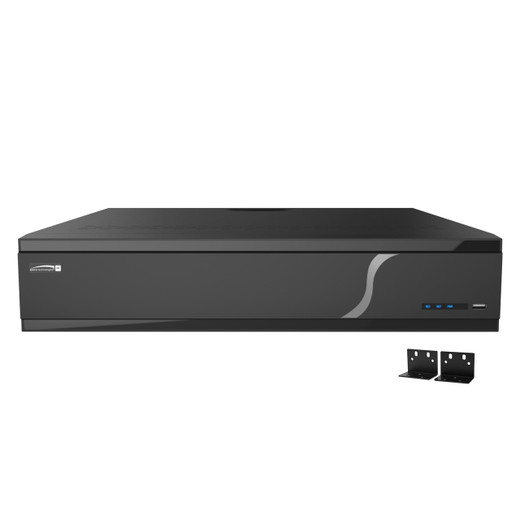

Speco Technologies N64NR 64-Channel 4K Network Video Recorder
Overview
The Speco Technologies N64NR is a 64-channel network video recorder engineered for medium to large-scale surveillance deployments that demand 4K image quality, built-in video analytics, and efficient codec performance. This PoE-powered NVR captures up to 16MP resolution (3840×2160) at 30 fps across all 64 simultaneous channels, employing H.265 compression to cut storage requirements roughly in half compared to H.264—a meaningful advantage when recording 24/7 across dozens of cameras. The N64NR integrates line crossing detection, people counting, license plate recognition (LPR), and vehicle detection directly into the recorder, eliminating the need for external analytics appliances and accelerating alarm workflows in high-density surveillance environments.
Key Features
- 64-Channel Capacity at 4K: Manages simultaneous monitoring and recording of 64 IP camera streams at 16MP resolution with centralized playback and archival. Real-world deployment benefit: scales from retail to municipal networks without additional appliances.
- H.265 Codec with H.264 Fallback: H.265 reduces bitrate 40–60% depending on scene complexity, cutting bandwidth costs and storage churn. H.264 backward compatibility means you can mix new 4K cameras with legacy 1080p or 2MP infrastructure without format conflicts or re-encoding overhead.
- 30 fps Across All Channels: Delivers smooth motion capture for forensic review and real-time operator monitoring. At 4K resolution, 30 fps is sufficient for detail capture in parking facilities, traffic enforcement, and perimeter monitoring where subject speed is moderate.
- Integrated Analytics Engine: Line crossing detection, people counting, license plate recognition, and vehicle detection run on the N64NR itself. Benefit: you avoid purchasing and managing a separate edge analytics appliance, reducing rack space, power draw, and deployment complexity. Detected events trigger immediate alerts and can be indexed for rapid search during post-incident investigation.
- 8 SATA HDD Bays: Supports expandable local storage architecture for extended retention. Enterprise-grade surveillance drives (manufacturer-specified) can be installed for 24/7 duty cycles. Storage capacity depends on codec, resolution, and frame rate—H.265 at 16MP yields significantly longer retention per terabyte than H.264.
- PoE Power Architecture: Operates on standard 802.3af PoE, drawing under 13W. Eliminates the need for a dedicated power supply and reduces cable infrastructure in retrofit deployments. Single Ethernet connection feeds both video streams and operational power—simplifying deployment in equipment closets and remote facilities.
- Two-Way Audio: Built-in audio input/output support for microphones and speakers. Enables remote facility announcements, intercom with field personnel, or incident-scene communication without external audio hardware.
- Day/Night Operation: Full-spectrum 24/7 imaging capability ensures continuous surveillance in lighting conditions ranging from direct sunlight to complete darkness. No blind spots during transitions between day and night.
- Industrial Operating Range: Rated for −10°C to 50°C (14°F to 122°F) operation, supporting deployment in unheated equipment rooms, outdoor cabinets, and climate-variable warehouse environments where standard commercial gear would fail.
Integration & Compatibility
The N64NR accepts ONVIF-compliant IP cameras from any manufacturer, preventing vendor lock-in and allowing integrators to source cameras on performance, price, and form factor without recorder constraints. Dual codec support (H.265 and H.264) ensures seamless integration with both current-generation and legacy camera bases. Centralized management of 64 concurrent streams via a single recorder interface reduces operator cognitive load and supports high-density surveillance architectures across transportation hubs, large retail facilities, parking structures, and enterprise campuses.
Typical Applications
The N64NR excels in transportation and logistics environments—toll plazas, parking facilities, vehicle checkpoints, and traffic enforcement zones—where LPR and vehicle detection provide real-time license plate capture and vehicle classification indexing. Retail chains and municipal surveillance networks benefit from the 64-channel density and people counting analytics for foot-traffic analysis and perimeter breach detection. Critical infrastructure protection and enterprise campus security leverage the integrated analytics and 4K resolution for forensic detail recovery during incident investigation.
When to Choose a Different Model
If your deployment requires fewer than 16 channels, a smaller Speco Technologies recorder in the same family will reduce capital cost and power consumption. For sites where H.265 compatibility across all existing cameras is unavailable or where legacy H.264-only infrastructure dominates, the N64NR's dual-codec architecture still applies—but confirm ONVIF Profile S support on all downstream cameras before purchase. If your application demands sub-zero operating temperatures below −10°C or continuous operation above 50°C, consult Speco Technologies technical specifications for environmental ratings on alternative models. Conversely, if you require more than 64 channels, cascading multiple N64NR recorders with a central management appliance is a viable scaling path.
Frequently Asked Questions
Q: Does the N64NR support ONVIF Profile S and G cameras?
A: Yes. The N64NR accepts standard ONVIF-compliant IP cameras, enabling mixed-vendor deployments. Confirm your camera model list supports either Profile S (streaming) or Profile G (analytics) to maximize feature utilization.
Q: What is the maximum storage capacity for the N64NR?
A: The N64NR features 8 SATA HDD bays. Maximum per-drive capacity depends on current enterprise surveillance drive specifications; consult the manufacturer datasheet for the latest supported drive sizes. H.265 compression will yield roughly double the retention period compared to H.264 on identical drive capacity.
Q: Can the N64NR run analytics on all 64 channels simultaneously?
A: Yes. The integrated analytics engine (line crossing, people counting, LPR, vehicle detection) operates across all 64 channels at the same time. No separate appliance is required.
Q: What power budget does the N64NR consume on PoE?
A: The N64NR draws under 13W via standard 802.3af PoE. This is well within typical managed PoE switch budgets and eliminates the need for local AC power supplies or UPS at the recorder location.
Q: Is the N64NR suitable for outdoor mounting?
A: The N64NR is rated for −10°C to 50°C (14°F to 122°F) operation, making it suitable for indoor equipment closets and unheated outdoor enclosures. It is not intended for direct exposure to rain or extreme weather; house it in a climate-controlled cabinet or NEMA enclosure for outdoor deployment.
Q: What file formats does the N64NR export for forensic review?
A: Confirm with Speco Technologies for specific export codecs and container formats. Standard ONVIF integration typically supports RTSP streaming and local file export in common video formats compatible with third-party forensic and VMS software.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The N64NR lands in a practical middle ground—dense channel count, native 4K capture, and integrated analytics eliminate dependency on external appliances. If your deployment centers on license plate recognition or vehicle classification (toll plazas, parking enforcement, checkpoints), the built-in LPR and vehicle detection engines on the N64NR will justify the recorder cost immediately by reducing your analytics stack.
Technical Highlights:
- H.265 Codec Efficiency: 40–60% bitrate reduction vs. H.264 across 64 simultaneous 16MP streams translates to measurable OPEX savings over three to five years. On a 24/7 operation recording at 30 fps, that's the difference between refreshing drives every 18 months versus 36 months per bay.
- 64-Channel Density with Integrated Analytics: Line crossing, people counting, LPR, and vehicle detection run on the N64NR itself—no edge appliances, no licensing per stream, no additional power or rack space. For parking facilities or traffic enforcement, this eliminates a costly middleware tier.
- PoE Power Budget Under 13W: Standard 802.3af PoE means no dedicated AC feed or UPS required at the recorder. Equipment closets and outdoor cabinets remain viable deployment sites. Retrofit sites benefit from a single Ethernet run replacing what would have been both power and signal cables.
Deployment Considerations:
- Storage Planning is Non-Optional: H.265 efficiency helps, but 64 channels at 16MP and 30 fps still consume significant disk bandwidth. Confirm your SATA bay drive count and capacity before purchase; mixed-drive configurations are not recommended. Plan for enterprise surveillance drives rated for 24/7 duty.
- ONVIF Camera Roster Verification: The N64NR accepts ONVIF but does not guarantee every brand or model. Verify Profile S support on your camera list during design phase—incompatible or partially-compliant cameras will cause codec negotiation issues or dropped streams at scale.
- Temperature Limits Outdoor Enclosure Requirement: Operating range stops at −10°C and 50°C. In hot climates (data centers, sun-exposed cabinets above 50°C) or cold weather sites (unheated warehouses below −10°C), you will need climate conditioning. Standard equipment closets are fine; direct outdoor mounting without enclosure is not.
The N64NR is the right call for integrated LPR deployments, municipal surveillance networks, and retail chains where 64 channels and built-in analytics reduce system complexity and capital cost. If your priority is maximum density with minimal external dependencies, this recorder delivers.
