Speco Technologies D4WVNPM10TB Wall-Mount 4-Channel TVI DVR with Integrated Storage
Overview

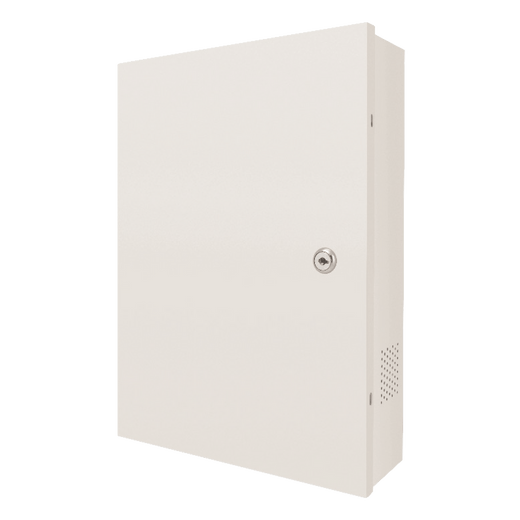

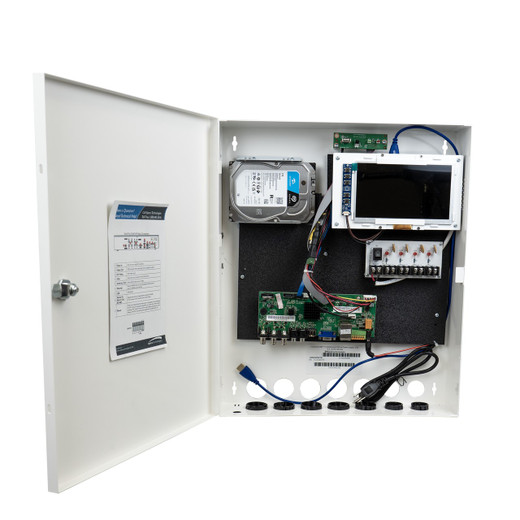

The D4WVNPM10TB is a wall-mount enclosure DVR that combines a 4-channel 4MP TVI recorder, 10TB of installed storage, and an integrated power supply in one sealed housing. Instead of racking a separate recorder, drive, and PSU, the whole recording chain mounts as a single white wall unit — a fit for small offices, retail back rooms, or utility closets where there's no rack and no room for a conventional NVR enclosure. Storage is preinstalled at 10TB, so there's no drive sourcing or RAID configuration before commissioning.
Compatibility
Built for Speco's TVI analog camera line — pair it with Speco HD-TVI bullet, dome, or turret cameras rated up to 4MP to match the DVR's per-channel ceiling. Mixing lower-resolution TVI cameras is supported, but you won't exceed 4MP on any single input. This is an analog/TVI platform, not an IP recorder — it won't accept ONVIF or RTSP camera streams. For coax runs beyond typical TVI distance limits, plan a PoE switch only if you're pairing this deployment with a separate IP camera segment on the same network. For sites standardizing on IP cameras instead, look at Speco's network video recorders line.
Installation Notes
The wall-mount housing and integrated power supply eliminate a separate PSU mount and DVR shelf — run coax and power to one enclosure point. Indoor-rated only, so keep it out of unconditioned exterior spaces, garages with humidity swings, or anywhere outside a controlled indoor environment. A monitor is included, useful for sites without an existing display for local live view and playback. Before specifying camera count and cable runs, a PoE and cable planning guide is worth a read even on a TVI job, since most sites now run a hybrid analog/IP mix. For broader system design context, see the Speco Technologies catalog and the video surveillance buying guide.
What's in the Box
- 1x 4-Channel 4MP TVI DVR
- 1x 10TB hard drive (preinstalled)
- 1x Integrated power supply
- 1x Monitor
