Speco Technologies D4WVNP8TB Wallmount 4-Channel TVI DVR
Overview

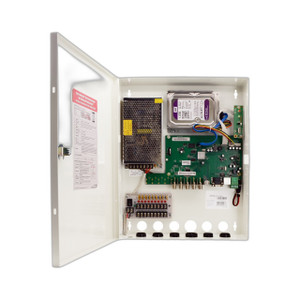

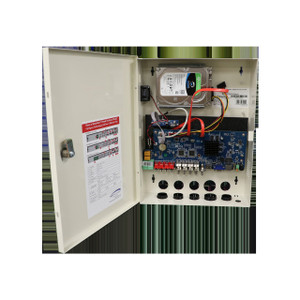

The D4WVNP8TB is a 4-channel HD-TVI DVR built into a white wallmount enclosure with 8TB of storage already installed and an integrated power supply — no external adapter to mount separately, no rack required. It fits small-format deployments where a rack-mount DVR is overkill: single-office installs, retail back rooms, or utility closets where the recorder needs to hang flush on a wall near the panel it's protecting. H.264 compression keeps the 8TB allocation practical for continuous 4-channel recording without forcing aggressive retention cutbacks. Two-way audio support means you can pair a mic and speaker for on-site talk-down at the recording point, not just video capture.
Compatibility
Built for Speco's HD-TVI camera lines — pair it with Speco TVI-series analog cameras across the 4-channel input bank. The DVR ships in this listing with 8TB installed, but the same chassis is offered in other capacities from 1TB to 8TB (see model variants), so confirm D4WVNP8TB specifically if 8TB is the target capacity. Storage uses a Serial ATA interface, meaning field capacity upgrades or drive swaps use standard SATA hardware rather than a proprietary drive sled.
Installation Notes
Power input is 12VDC — the unit accepts 3A or 5A 12VDC supply, and since the power supply is integrated into the wallmount housing, there's no separate brick to fish through a wall cavity. Rated for indoor environments only, so keep it off exterior walls or unconditioned spaces exposed to humidity swings. At 11.8 x 9.9 x 2.0 in and 16 lbs, confirm the wall anchor points can carry the load before mounting — this is heavier than a typical plastic enclosure due to the drive and integrated supply.
What's in the Box
- 1x D4WVNP8TB 4-channel TVI DVR with 8TB storage pre-installed
- 1x Integrated power supply
