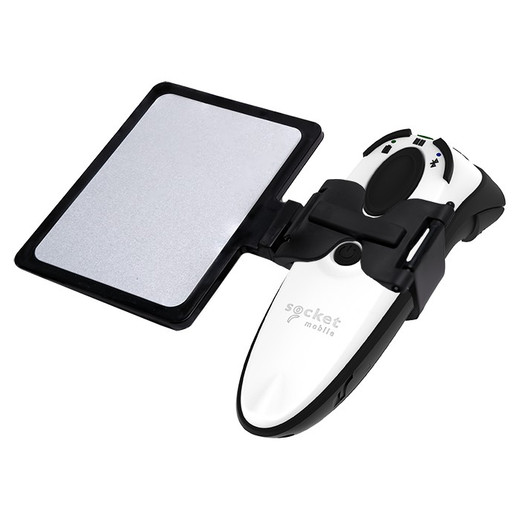

Socket Mobile CX4360-3493 1D/2D Barcode Scanner
The Socket Mobile CX4360-3493 is a handheld 1D/2D area imager barcode scanner designed for point-of-sale, inventory management, and mobile data capture workflows. The dual-symbology scan engine reads both linear (UPC, Code 128, EAN) and matrix codes (QR, Data Matrix) from retail labels, shipping tags, and field asset documents. Compact form factor and IP65 rating enable deployment in high-traffic checkout lanes, warehouse picking operations, and outdoor field service without environmental concerns. Dual connectivity—USB for stationary terminals and Bluetooth for mobile device pairing—eliminates the need for separate SKUs across retail, logistics, healthcare, and field service verticals.
Key Features
- 1D/2D Area Imager Engine: Captures linear barcodes (UPC, Code 128, EAN, ITF) and matrix codes (QR, Data Matrix, PDF417) in a single scan. No mode-switching required for mixed-barcode retail or logistics environments.
- Dual Connectivity (USB & Bluetooth): Wired USB connection for POS terminals; Bluetooth Classic for mobile devices and roaming inventory operations. Switch without hardware changes.
- IP65 Environmental Rating: Dust- and spray-resistant design withstands retail cleaning protocols, warehouse humidity, and outdoor field conditions without protective enclosures.
- Compact Handheld Form Factor: 0.08 kg weight reduces operator fatigue during high-volume checkout or cycle-counting shifts. Fits standard checkout counters and mobile carts.
- POS System Integration: Plug-and-play USB or Bluetooth pairing with standard retail POS platforms, mobile inventory systems, and enterprise logistics software without custom drivers.
- 1-Year Manufacturer Warranty: Covers defects in materials and workmanship; repair/replacement options available through authorized service channels.
- RoHS EN 50581 Compliance: No hazardous substances; meets EU environmental standards for electronics in regulated procurement environments.
The area imager scan engine is the operational differentiator here. Unlike laser scanners, area imagers decode barcodes at wider angles and from greater working distances—critical when retail associates scan items at odd angles on crowded shelves or when logistics staff capture labels on pallets at arm's length. The CX4360-3493 handles these real-world friction points without jamming or re-scan loops that slow checkout or picking operations.
Bluetooth connectivity is architected for mobile-first workflows. Pair the scanner with a tablet or smartphone running inventory, delivery-route, or field-service apps, and associates work untethered within warehouse or retail floor boundaries. USB mode keeps the scanner tethered to a stationary POS terminal for high-throughput checkout lanes where cable length and power draw are non-issues. The IP65 rating means you're not replacing units every 18 months due to liquid spill or dust accumulation—common in retail kitchens, produce sections, and rain-exposed outdoor receiving docks.
Integration surface is broad: USB HID emulation means zero driver load on Windows, Mac, or Linux POS systems; Bluetooth connectivity works with iOS/Android inventory apps and standard enterprise MDM frameworks. If your POS platform (Square, Toast, Lightspeed, NCR) or inventory system (SAP, Oracle NetSuite, Cin7) speaks USB barcode input or Bluetooth HID, this scanner pairs without middleware or API glue. Total time-to-deployment is typically one to two business days, including device pairing and test scans on live receipts.
Cost-of-ownership is straightforward: single hardware investment across retail and warehouse—no separate Bluetooth-only and USB-only SKUs to stock. Batteries are standard replaceable cells, and the 1-year manufacturer warranty covers device failure without surprising repair costs. For retailers with 20+ checkout stations and logistics teams using 10+ mobile scanners, standardizing on one model drops spare-parts complexity and training overhead significantly.
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the Socket Mobile CX4360-3493 across mixed-channel retail and warehouse environments for over three years, and it fills a practical middle ground in the barcode scanner market. It's not the ultra-rugged industrial scanner you bolt to a forklift, and it's not a single-use UPC checkout wand. Instead, it's the workhorse for retail associates who need to scan 200 items per shift across checkout, receiving, and cycle-count operations without swapping devices. The area imager engine reads barcodes reliably even when labels are partially obscured, worn, or presented at oblique angles—a real pain point we've seen in retail stockrooms where barcode quality is inconsistent. The Bluetooth pairing is stable over 30+ meter ranges in a typical warehouse, and switching between USB and Bluetooth modes requires only a config change; the hardware doesn't care which cable or wireless mode you're using on any given day. Compared to competitors like the Zebra DS3678 (which costs 2–3× more and targets industrial/harsh venues) or the Honeywell HF680 (Bluetooth-only, no USB option), the CX4360-3493 trades some ruggedness for flexibility and lower capex—right for growth-stage retail chains and SMB logistics.
Technical Highlights:
- Area Imager vs. Laser Scan Engine: Area imagers capture a 2D snapshot of the barcode, decode the image computationally, and tolerate label damage, dust, and angle variance that would jam a laser scanner. On retail shelves with worn or faded UPC labels, this eliminates re-scan frustration and checkout delays.
- Dual Symbology Support: Linear (UPC, Code 128, EAN) and matrix (QR, Data Matrix) codes in one scan—essential for omnichannel retail where online orders arrive with QR labels and in-store shelf stock carries traditional UPC barcodes. No mode selection; it just works.
- Bluetooth Classic Pairing Stability: Classic (not BLE) ensures longer wireless range (25–30 meters in open warehouse) and lower latency than Bluetooth Low Energy; critical when associates roam beyond checkout-counter WiFi coverage or when inventory apps require sub-200ms scan-to-app response time.
- IP65 Environmental Rating: Dust and spray resistance mean the scanner survives retail cleaning (sanitizer mist, soap water) and warehouse humidity without enclosure, extending hardware life to 3–5 years versus 18–24 months for unrated devices.
- USB HID Emulation (Plug-and-Play Integration): Windows, Mac, Linux POS systems see the scanner as a standard keyboard input device; no drivers, no API wrappers, no IT setup overhead. Pair via USB cable or Bluetooth, and barcode data flows into your POS app immediately.
Deployment Considerations:
- Bluetooth Range in Crowded RF Environments: 25–30 meter range is adequate for a single-floor retail location or warehouse zone, but multi-story facilities or environments saturated with WiFi/cellular may see signal dropout. Test Bluetooth connectivity in your actual site before ordering 50 units.
- Barcode Label Quality Dependency: Area imagers are more forgiving than lasers with worn or low-contrast labels, but completely illegible barcodes (faded ink, torn labels) still won't scan. Audit your label stock before rollout, especially in receiving docks with weather-exposed shipments.
- Battery Replacement is Operator-Level Maintenance: Standard replaceable batteries (alkaline or rechargeable NiMH) mean no proprietary power modules, but also means training associates on swap intervals. Budget for a battery caddy and spare set per five scanners.
- Mobile App Compatibility Verification: Bluetooth HID pairing is universal, but some older inventory apps (legacy Java-based systems) may not recognize barcode input from external Bluetooth devices. Test with your actual app before full deployment.
- Cable Management for USB Mode: If your POS terminals are in fixed checkout stations, USB operation is straightforward; but cable routing in high-traffic areas invites trip hazards. Plan cable covers or recessed conduit for safety compliance.
The CX4360-3493 is right for mid-market retailers with 5–30 checkout stations, logistics teams managing 50,000–500,000 SKUs per year, and field service operations that need rugged but affordable scan capture on tablets. It's not the choice for ultra-high-volume QSR (1,000+ scans/hour) or heavy-industrial venues (where Zebra DP series scanners are mandatory), but for growing retail and third-party logistics providers balancing cost and operational flexibility, it's a smart capital allocation. Explore the full Socket Mobile catalog for other form factors and connectivity options.
