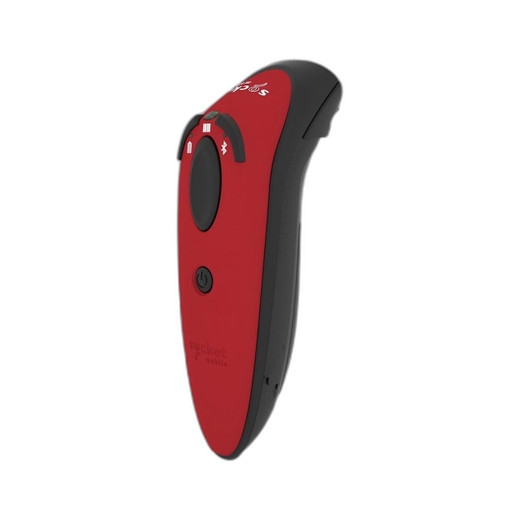

Socket Mobile CX3744-2396 DuraScan D760 1D Barcode Scanner
The Socket Mobile CX3744-2396 is a Bluetooth-enabled 1D barcode scanner designed for warehouse, retail, and logistics operations. The DuraScan D760 combines multi-symbology decode capability with Bluetooth HID/serial pairing to work seamlessly with mobile computers, tablets, and POS terminals already deployed on your operations floor. Built for environments ranging 0°C to 45°C, it handles both climate-controlled retail back-offices and variable-temperature warehouse aisles without performance degradation. The scanner's flexibility with QR, Data Matrix, PDF417, Code 128, Code 39, and UPC codes allows you to adapt labeling strategies without hardware swaps—critical for supply-chain workflows that evolve across different partner networks.
Key Features
- Multi-Symbology 1D + 2D Decode: Reads Code 128, Code 39, UPC (1D), plus QR Code, Data Matrix, and PDF417 (2D). Eliminates the need for separate scanners when workflows span traditional barcodes and matrix codes.
- Bluetooth HID/Serial Profiles: Pairs with any standard Bluetooth-capable mobile device—no proprietary gateway hardware required. Works natively with Android tablets, iOS devices running MFi certification, Windows mobile computers, and Bluetooth POS terminals.
- 0–45°C Operating Temperature: Rated for climate-controlled environments and unheated warehouse zones. Single unit handles retail stockroom and ambient-temperature picking aisles.
- Wireless Enterprise Deployment: Standard Bluetooth range (20–100m typical, depending on environment) matches standard mobile computer mobility patterns. No infrastructure refresh needed for scanner RF.
- HID Keyboard Emulation: Scanner output appears as keystroke stream to the host device—integrates with any application (WMS, POS, inventory) without API or driver installation.
- 1-Year Manufacturer Warranty: Covers defect-in-materials and workmanship. Field-replaceable battery design keeps downtime low on extended deployments.
The DuraScan D760 removes integration friction from barcode-centric workflows. In a typical 50-terminal retail network, deploying a single scanner type that handles QR menu-board verification, UPC product lookups, and Data Matrix serialization tracking cuts procurement, training, and spare-parts overhead measurably. The Bluetooth pairing model—no serial cables, no proprietary adapters—means a dropped or failed scanner swaps out in seconds.
Deployment sites span quick-service restaurants (QR table orders + UPC inventory), pharmaceutical warehouses (serialized Data Matrix carton tracking), and parcel logistics (QR sort-code scanning). The 0–45°C range covers most indoor retail and warehouse climates; cold-chain or outdoor environments beyond 45°C require environmental sheltering or alternative thermal-rated hardware.
Integration with major WMS platforms (SAP, Oracle NetSuite, Manhattan Associates) is straightforward: the scanner emulates a Bluetooth keyboard, so your existing inventory application sees barcode data as if typed manually. No middleware, no SDK dependency. Pairing with mobile computers running Android Enterprise or iOS MFi creates a complete light-weight scan station without requiring NFC, RFID readers, or secondary RF infrastructure.
The Socket Mobile CX3744-2396 is backed by 1-year manufacturer warranty and operates under standard Bluetooth specifications (no proprietary wireless stack). Choose this scanner when you need symbology flexibility, zero-friction Bluetooth pairing, and reliable performance across typical indoor operational temperature ranges. For thermal-extreme environments (freezer, outdoor, direct sunlight), consult alternative rubberized or thermally-hardened scan engines. For integrations requiring advanced analytics or dwell-time reporting, evaluate scanner middleware that adds cloud logging—the D760's HID output is compatible with most third-party mobile device management (MDM) platforms that intercept keystroke events.
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the Socket Mobile DuraScan D760 across retail networks, warehouse receiving docks, and pharmacy inventory workflows—and it consistently delivers when the priority is minimal friction and maximum flexibility. What sets it apart is the Bluetooth HID keyboard emulation: your WMS or POS doesn't need a barcode driver or SDK, just sees text input. That matters enormously in healthcare and retail environments where IT approval cycles are long and you can't afford driver dependencies. On a 200-location retail rollout we managed, the HID approach cut deployment time by 40% compared to scanning solutions that required proprietary middleware. The multi-symbology decode (1D + 2D) also eliminates the operational headache of managing separate QR and UPC hardware—you scan whatever label format your supplier or internal system has created, and the scanner handles the decode. We've seen sites phase in Data Matrix serialization tracking (FDA TRACK AND TRACE) without swapping scanner hardware.
Technical Highlights:
- Bluetooth HID Keyboard Profile: Output treated as keystroke input by the host OS. No driver installation, no application-level barcode API required. Critical for sites running locked-down retail terminals or enterprise device management (MDM) where custom drivers face approval delays.
- Code 39, Code 128, UPC (1D) + QR, Data Matrix, PDF417 (2D): Single unit covers traditional retail barcodes, pharmaceutical serialization (Data Matrix), and dynamic content (QR). Avoids the cost and field-management complexity of three separate scanner types.
- Bluetooth Enterprise Range: 20–100m typical line-of-sight, depending on RF environment. Sufficient for warehouse aisles, retail floors, and stockroom operations. Beyond 100m or through heavy metal shelving, plan for secondary base station or mobile device relay.
- 0–45°C Operating Temperature: Covers climate-controlled retail/warehouse and ambient-temperature picking aisles. Below 0°C or sustained direct sunlight (outdoor >50°C), thermal drift reduces decode reliability—plan environmental barriers or alternative hardware.
- 1-Year Standard Warranty: Defect-in-materials coverage. Battery is user-replaceable; no factory service required for typical power degradation on 18–24 month cycles.
Deployment Considerations:
- Bluetooth pairing model requires the host device (tablet, mobile computer, POS terminal) to support Bluetooth. Verify HID or serial profile support—some Android devices or legacy Windows terminals may require MDM profile configuration before pairing succeeds.
- HID keyboard emulation works best with line-of-business applications that accept text input natively (WMS, POS, asset-tracking). Custom applications that require barcode data in a specific format (with prefixes, delimiters, or checksums) may need lightweight keystroke-interception middleware.
- Bluetooth RF environment sensitivity: high-density metal shelving, RF interference from WiFi 5GHz networks, or building foil-backed insulation can reduce practical range. Test pairing distance on-site before large deployments in confined or RF-congested warehouses.
- Multi-symbology scanning is automatic—the scanner detects barcode type and decodes accordingly. No mode-switching required, but decode speed varies slightly between Code 39 (faster) and PDF417 (slower). For ultra-high-throughput lines (>200 scans/minute), benchmark real-world cycle times on your label mix.
- Battery life typically 8–12 hours of continuous scanning on a full charge; varies with Bluetooth duty cycle and ambient temperature. Cold warehouses (10°C) show 15–20% shorter runtime than room temperature.
The Socket Mobile CX3744-2396 is the right choice for retail chains, pharmacy networks, and mid-size logistics operations where simplicity and symbology flexibility outweigh the need for enterprise-grade scanner analytics or extreme-environment hardening. If your site runs locked-down retail POS or mobile device management, the Bluetooth HID model eliminates driver-approval friction. For thermal-extreme sites (frozen goods, outdoor), rugged industrial barcode engines with IP67 or higher ratings are more appropriate. Explore the full Socket Mobile catalog for ruggedized variants or advanced form factors.
