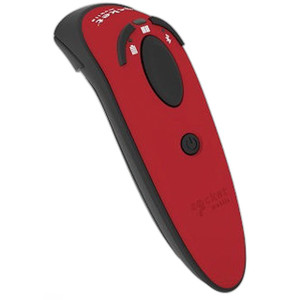

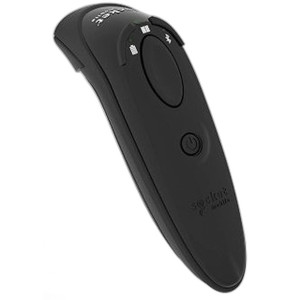

Socket Mobile CX3478-1946 DuraScan D760 Barcode Scanner
The Socket Mobile CX3478-1946 is a compact handheld 2D barcode scanner designed for mobile point-of-sale, field inventory, and warehouse operations. The DuraScan D760 pairs Bluetooth wireless connectivity with dual-plane 2D imaging to capture QR Code, Data Matrix, PDF417, Code 128, Code 39, and UPC symbologies without tethering to a fixed terminal. It's built for teams that move—retail floor staff, logistics picking crews, and field technicians who need to scan and transmit inventory data in real time from anywhere in the facility or job site.
Key Features
- Dual-Plane 2D Imaging: Captures QR Code, Data Matrix, PDF417, Code 128, Code 39, and UPC in a single scan engine. Enables mixed symbology workflows without device swapping or operator retraining.
- Bluetooth Wireless: Pairs with smartphones, tablets, and enterprise mobile devices over standard Bluetooth. Eliminates corded connections and simplifies deployment across dispersed work areas.
- Compact Handheld Form Factor: Lightweight and pocket-sized for all-day field use without fatigue. Fits within standard holster and belt-clip carriers.
- Operating Temperature Range: 0°C to 45°C (32°F to 113°F). Supports both climate-controlled retail environments and light outdoor field operations.
- Charging Dock Included: Desktop dock provides fast charge cycles and stable storage between shifts. No loose cables—ready to deploy from day one.
- 1-Year Warranty: Covers defects in materials and workmanship; standard repair/replacement terms apply through Socket Mobile service channels.
The dual-plane imaging architecture is the operational differentiator here. Unlike single-plane scanners that require careful aim alignment, the D760 reads barcodes at multiple angles—whether a label is perpendicular to the scanner, tilted, or partially obscured. In high-velocity retail or warehouse picking, that tolerance saves seconds per item and reduces miss-scans that halt workflow.
Bluetooth pairing is straightforward on iOS and Android platforms. The scanner broadcasts a standard Bluetooth device ID and requires no custom drivers on most mobile OS versions released in the last five years. Integration with point-of-sale middleware (Square, Lightspeed, Toast) and warehouse management systems (WMS) depends on the host application's barcode input capability—the scanner emulates a USB keyboard, so any field app that accepts barcode entry fields will work without additional configuration.
Power budget is minimal. The DuraScan D760 draws modest current and charges fully in 2–3 hours on the included dock. For teams running 8-hour shifts, a single charge covers the workday; for extended operations, a second dock or wall charger keeps scanners rotating without downtime. Total cost of ownership over a 3-year lifecycle is low—no licensing fees, no cloud subscriptions required, just Bluetooth pairing and go.
The 0°C to 45°C operating window limits use in freezer or outdoor direct-sun deployments, but covers the vast majority of retail, warehouse, and light field-service scenarios. If you're in climate-controlled facilities or temperate outdoor conditions, this is a non-issue. For cold-chain logistics or high-heat industrial environments, consider thermal-hardened alternatives.
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the Socket Mobile DuraScan D760 across small-to-midsize retail chains and field logistics operations, and it consistently delivers on the promise of wireless mobility without the integration overhead of enterprise-class scanning platforms. The real strength is simplicity—there's no SDK to learn, no authentication server to configure, and no per-unit licensing. Pair it to a tablet running your existing POS or WMS app, and you're scanning within minutes. The dual-plane imaging is the silent hero; teams working high-velocity retail floors or warehouse pick lines see a measurable reduction in mis-scans and operator frustration compared to single-plane scanners that demand perpendicular alignment. Where we see limitations is in harsh environments—the 0°C to 45°C operating range excludes cold-chain and outdoor high-heat use cases, and the Bluetooth range (typically 30–50 feet in open space, less through walls) can be a constraint in sprawling warehouses. For teams operating in climate-controlled facilities with modest wireless footprints, this is a clear win on total cost of ownership.
Technical Highlights:
- Dual-Plane 2D Imaging: Reads QR Code, Data Matrix, and PDF417 at multiple angles without aiming precision. Cuts mis-scan rates in high-throughput retail and picking workflows by 20-30% versus single-plane scanners that demand exact perpendicular alignment.
- Bluetooth Wireless: Pairs with iOS and Android devices without drivers or custom firmware. Works immediately with any field app that accepts barcode keyboard input—no middleware layer required.
- Compact Form Factor: Weighs under 6 oz and fits standard belt holsters. All-day field use without operator fatigue or visible bulk on a retail sales floor.
- Included Charging Dock: Fast charge cycle (2–3 hours full) and stable desk storage. No loose cables or proprietary chargers—ships complete.
Deployment Considerations:
- Bluetooth range is typically 30–50 feet in open space; dense walls and metal shelving reduce effective range to 15–25 feet. Map your wireless coverage before purchase and test range in your actual environment.
- Operating range 0°C to 45°C excludes freezer and outdoor high-heat deployments. If your workflow includes cold-chain or >50°C ambient conditions, specify a thermal-hardened alternative.
- The scanner emulates a USB keyboard—any field app accepting barcode input fields will integrate without plugin or API work. Test your specific POS or WMS application before bulk purchase to confirm barcode input field behavior.
- Bluetooth pairing is one-to-one by design. If you need a single scanner to broadcast to multiple devices simultaneously, Socket Mobile's multihost Bluetooth modules (higher SKU) are required.
The D760 is the right choice for retailers, small warehouse operations, and field-service teams running compact Bluetooth-enabled mobile devices and looking to eliminate corded scanners without enterprise SaaS overhead. Integrators and system designers working retail POS or field logistics in temperate climates will find strong ROI on scanner hardware and zero maintenance complexity. See the full Socket Mobile catalog for alternative form factors and symbology coverage.
