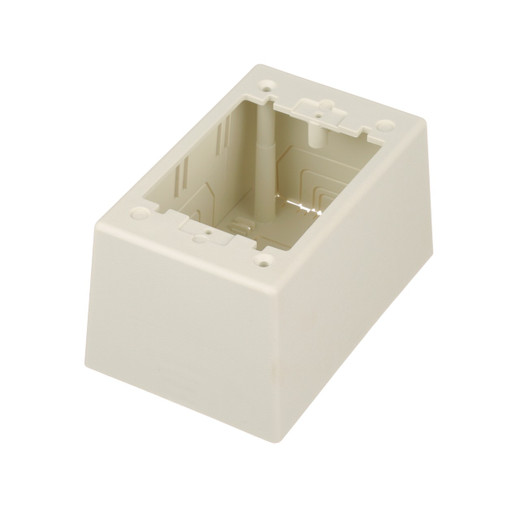

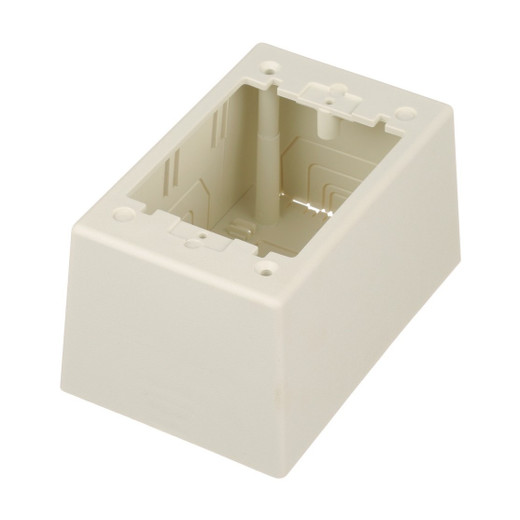

Panduit JBP1DIW Surface Raceway Junction Box
Overview
The Panduit JBP1DIW is a two-piece, screw-together deep junction box designed for surface raceway installations. It provides a clean termination point for wiring, allowing for the integration of standard NEMA single-gang faceplates or Panduit's own Pan-Way® screw-on faceplates. This box is power-rated, suitable for applications where electrical connections need to be made within the raceway system. It measures 5.19 inches long by 3.45 inches wide by 2.75 inches high, providing ample space for connections.
Compatibility
This junction box is engineered to integrate seamlessly with any Panduit Surface Raceway system. It specifically accepts Pan-Way® screw-on faceplates, ensuring a consistent aesthetic and secure mounting. Additionally, it is designed to accommodate any standard NEMA single-gang faceplate, offering flexibility for various device installations, such as power outlets or data jacks, within a Panduit raceway network.
Installation Notes
Constructed from ABS plastic and finished in Off White, the JBP1DIW is built for durability in commercial environments. Its two-piece design facilitates installation by allowing the base to be mounted and wired before the cover is secured. The box is RoHS Compliant, indicating adherence to environmental standards for hazardous substances. The dimensions are 5.19" L x 3.45" W x 2.75" H (131.9mm x 87.7mm x 69.8mm).
