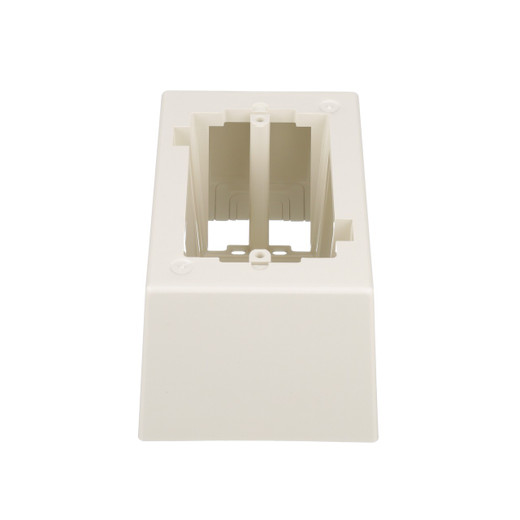

Panduit JB1DIW-A Surface Raceway Low Voltage Junction Box
Overview
The Panduit JB1DIW-A is a single-gang, one-piece deep outlet box designed specifically for low voltage applications. It integrates seamlessly with the Pan-Way® LD profile raceway system, providing a clean and organized solution for routing and terminating low voltage wiring. This box features breakout options for ½”, ¾”, or 1” diameter conduit, offering installation flexibility. Its adhesive backing simplifies mounting on various surfaces, making it suitable for structured cabling, control systems, or security device installations where clean wire management is essential.
Compatibility
This junction box is engineered to work with the Panduit Pan-Way® LD profile raceway system. It accepts Pan-Way® screw-on faceplates, ensuring a secure and aesthetically pleasing finish. Additionally, it is compatible with any standard NEMA single-gang faceplate, providing broad compatibility with common wall plates used in commercial and residential installations.
Installation Notes
The JB1DIW-A features an adhesive backing for tool-free mounting on clean, dry surfaces. For conduit integration, it includes breakout points for ½”, ¾”, or 1” diameter conduit, requiring appropriate fittings for secure connections. The box dimensions are 5.23" L x 3.48" W x 2.75" H (133.0mm x 88.5mm x 69.8mm), offering ample space for low voltage wiring connections.
