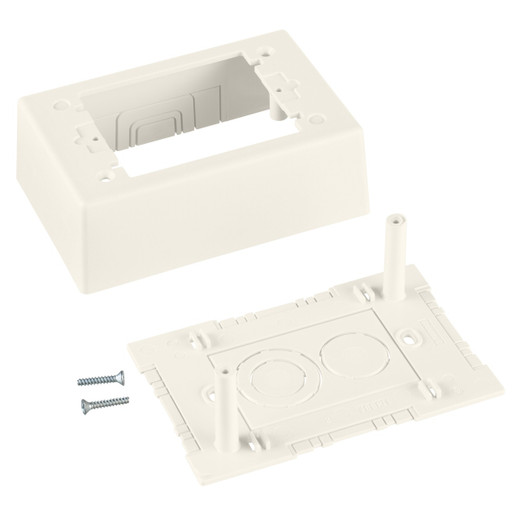

Panduit JBP1WH Single Gang Surface Raceway Junction Box
The Panduit JBP1WH delivers a power-rated termination solution for low-voltage and line-voltage runs in surface raceway installations. This single-gang, two-piece junction box integrates with Pan-Way LD profile raceway systems, providing NEMA-compliant outlet mounting for security panels, access control readers, network jacks, and power outlets in retrofit or remodel environments where concealed wiring isn't feasible. The screw-together design simplifies installation while maintaining UL-rated integrity for commercial and institutional projects.
Key Features
- Single-gang two-piece screw-together construction for secure, tamper-resistant assembly
- Power-rated design supports both low-voltage data/security and line-voltage electrical terminations
- Compatible with Pan-Way screw-on faceplates and all NEMA standard 70mm single-gang faceplates
- Integrated breakouts accommodate 1/2", 3/4", and 1" conduit for flexible raceway-to-conduit transitions
- White PVC housing matches standard Pan-Way LD raceway finish
- Compact 5.19" × 3.45" × 1.75" footprint fits tight wall spaces and corner installations
- RoHS compliant materials meet environmental procurement standards
The JBP1WH's two-piece design separates the mounting base from the cover, allowing you to secure the back box to the wall or raceway, run and terminate cables, then snap the cover in place—critical for clean installations where you're coordinating multiple trades or phasing cable pulls. The 1.75-inch depth provides ample volume for wire termination and device mounting, accommodating duplex receptacles, keystone jack plates, or shallow security devices like card readers without conductor crowding. Breakout knockouts on all four sides give you entry flexibility for conduit stub-ups or raceway transitions, eliminating the need for custom drilling that can compromise box integrity or NEC fill calculations.
Deploy the JBP1WH anywhere surface raceway is the primary pathway—open ceilings in warehouses, historic buildings where core drilling is prohibited, data center hot aisles requiring rapid reconfiguration, or perimeter intrusion detection loops in retail spaces. It's rated for power, so you can combine POE+ camera drops with 120V AC outlets in the same raceway run, reducing materials and labor on projects like parking garage surveillance where both data and auxiliary lighting controls terminate at the same pole. The white finish coordinates with standard Pan-Way LD raceway, maintaining a cohesive appearance on exposed installations in offices, schools, and healthcare corridors.
RoHS compliance ensures the JBP1WH meets environmental regulations for federal and municipal procurement, while NEMA standard compatibility means you're not locked into proprietary faceplates—critical when matching existing building finishes or standardizing across multiple manufacturers' devices. The screw-together assembly provides a secure, inspector-friendly enclosure that won't pop open under vibration or thermal cycling, a common failure mode in surface-mount boxes using friction-fit covers. Whether you're extending an access control system to a new wing, retrofitting IP cameras in a concrete structure, or running data to workstations in an open-plan office, the JBP1WH gives you a code-compliant, professional-grade termination point that integrates cleanly with Panduit's Pan-Way raceway ecosystem.
