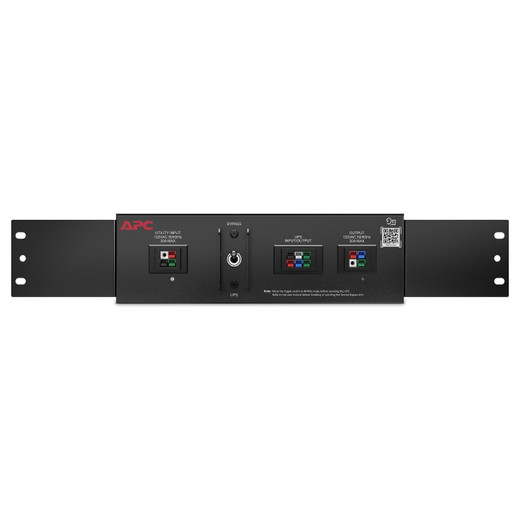

APC by Schneider Electric Secure UPS Service Bypass Unit 30A 120V Rack Mount 2U - XS30ALLXXR2
APC by Schneider Electric Secure UPS Service Bypass Unit 30A 120V Rack Mount 2U - XS30ALLXXR2
APC by Schneider Electric Secure UPS Service Bypass Unit 30A 120V Rack Mount 2U - XS30ALLXXR2
APC by Schneider Electric Secure UPS Service Bypass Unit 30A 120V Rack Mount 2U - XS30ALLXXR2
Product images are provided for reference and may not represent the exact model, configuration, or included components.

No Bots, Just Experts

Questions about this product? Free pre-sales support from a senior specialist — product questions, compatibility checks, BOM quotes, price confirmation — typically answered within one business day. Need camera placement or system design work? Engineering time is $175 per hour (qty 1 = 1 hour). Hardware buyers get up to one hour ($175) credited back on their order.

Get Free Pre-Sales Support Buy Design Hours ($175/hr)
Description

APC by Schneider Electric XS30ALLXXR2 Secure UPS Service Bypass Unit

Overview

The APC by Schneider Electric XS30ALLXXR2 is a 2U rack-mountable service bypass switch designed to isolate a UPS system for maintenance or replacement without interrupting power to connected equipment. This unit is critical for environments requiring high availability, such as data centers or critical infrastructure, where downtime is not an option. Its overload protection ensures safe operation during maintenance procedures.

Compatibility

This bypass unit is specifically designed for use with APC by Schneider Electric Smart-UPS models P/N: XU1K3LLXXRCC and XU2K0LLXXRCC. Ensure your UPS model matches these part numbers for guaranteed compatibility and safe operation.

Installation Notes

The XS30ALLXXR2 requires a hardwire 3-wire connection for both input and output (1PH + N + G), operating at AC 120V and 50/60 Hz. It supports a maximum electric current of 30A. Installation should be performed by qualified personnel familiar with electrical wiring and rack-mount equipment. The unit is rated for operation between -34.6 °F and 165.2 °F (-37°C to 74°C) with a humidity range of 0-95% non-condensing.

What's in the Box

  • Rack mount brackets
Expert Analysis
Specifications
Designed For: P/N: XU1K3LLXXRCC, XU2K0LLXXRCC
Package Contents: Rack mount brackets
Features: Overload protection
Compliant Standards: GOST, EN 60950, UL 1778, VDE, IEC 60950
Dimensions: 11 in
Service & Support: Limited warranty - 3 years
Min Operating Temperature: -34.6 °F
Max Operating Temperature: 165.2 °F
Humidity Range Operating: 0 - 95%
Type: Bypass switch - rack-mountable
Height (Rack Units: 2U
Color: Black
Input Voltage: AC 120 V
Frequency Required: 50/60 Hz
Input Connectors: 1 x hardwire 3-wire (1PH + N + G)
Power Output Connectors Details: 1 x hardwire 3-wire (1PH + N + G)
Output Voltage: AC 120 V
Max Electric Current: 30 A
Shipping Width: 18.1 in
Shipping Depth: 11.6 in
Shipping Height: 5.9 in
Weight: 9.92 lbs
