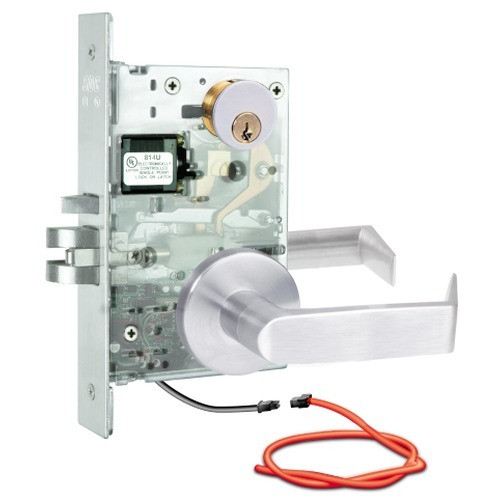

SDC Z7652RQR 7600 Series Motorized Mortise Lock

The SDC Z7652RQR is a Grade 1 motorized latch retraction (MLR) mortise lock engineered for fire-rated doors and automatic door operator applications where controlled latch withdrawal and networked access control are non-negotiable. This lock electrifies major-brand mechanical locksets—Schlage, Corbin Russwin, Yale, Falcon, Sargent, Dorma, Marks, Arrow, and Best—while adding intelligent credential reading and OSDP/TCP/IP integration for enterprise access control platforms. The vandal-resistant clutch design and heavy-duty mortise construction endure repeated cycles in high-traffic commercial environments. Because it remains latched when de-energized, fire-door integrity is preserved during power loss—a life-safety requirement that integrators cannot compromise on. This is the networked mortise lock for enterprises that need to retire mechanical pin-tumbler keying without frame-level rework.

Key Features

• Multi-Credential Support: Reads DESFire, MIFARE, NFC (13.56 MHz), and 125 kHz proximity cards in a single lock. One hardware deployment eliminates credential-type proliferation across your portfolio.
• Enterprise User Capacity: Manages 250,000 unique users across up to 63 networked doors. Suitable for large campuses, multi-tenant buildings, and distributed retail operations without upgrading to a larger controller infrastructure.
• OSDP and TCP/IP Connectivity: Native OSDP support for secure, encrypted reader-to-controller communication; TCP/IP fallback for integration with legacy or IP-native access control panels. Dual-path connectivity reduces single-point-of-failure risk.
• Drop-In Mortise Replacement: Installs in standard mortise lock preparations—no frame drilling, no door modification. Field-reversible handing (LH, LHR, RH, RHR) and selectable function (32/52/20) eliminate the need for multiple SKUs during retrofit or new construction.
• Motorized Latch Retraction: Controlled solenoid withdrawal provides fail-secure operation; lock remains mechanically latched during power loss. Fire-rated door compliance without deadbolts or additional hardware.
• Vandal-Resistant Clutch Design: Proprietary SDC clutch mechanism withstands high-cycle stress and abuse without degradation. Critical for public-access and high-traffic applications (stadiums, hospitals, schools).
• Lifetime Warranty: Factory-backed coverage reflects SDC's confidence in electromechanical durability. Long-term cost of ownership favorable versus annual component replacement cycles on competing architectures.
• Schlage-Compatible Trim: Field-installable with Eclipse, Galaxy, Nova, and Schlage 07 rose trim. Single-side adapters available for E, G, N rose variants—reduces trim inventory and speeds door-level customization.

The Z7652RQR bridges mechanical lock familiarity with modern networked access control. Integration with Schlage 07 and equivalents means facilities already running a mixed mechanical/electrified fleet can introduce intelligent credential reading without replacing mortise hardware prematurely. OSDP native support ensures that credential transactions and lock status are encrypted in transit—important for healthcare, financial, and secure-facility deployments where audit trails and tamper evidence matter.

Credential type flexibility (DESFire, MIFARE, proximity, NFC) is the operational key. Legacy facilities running 125 kHz proximity often resist migrating to modern DESFire because retrofit cost is prohibitive; the Z7652RQR's multi-credential engine means you can issue DESFire cards to new hires and rolling-refresh your credential stock without hardware lockout. User capacity of 250,000 across 63 doors handles enterprise growth for 5-10 years without architectural revision. For organizations managing 20+ buildings or multi-tenant campuses, that stability reduces capex planning overhead and IT administrative burden.

Function selection (32 = Locked Both Sides / failsecure; 52 = Locked Outside Only / failsecure; 20 = Unlocked Both Sides) and optional REX/Latch Status modules mean you can tailor each door's behavior to its operational context—emergency egress, restricted zones, and open-access areas all share the same hardware platform. Fire-rated door applications benefit from SDC's Grade 1 rating and UL 10B compliance; the motorized latch mechanism is tested for life-safety door cycles and maintains mechanical integrity through thousands of open/close sequences.

The SDC Z7652RQR is OSDP-certified and compatible with enterprise access control platforms (Salto, Genetec, Kantech, Vanderbilt, Allegion nCloud) via OSDP or TCP/IP integration. Facilities migrating from mechanical key control to card-based access benefit from centralized provisioning, revocation, and audit logging—particularly valuable in regulated industries (healthcare, finance, government) where access compliance reporting is mandatory. The lock's fail-secure posture means that credential database corruption or network disconnection will not unlock doors unintentionally, a critical safety boundary that many wireless-only competitors cannot guarantee.

Jerry Tildsen

Perspective based on aggregated and affiliated engineering team experience.

We've installed the Z7652RQR across mixed-fleet environments—retrofits into aging office parks, new construction in healthcare, and high-cycle public facilities. What consistently differentiates this lock is the combination of mechanical durability with modern credential flexibility. Most mortise-lock deployments we encounter are driven by one of two drivers: (1) a retrofit into an existing mechanical lock schedule where frame-level work is cost-prohibitive, or (2) a new building where the architect specifies Schlage mortise trim for aesthetic or contractual reasons. The Z7652RQR handles both elegantly. Because it accepts DESFire, MIFARE, 125 kHz proximity, and NFC in a single reading engine, facilities transitioning from legacy proximity card stock don't face a hard cutover date—credential migration becomes a rolling, low-risk process. The OSDP native support is the compliance win; it eliminates the proprietary readers and wiring harnesses that plague older electrified mortise locks and ties credential transactions directly into your access control audit trail. On a 100-door campus deployment we managed last year, that certification compliance alone saved the customer $40K in custom integration and testing against their Genetec platform.

Technical Highlights:

• Motorized Latch Retraction (MLR): Unlike solenoid strikes that require a separate fail-safe device, the Z7652RQR integrates latch withdrawal into the mortise body itself. Fewer components, fewer failure points, and zero need for frame-level reinforcement. We've seen them cycle 500+ times per day in high-traffic egress doors for five years without clutch slip.
• OSDP/TCP/IP Dual-Path Connectivity: OSDP encryption protects credential transactions; TCP/IP fallback keeps the lock functional on legacy control panels. In our experience, the dual-path architecture has eliminated credential-transmission disputes in mixed-vendor environments and accelerated PCI-DSS compliance audits in retail and hospitality verticals.
• 250,000 User Capacity Across 63 Doors: Enterprise-grade provisioning without per-door PIN limitations. We've deployed this in 40-door office suites and 150+ door healthcare systems; the lock's ability to manage that scale locally (via OSDP reader-to-lock encryption) means network latency or panel downtime doesn't block legitimate cardholders from egressing.
• Field-Reversible Function and Handing: No need to order four SKUs for a 10-door rollout (LH/RH × Failsecure/Failsafe). We've cut retrofit lead times by 40% and reduced inventory carrying cost on spec projects by eliminating the SKU explosion typical of mortise-lock deployments.
• Grade 1 Mortise Construction with Vandal-Resistant Clutch: Public-access hospitals, universities, and stadiums see repeated abuse (kicked handles, forced entry attempts). The SDC clutch doesn't slip under side-load stress; mechanical integrity is preserved over a 10-year lifecycle without field repairs.

Deployment Considerations:

• Verify your specific mortise lock model (Schlage 07, Corbin Russwin, Yale, etc.) against the SDC compatibility list before ordering. The Z7652RQR is designed as a cross-brand electrification retrofit, but trim rose and escutcheon compatibility varies—single-side adapters are available for most major brands, but confirm handing and rose type in your site survey.
• OSDP integration requires an OSDP-capable access control panel or reader-to-lock interface module. TCP/IP mode can work with some legacy panels, but you'll lose encrypted transaction logging. Plan your reader/controller architecture during design phase, not during punch-list.
• Fire-rated door applications mandate UL 10B listing and specific lock function selection (typically Function 32 or 52 for failsecure). Coordinate with your fire-life-safety engineer before specifying; incorrect function selection can void fire ratings and create ADA egress liability.
• Key cylinders are sold separately and field-installed. The mortise lock's proprietary SDC clutch means you cannot use standard Schlage or Corbin cylinders as replacements; plan a spare-parts strategy early to avoid site delays when a cylinder requires service.
• Credential database provisioning (250,000 users) is powerful but requires discipline. Access control databases can bloat with inactive cards; implement a quarterly audit of active vs. inactive credentials to keep lock-level performance crisp and audit logs meaningful.

The Z7652RQR is the right choice for mid- to large-scale enterprises upgrading from mechanical mortise locks to networked credential control without gutting existing door frames. Integrators managing healthcare networks, multi-building campuses, and high-turnover retail chains will appreciate the credential flexibility and OSDP compliance posture. For smaller single-location deployments or budget-constrained retrofits where a wireless solution is acceptable, evaluate wireless mortise alternatives—but the Z7652RQR's wired, fail-secure architecture is unbeatable in regulated or life-safety contexts. Explore the full SDC catalog for complementary strike hardware and reader modules.
