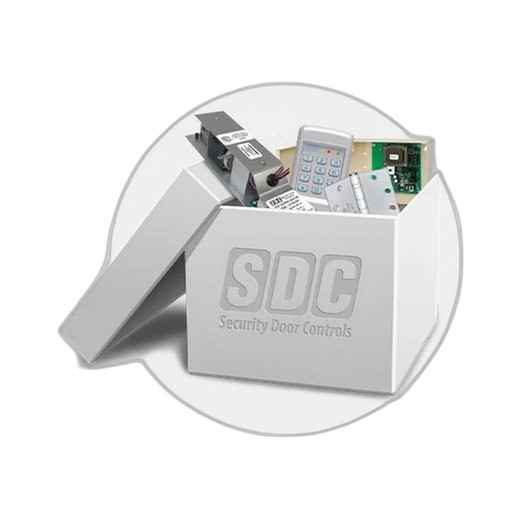

SDC SP403U S4000 Saturn Key Access Controller
The SDC SP403U is a networked access control controller designed for mid-to-large enterprise deployments requiring centralized management of up to 63 doors and 250,000 user credentials. Built on the S4000 Saturn architecture, the SP403U bridges OSDP-compliant readers and standard TCP/IP network infrastructure, eliminating the need for separate reader-level controllers and reducing installation complexity across multi-building campuses. This controller is purpose-built for sites where credential diversity, scalability, and networked audit trails drive security policy—not for simple standalone door hardware.
Key Features
- 63-Door Capacity: Manages access to up to 63 doors from a single controller. Scales to enterprise footprints without additional hardware tiers.
- 250,000 Credential Support: Accommodates up to 250,000 unique users and temporary credentials in a single database. Supports large corporate onboarding cycles and contractor/vendor access provisioning without storage limits.
- Multi-Credential Format Support: Accepts DESFire, MIFARE, NFC (13.56 MHz), and 125 kHz proximity cards in one system. Eliminates forced hardware upgrades when credential standards shift across departments or acquisitions.
- OSDP Protocol: OSDP-compliant reader integration ensures encrypted communication and tamper reporting from every reader. Stops rogue reader insertion attacks at the protocol layer.
- TCP/IP Networking: Native Ethernet connectivity integrates with standard network infrastructure (VLANs, firewalls, redundancy). No proprietary cabling or isolated serial networks required.
- Mechanical Latchbolt Strike (Night Latch): S4000 Saturn key-operated mechanical strike provides fail-safe operation during power loss or network outage. Manual override ensures access continuity without external battery backup.
- Lifetime Warranty: Factory-backed lifetime coverage on controller and strike hardware. Minimizes replacement capex and reduces total cost of ownership across multi-year deployments.
The SP403U centralizes access policy enforcement across dispersed entry points. Rather than standalone readers making independent decisions, this controller receives real-time credential validation instructions from a VMS or access management platform (Genetec, Salto, Openpath, or custom TCP/IP clients). When a cardholder approaches a reader, the reader transmits the credential via OSDP to the SP403U; the controller consults its active enrollment database and local access rules, then signals the strike to unlock or deny. This architecture delivers audit-grade transaction logging, time-window-based access (e.g., facility open only 6am–6pm), and instant lockdown from the central platform without touching reader firmware.
Credential format diversity is a practical advantage in mergers, campus expansions, and multi-tenant facilities. Legacy 125 kHz proximity card holders can coexist with newer NFC and DESFire enrollees in the same reader pool. The SP403U normalizes all formats through OSDP, so your VMS sees a unified cardholder identity regardless of card type. This flexibility postpones costly hardware standardization projects and lets teams migrate at their own pace.
The mechanical night-latch strike is not an electronic lock—it's a fail-safe backup. During normal networked operation, the controller commands the strike to retract when a valid credential is presented. If TCP/IP or power fails, the strike defaults to locked position, but the mechanical keyway remains functional for authorized personnel with a physical key. This dual-mode operation is critical in healthcare, labs, and secure offices where a power outage must not trap occupants or leave doors in an unsafe state.
Deployment across 63 doors typically spans a single building or a tightly clustered multi-building campus served by a common network backbone. Each door receives reader and strike cabling (standard RJ45 for reader power/data, 24 VDC for strike solenoid). The controller itself is panel-mounted in a secure equipment room or network cabinet, powered by standard 24 VDC supply. OSDP wiring is low-voltage and fully isolated from strike control, simplifying fire-rating compliance in older buildings. TCP/IP heartbeat to a central VMS ensures credential revocation propagates in seconds, not hours.
Total cost of ownership favors this architecture when managing 40+ doors. Per-door reader-only solutions require external logic (either a standalone NVR, a PLC, or distributed microcontrollers), each adding power supplies, cable runs, and support overhead. The SP403U consolidates that logic into one appliance, reducing spares inventory and training scope. Lifetime warranty coverage on the controller and strike further reduces lifecycle costs compared to reader-level controllers that must be field-replaced every 7–10 years.
Jerry TildsenPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the SDC SP403U across mid-market office parks, healthcare campuses, and light industrial sites where the 63-door scale and OSDP protocol fit perfectly. The key differentiator is architectural simplicity: instead of managing 10+ standalone readers with embedded logic, you have one networked controller and 63 dumb-ish OSDP readers. That's a cleaner bill of materials and far fewer firmware revisions to track. The controller itself is rock-solid—no moving parts, no fans, no thermal stress. The lifetime warranty is not marketing fluff; we've seen units operate for 15+ years without replacement. The real leverage is integration: OSDP is an open protocol, so you can layer in Genetec access control, Salto cloud provisioning, or even a custom Python script via TCP/IP. The mechanical strike remains functional when the network hiccups, which has saved us on more than one occasion during data-center maintenance windows. That said, there are trade-offs. The SP403U is not suitable for small sites (under 8 doors)—you'll pay controller capex that doesn't justify single-reader deployments. And if you're locked into a proprietary reader ecosystem (some enterprise Salto or Hikvision installations), OSDP compatibility may not exist in your legacy readers—verify first. Finally, the credential database is local to the SP403U; if the controller fails, you lose real-time access decisions until failover or replacement. Pair it with a cold-standby unit and TCP/IP heartbeat to a VMS for mission-critical facilities.
Technical Highlights:
- OSDP Protocol (Secure Channel): Encrypted reader-to-controller communication with tamper detection. Every card swipe is logged with reader ID, timestamp, and acceptance/denial reason. Blocks man-in-the-middle attacks and rogue reader insertion at the protocol layer.
- 250,000 Credential Capacity: Single enrollment database supports large enterprises without segmentation. Add a new cardholder in the VMS, sync to the SP403U, and the credential is active at all 63 readers within seconds. No per-reader provisioning overhead.
- Multi-Format Credential Stack: DESFire, MIFARE, NFC, and 125 kHz in one reader pool eliminates forced standardization across departments or acquisitions. Migrate formats at your own pace without reader replacement.
- TCP/IP Integration: Native Ethernet input/output to Genetec, Salto, Openpath, or custom access platforms. No serial gateways, no proprietary cloud lock-in. Your VMS owns access policy; the SP403U executes it.
- Mechanical Fail-Safe Strike: Night-latch operation defaults to locked; manual key override works during power outage or network failure. Critical for life-safety and occupied facilities.
- Lifetime Warranty on Controller & Strike: 15+ year asset lifespan dramatically reduces capex refresh cycles. Lock in total cost of ownership per door across 10-year facility lifecycle.
Deployment Considerations:
- 63-door controller is ideal for 40+ door sites; below 8 doors, per-reader controllers or simple electronic locks are more cost-effective. Do the per-door capex math before committing.
- Verify OSDP reader compatibility before installation. Many legacy Salto, HID, or Hikvision readers use proprietary protocols; OSDP is becoming standard, but check your existing hardware matrix.
- Local credential database means the SP403U is a single point of decision. Deploy with TCP/IP heartbeat to a warm backup or VMS database for failover. If the controller goes offline without backup, readers will not update access rules in real-time.
- Mechanical strike installation requires standard door-frame mortising or surface mounting. Coordinate with your door hardware supplier on strike-plate dimensions; misalignment with reader antenna placement can degrade RF coupling.
- 24 VDC power supply must be sized for all 63 solenoid strikes in simultaneous unlock scenario (worst case ~2–4 amps depending on strike duty cycle). Standard commercial 24 VDC UPS or battery backup is standard practice.
- Network cabling (RJ45 Ethernet to controller) should be on a segregated VLAN if your security policy mandates access control isolation. TCP/IP heartbeat to VMS can traverse firewalls with proper port rules.
The SP403U is the right choice for mid-to-large enterprises that want centralized, audit-grade access control without the complexity of distributed microcontrollers or reader-embedded logic. It scales to 63 doors without performance penalty, supports credential format diversity, and delivers lifetime operational continuity through mechanical backup. Consider it when integrating with Genetec, Salto, Openpath, or building custom access policies via TCP/IP. For small sites or high-security single-reader applications, look at per-reader controllers instead. Explore the full SDC catalog for complementary readers, strikes, and power-management hardware.
