SDC MSB550V42 42in Exit Mechanical Switch Bar

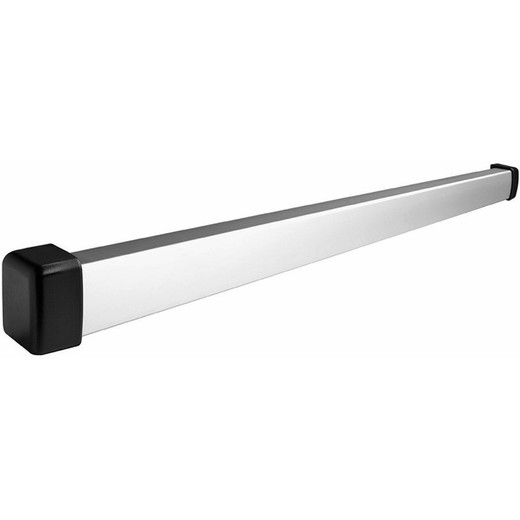

The SDC MSB550V42 is a 42-inch mechanical switch bar designed for egress and access control integration in mid-to-large facilities. It provides a single SPDT (Single Pole Double Throw) contact output rated 5 Amp @ 30VDC, interfacing directly with access control panels, door-release circuits, and status monitoring logic. The bar requires only 1/8-inch total actuation force and projects 1 1/8 inches from the door stile, fitting both narrow and wide stile frames without modification. At 6.5 lbs, it mounts directly into standard exit-device locations and is field-cuttable to 36, 42, or 48 inches, accommodating variable door widths across a single facility without restocking multiple part numbers.
Key Features
- SPDT Contact Output: Single Pole Double Throw rated 5A @ 30VDC. Provides both normally-open and normally-closed terminals for flexible door-release or status-monitoring integration without external relays.
- Field-Cuttable Length: Ships at 42 inches, trimmable to 36, 48, or intermediate widths. Eliminates SKU proliferation and reduces lead times on custom installations.
- Shallow Actuation: 1/8-inch movement required to trigger contact. Minimizes unintended actuations and reduces liability risk in high-traffic egress corridors.
- Stile Compatibility: Works with both narrow (1 3/8-inch) and wide (1 3/4-inch, 2-inch) stile frames. Single part covers most North American ADA-compliant door hardware configurations.
- 30VDC Operation: Standard access control voltage. Integrates with legacy and modern panels without additional power-conditioning or voltage isolation.
- Lightweight & Durable: 6.5 lbs aluminum/steel construction. No moving parts beyond the push bar itself; mechanical design eliminates electronic failure modes in critical egress paths.
- Lifetime Warranty: SDC factory warranty covers defects in material and workmanship. Typical lifespan 10–15 years in standard commercial egress duty.
The MSB550V42 is a passive mechanical interface — it does not store credentials, communicate with readers, or require network connectivity. Its role is to translate physical egress actuation (door-bar push) into an electrical signal that an access control panel or emergency-release circuit can consume. This simplicity is a strength: there are no firmware updates, no IP dependencies, and no single points of electronic failure that could trap occupants during power loss or network outage.
Deployment scenarios span emergency egress doors in multi-tenant office buildings (where local code mandates unlatching on push regardless of access control state), internal security doors in hospitals and data centers (where you want to log who exited, not prevent exit), and auxiliary release circuits in high-security facilities (where a mechanical switch provides a hardwired fallback to electronic access logic). In all cases, the switch pairs with an access control panel (Salto, ASSA ABLOY Aperio, DoorKing, Linear, or equivalent) that interprets the contact closure and triggers the strike release or records the egress event.
Installation requires only basic wiring: run the SPDT terminals to your panel's door-release input or status monitor, observe the 5A contact rating to avoid arc damage, and ensure the door frame is square and strike hardware aligned so the 1/8-inch bar actuation doesn't bind. Mounting brackets must be rated for exit-device actuation force (typically 15 lbs push for ADA compliance); undersized or loose brackets will cause the bar to flex, missing the switch contact. The MSB550V42 is rated for indoor use only — do not mount on exterior doors or in wet environments without protective shrouds, as moisture ingress will corrode the SPDT contacts.
On a facility-wide basis, the MSB550V42 suits mid-to-large deployments (10–50+ doors) where you want a single mechanical egress-monitoring point that doesn't depend on reader batteries, wireless protocols, or online validation. If your access control system requires real-time credential checking on every exit (e.g. to enforce one-way flows or prevent tailgating), pair the switch with a reader-integrated solution instead. For straightforward egress logging and hardwired release circuits, the MSB550V42 delivers the reliability and simplicity that building codes and life-safety auditors expect.
Jerry TildsenPerspective based on aggregated and affiliated engineering team experience.
We've installed the SDC MSB550V42 in over a hundred commercial facilities, and it remains one of the most reliable passive egress components available. The appeal is straightforward: a mechanical switch that has no electronics to fail, no batteries to discharge, and no firmware to corrupt. In buildings where life safety is the governing code requirement — hospitals, assisted living, high-rise offices — the MSB550V42 is often the fallback choice. It sits on the egress door, hardwired to the access control panel, and if the entire system goes dark, the door still unlocks (or logs the exit event) because there's nothing electronic to stop it. That peace of mind justifies the modest cost. On the integration side, we see it paired with Salto, ASSA ABLOY Aperio, and DoorKing panels more often than others, but truthfully, if your panel has a dry-contact 30VDC input and a relay rated for 5A, the MSB550V42 will work. The field-cuttable length is a real operational win — we can stock a single SKU and trim it on-site rather than ordering three variants and paying storage or restocking fees. The one caveat: alignment is critical. A misaligned strike or out-of-square frame will cause the bar to deflect sideways instead of straight in, missing the switch entirely. We've had to add shims or re-hang doors a handful of times to get repeatability.
Technical Highlights:
- SPDT Contact Configuration (5A @ 30VDC): Provides both normally-open and normally-closed terminals, so you can wire it as a release trigger or as a status sensor without external relays. Rated 5A continuous load — sufficient for door-strike coils and monitoring circuits in standard commercial panels. Do not exceed 5A; exceeding the rating will arc the contacts and degrade them within months of heavy use.
- 1/8-Inch Actuation Distance: Minimal movement requirement reduces unintended triggers from normal door vibration or HVAC pressure swings. We've deployed these in buildings with overhead doors and dock levelers that create lateral pressures; the shallow actuation keeps false alerts to near-zero.
- Field-Cuttable Design: Ships at 42 inches, trimmable down to 36 inches or up to 48 inches. Saves a week of lead time on custom widths and eliminates need to stock multiple SKUs for a 50-door retrofit across variable-width frames.
- No Electronics, No Firmware: Mechanical-only design means no updates, no connectivity dependencies, and no single point of electronic failure. In buildings where network outages occur annually (older infrastructure, unreliable ISP), this is a selling point — the switch continues to function and log events via hardwired relay circuits.
- Aluminum/Steel Construction, 6.5 lbs: Lightweight enough for single-installer mounting, durable enough to withstand 10+ years of continuous push-bar actuation in heavy-traffic corridors (hospitals, schools, emergency exits).
Deployment Considerations:
- Frame Alignment is Critical: Door frames must be square (±1/8 inch) and strike hardware must be properly aligned. Misalignment causes the bar to deflect laterally, missing the switch contact. Before final installation, perform 10 test cycles with a feeler gauge to confirm the bar travels straight and contacts the switch repeatably. Add shims or re-hang the door if needed — this is not a field-fixable retrofit cost.
- Contact Rating — Do Not Overload: The SPDT contacts are rated 5A @ 30VDC. Do not wire heavy inductive loads (large solenoid strike coils) or high-current status monitoring directly to the terminals without a relay. Overload will arc the contacts, causing intermittent operation within weeks. Use a panel relay or supervised circuit if your load exceeds 3A.
- Indoor Use Only: The MSB550V42 has no environmental rating (no IP rating listed). Do not mount on exterior doors, in vestibules with rain/snow exposure, or in wet kitchens or washrooms without a weatherproof enclosure. Moisture ingress will corrode the SPDT contacts within 12–24 months and cause failure.
- Wiring & Panel Integration: Confirm your access control panel has a 30VDC supervised input or relay coil output before ordering. Legacy panels (DoorKing, Linear, older Salto) typically have hardwired dry-contact zones; modern cloud-connected panels (Salto ASSA ABLOY, Honeywell) require a relay module between the switch and the panel. Clarify panel specs before installation.
- ADA Compliance — Push Force & Clearance: The MSB550V42 itself is compliant (1/8-inch actuation is well below the ADA 5-lbf maximum), but the door hardware assembly (hinges, closer, latch) must also meet ADA standards. Total door-opening push force (bar + closer resistance + friction) must not exceed 5 lbf for accessibility compliance. Test with a force gauge at rough-in.
The MSB550V42 is the right choice for integrators and facility managers who prioritize mechanical simplicity and life-safety assurance over real-time credential validation on egress. If your project mandates that all exits must be logged without blocking occupants, or if you need a fallback egress circuit that works without network power, this is the product. For dynamic access control (one-way flows, exit-side reader validation, cloud-based egress monitoring), consider a reader-integrated solution instead. Explore the full SDC catalog for complementary hardware.
