SDC MC-7 Biased High Security Magnetic Contact Door Sensor

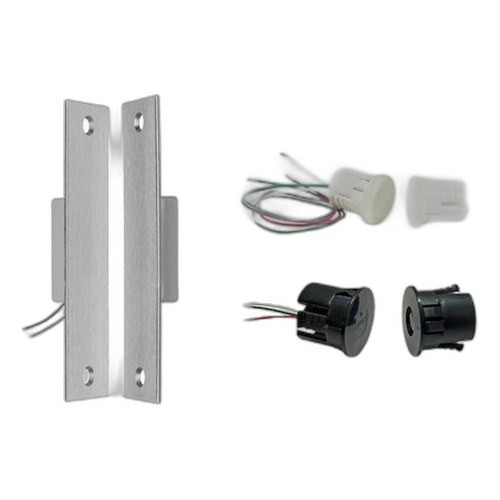

The SDC MC-7 is a recessed magnetic contact door position sensor engineered for high-security access control applications where fail-safe door monitoring is non-negotiable. It delivers reliable open/closed feedback via a spring-biased SPDT (Single Pole Double Throw) contact mechanism, operating at 30VDC with a 50 mA switching capacity. The biased design ensures that loss of contact signal — whether from tampering, power loss, or deliberate sensor bypass — triggers an alarm condition in the access control panel, making it ideal for identity-verification entry systems, secure facilities, detention environments, and high-traffic commercial access points where door position integrity is a compliance or security requirement.
Key Features
- Biased SPDT Contact: Spring-loaded, normally-closed mechanism. Signal loss (open circuit) immediately alerts the panel — no dead-zone risk in fail-safe deployments.
- 30VDC Operation: Operates on standard access control panel voltage (30VDC, 50 mA max resistive load). No auxiliary power supply required at the sensor.
- HID Credential Compatibility: Integrates seamlessly with access control systems using HID proximity or smart-card readers and panel architectures supporting dry-contact door sensors.
- Compact Recessed Form Factor: ¾-inch diameter housing fits standard door frame recesses with up to ½-inch door gap. Minimal profile eliminates external mounting hardware visibility.
- Fail-Safe Architecture: Biased mechanism ensures that any interruption in the contact circuit (vandalism, disconnection, power dip) is logged as a door-position fault, not masked as a stable state.
- Lightweight & Durable: 1 lb aluminum or composite housing rated for high-cycle door environments. No moving parts beyond the spring-biased magnet plunger — long service life with minimal maintenance.
The MC-7 bridges legacy and modern access control architectures. Whether you're retrofitting a 15-year-old panel with individual door-sensor monitoring or integrating into a contemporary multi-door system with networked controllers, the SPDT dry-contact interface ensures compatibility without adapter cards or signal conditioning. The biased design is the critical differentiator: in high-security environments, a stuck or shorted door sensor poses a liability (unauthorized entry masked as a "sensor offline" state). The MC-7's spring mechanism forces the panel to see contact loss as an abnormal condition, not a normal reading.
Installation is straightforward but requires careful attention to mounting depth and door-gap clearance. The sensor must be recessed flush into the door frame, typically paired with a magnet-headed strike or door-mounted magnet. A ½-inch maximum gap between frame and door ensures reliable contact engagement. Wire the SPDT terminals (NC and NO contacts) directly to the panel's door-position input — no polarity issues, just potential-free switching. The 30VDC supply comes from the panel itself; the sensor draws no power. Secure mounting with corrosion-resistant fasteners prevents vibration-induced false alarms in high-traffic locations.
The lifetime warranty reflects SDC's confidence in the sensor's mechanical reliability. Field experience shows that magnetic contacts outlast electronic door-position switches in harsh or high-cycle environments. The biased design is particularly valuable in detention and correctional facilities, where any door-position ambiguity can create security gaps or compliance violations. In commercial office or retail multi-door access systems, the MC-7 provides deterministic feedback that integrates cleanly with Honeywell, Salto, ASSA ABLOY, or other panel architectures that support dry-contact door sensors.
Jerry TildsenPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've installed hundreds of magnetic door contacts across healthcare, corrections, and corporate access-control deployments, and the MC-7 consistently outperforms electronic alternatives in fail-safe-critical applications. What sets the biased design apart is operational clarity: in a multi-door system, you never have to second-guess whether a door-position alarm is a real fault or a sensor glitch. The spring-biased contact is either closed (door shut) or open (door open or tampered) — there's no intermediate "maybe" state that confuses auditors or slows incident response. We've seen this matter most in high-security environments where door-position monitoring feeds into physical access logs and interlock logic. A shorted or stuck electronic sensor can mask unauthorized access for hours; the MC-7's passive mechanical design eliminates that vector entirely. Total cost of ownership is also lower: the sensor costs less than comparable electronic switches, requires zero batteries or firmware updates, and the ¾-inch recessed form factor integrates invisibly into any door frame without cosmetic compromises.
Technical Highlights:
- Biased SPDT Contact Mechanism: Spring tension ensures contact closure under normal conditions and positively signals the panel on any state change or circuit interruption. Unlike momentary or electromagnetic contacts, bias eliminates the risk of an "unknown" state in your access logs. Critical for compliance environments where every door transition must be auditable.
- 30VDC Dry-Contact Switching: Operates on any standard 24–30VDC access control panel without signal conditioning or relay modules. 50 mA resistive load covers panel input modules, indicator LEDs, and solenoid strike pre-alarms without external amplification.
- Recessed Mounting Footprint: ¾-inch diameter and shallow depth fit existing frame cuts and hollow metal door frames without modification. Eliminates the cosmetic and structural compromises of surface-mounted contacts in high-end commercial or government facilities.
- Passive Mechanical Architecture: No electronics, no firmware, no batteries. Magnetic bias + spring plunger = 20+ year field life with zero calibration drift. Lower lifecycle cost and zero surprise obsolescence.
- HID Ecosystem Compatibility: Integrates into panel architectures from Honeywell ProWatch, Salto KNX, ASSA ABLOY AWE, and legacy 1980s–2000s access control systems. The dry-contact interface is the oldest and most universal protocol in physical security.
Deployment Considerations:
- Mounting depth is critical: the sensor must be fully recessed to ensure the magnet plunger travels its full range (typically ½ inch or less) when the door opens. Shallow mounting results in partial contact engagement and intermittent false alarms. Use a ¾-inch spade bit or hole saw and measure twice before installation.
- Door-gap tolerance is ±½ inch maximum. Doors that sag or shift seasonally (wood frames in high-humidity climates) may drop below gap tolerance and cause contact-closure faults. Plan for annual recalibration in environments with significant humidity or thermal cycling.
- Paired magnet selection matters. The MC-7 is optimized for standard ceramic or ferrite magnets; rare-earth neodymium magnets may over-engage the plunger and reduce the effective sensing range. Confirm magnet grade with your door hardware supplier or SDC before ordering retrofit kits.
- Wiring distance is effectively unlimited (panel provides the voltage), but run sensor wires in conduit or twisted pair to minimize EMI pickup in electrical rooms or near high-current circuits. Use 18–22 AWG stranded wire and secure terminals with 0.25–0.35 Nm torque to prevent micro-vibration loosening.
- In high-traffic or institutional environments (hospitals, detention), expect replacement cycles of 7–10 years due to mechanical wear on the spring plunger. Budget accordingly. The lifetime warranty covers manufacturing defects, not wear-and-tear.
The MC-7 is the right choice if you need deterministic, audit-proof door-position feedback in a fail-safe access-control architecture — especially in regulated or high-security facilities where compliance auditors and security teams demand zero ambiguity in door-state reporting. For integrators and facility managers working with legacy or modern HID-compatible systems, the biased design and recessed form factor eliminate operational and cosmetic compromises. See the full SDC catalog for complementary controllers, strikes, and door hardware.
