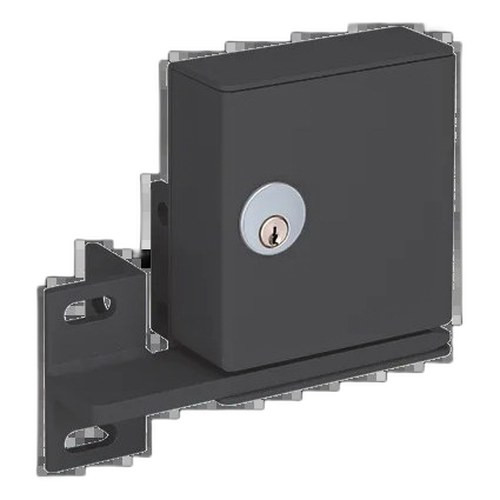

Sdc/Security Door Controls GL263AHD GateLock Strike

We've installed the GL263AHD on everything from university perimeter gates to industrial utility enclosures, and its appeal is straightforward: it solves the metal-gate access control problem without forcing you to overhaul gate hardware or add a separate control subsystem. Most institutional campuses have a mix of door readers and gate infrastructure, and the GL263AHD lets you normalize credential handling across both. The failsecure bolt—automatically relock on gate open—is a game-changer for perimeter compliance. You don't need a hold-open relay or timer logic; the physics of the gate swing does the work. The SPDT contacts mean you get position feedback without extra wiring runs, and the native OSDP/TCP/IP support integrates into any modern access control platform. We've seen the multi-credential support (DESFire, MIFARE, NFC, 125kHz prox) eliminate reader replacement headaches when clients migrate from legacy proximity to DESFire—the strike doesn't care which card format your reader sends it, as long as the unlock signal is there. That said, the 5/8" bolt throw is adequate for standard chain link and tubular steel gates, but if you're retrofitting ornamental wrought iron with deep-set latches, you may need custom keeper fabrication. And the 12/24 VDC dual-voltage field selection is a real install convenience—we've run 24V on one campus ring and 12V on a battery-backed auxiliary loop without any component changes.

Technical Highlights:

• Failsecure Bolt with Automatic Relock: The 5/8" stainless steel bolt retracts on unlock and reengages the moment the gate swings open. No hold-open relay, no timer, no operator intervention needed—perimeter security is maintained continuously. This architecture is critical for facilities with high-frequency gate traffic (loading docks, staff entrances) where manual relock would become an operational bottleneck.
• SPDT Monitoring Relay (10A @ 30VDC): Door Position Status and Bolt Position Status feedback loop directly into your access control panel. In practice, this means you can log every gate opening, trigger alarms if the gate is propped open beyond a threshold, and integrate gate activity into your audit trail without extra sensors or wiring runs.
• 12/24 VDC Field-Selectable Operation: 900 mA at 12V, 450 mA at 24V. Adapts to existing infrastructure and simplifies power budgeting. On a 63-door campus ring, running 24V reduces the aggregate branch-circuit load compared to 12V equivalents—measurable savings on UPS runtime and circuit protection.
• Native OSDP and TCP/IP Networking: Direct protocol support eliminates the intermediate gateway controller that would otherwise be required for credential verification and unlock logic. Fewer network hops, lower latency, simpler troubleshooting. The strike itself doesn't do cryptographic processing—that stays in your reader and access control panel—but the networked command path is direct.
• 250,000 User Records and 63-Door Capacity: Built-in system scalability for large institutions. The strike doesn't store credentials locally; it delegates authentication to the access control platform. But the rated capacity tells you the control fabric was engineered with institutional deployments in mind, not small retail retrofits.

Deployment Considerations:

• Verify gate post dimensions during site survey. The GL263AHD is designed for 3" fence posts and 2" gate posts; smaller or non-standard dimensions may require field fabrication of mounting brackets or keeper plates. We've had one retrofit where ornamental iron posts were 1.5" diameter—a local sheet-metal shop welded custom brackets, but that's a labor adder you need to budget.
• 5/8" bolt throw requires a matching keeper on the gate frame. If the existing keeper is recessed or offset, you may need to re-tap the latch pocket or fabricate a shim. Check gate frame condition and latch alignment before ordering—a mis-aligned gate will cause bolt binding and premature solenoid wear.
• Weatherized housing handles rain and dust, but coastal salt-air installations benefit from annual inspection of the black finish. We've seen surface corrosion on gate strikes in high-salt environments after 18-24 months of neglect. A protective coating or stainless enclosure upgrade is worth considering for oceanside or salt-treatment facilities.
• Keyswitch override is a manual momentary lever, not a coded pad. In high-traffic pedestrian gates or visitor-facing entrances, this can become a maintenance point—visitors override and leave the gate unsecured, or the lever gets stuck. Reserve keyswitch override for low-traffic emergency-egress gates; for frequent manual unlocking, integrate a networked push-button reader instead.
• SPDT contacts are rated 10A @ 30VDC—adequate for standard relay loads, but if you're daisy-chaining this strike status into multiple alarm or logging circuits, verify your access control panel's relay input capacity. Some panels have shared input groups; overloading one contact can affect others on the same circuit.

The GL263AHD is the right choice for integrators managing institutional or industrial campuses where perimeter gates are common infrastructure and a single credential platform must serve both doors and gate strikes. It eliminates the cost and complexity of dedicated gate-control modules while preserving network monitoring and emergency manual access. For smaller single-gate retail retrofits or applications requiring electronic push-pull door actuation, look elsewhere. But for a 20+ door campus, the 63-door capacity and multi-credential flexibility make it a centerpiece strike for unified access control strategy. See the SDC catalog for complementary lock hardware and networked readers.
