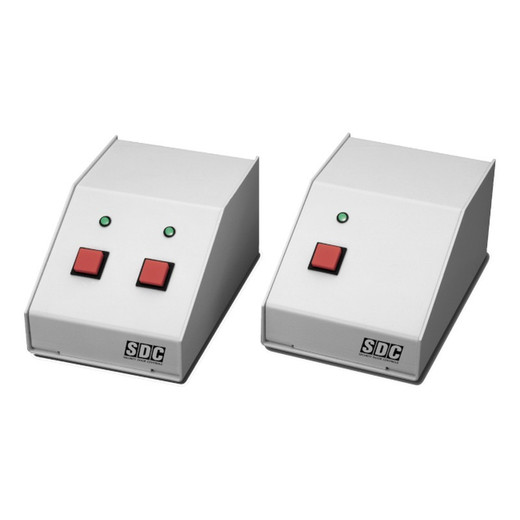

SDC DTMO-2 Mini Desktop Control Console Momentary
Overview
The SDC DTMO-2 is a momentary-action mini console designed to control electromagnetic locks, shear locks, bolt locks, delayed egress systems, and electric strikes in access control installations. Operating at 30VDC with a 5-amp SPDT (single-pole, double-throw) contact rated at 5 amperes, the DTMO-2 delivers reliable switching for temporary door release requests in guard stations, control rooms, and compact security environments where space and functionality must coexist. The unit's economical form factor makes it a practical choice for single or dual-door control in commercial and institutional deployments.
Key Features
- Momentary SPDT Contact, 5A @ 30VDC: Ideal for electromagnetic locks and electric strikes that require a momentary pulse to release. The 5-amp rating handles standard commercial-grade locking hardware without undersizing concerns — typical EMLock and strike draws fall well within this envelope.
- Tri-Color LED Indicators: Integrated LEDs provide real-time status feedback for door and lock states when paired with door status or lock position sensors. Eliminates guesswork about whether a strike is energized or a door is secured, reducing dispatch delays and support calls.
- Compact Desktop Footprint (4 1/8" x 3 1/8" x 6 1/4"): Fits easily into console racks, guard stations, and control panel cutouts where real estate is tight. No floor space or cabinet depth penalty — critical in facilities already running dense wiring and equipment.
- Beige Finish: Neutral industrial color blends into most security control environments without requiring cosmetic upgrades or custom finishes.
- Low LED Power Draw (30 mA @ 24VDC): LED indicators add negligible load to your control circuit, so you won't need oversized power supplies or encounter unexpected voltage sag when indicators are active.
- On/Off and Momentary Switch Options: Available in three switch configurations, allowing you to select between sustained energization (On/Off) for continuous access or momentary pulses for single-entry events depending on your locking hardware and access philosophy.
Integration & Compatibility
The DTMO-2 integrates with access control systems that use 30VDC signaling and door locking infrastructure. The unit's SPDT contact makes it agnostic to the upstream control logic — whether you're pulling a signal from a card reader interface, a relay output on an access panel, or a hard-wired pushbutton, the momentary action translates that logic into a door release pulse. For multi-door facilities, deploying multiple DTMO-2 units in a control rack is straightforward, with each unit managing its own strike or lock independent of others. LED status feedback depends on integrating door sensors (magnetic contacts, position switches) with the console's indicator lines — consult your access control panel documentation for wiring guidance.
Frequently Asked Questions
Q: Can the DTMO-2 be used with both momentary and sustained lock control?
A: Yes. The DTMO-2 is available in three switch configurations — select the momentary variant (DTMO-2) for pulse-action door releases, or consider an On/Off model if you need sustained energization. Confirm your ordering code matches your locking hardware's requirements.
Q: What's the maximum number of doors the DTMO-2 can control?
A: The DTMO-2 is designed for one or two doors. Each unit provides a single SPDT contact, so for more than two independently controlled doors, you'll need multiple consoles or a larger access control panel with multiple output relays.
Q: Does the DTMO-2 work with electric strikes and electromagnetic locks?
A: Yes. The 5-amp SPDT contact at 30VDC supports electromagnetic EMLocks, shear locks, bolt locks, delayed egress systems, electrical exit systems, and electric strikes. Verify that your specific locking hardware's current draw does not exceed 5 amperes.
Q: What do the tri-color LED indicators show?
A: The LEDs display door and lock status when integrated with door sensors. Status feedback indicates whether the door is secured or in transit, and whether the lock is energized. This provides operators with immediate visual confirmation without checking the door manually.
Q: Is the DTMO-2 suitable for unattended or outdoor installations?
A: The DTMO-2 is a desktop console designed for indoor control rooms, guard stations, and secure facilities. It is not rated for outdoor exposure or unattended mounting. For outdoor or remote door control, consider a larger pedestal console or a networked access control system with remote release capabilities.
Q: What's included in the box?
A: Refer to the product documentation or contact support for a complete list of included accessories and wiring terminals.
The DTMO-2 is a straightforward momentary console for guard-station environments where you need a compact, hard-wired release button for one or two doors. The 30VDC, 5-amp SPDT contact is bread-and-butter hardware — it handles standard electromagnetic locks and electric strikes without fuss, and the unit's small 4 1/8" x 3 1/8" footprint slides into existing console racks without rework. The tri-color LED indicators are the real value add here — they give your front-desk operator instant visual feedback on door and lock state, eliminating the blind-spot guesswork that drives unnecessary support calls.
Technical Highlights:
- SPDT Contact, 5A @ 30VDC: Rated capacity for typical electromagnetic locks (EMLocks, shear locks, electric strikes) without undersizing concerns — a 5-amp envelope is standard for most commercial locking hardware in this voltage class.
- Tri-Color LED Status (30 mA @ 24VDC): Negligible power draw means your 24/30VDC supply won't sag under indicator load. More importantly, real-time door and lock state feedback reduces blind releases and gives operators confidence the lock actually energized.
- Momentary Switch Configuration: The DTMO-2 variant delivers a pulse, not sustained energization — essential if your lock hardware is designed for momentary triggers (most EMLocks) and prevents lock coil burnout from continuous energization.
Deployment Considerations:
- The DTMO-2 is hardwired only — there's no remote access or networked release capability. For multi-location or off-site release, you'll need a larger access control panel with network connectivity or a separate remote-release system.
- LED status feedback requires integration of door sensors (magnetic contacts, position switches) into the console's indicator lines. Consult your access control panel wiring diagram to confirm the sensor loop doesn't conflict with other alarm circuits.
The DTMO-2 is the right choice for small-footprint guard stations and control rooms managing one or two critical doors — retail, small office, school entry — where a compact desktop console and simple momentary release are sufficient. If you're already running a larger access control panel with multiple relay outputs, adding dedicated DTMO-2 consoles at key access points can offload operator workload and improve response time for routine door releases.
