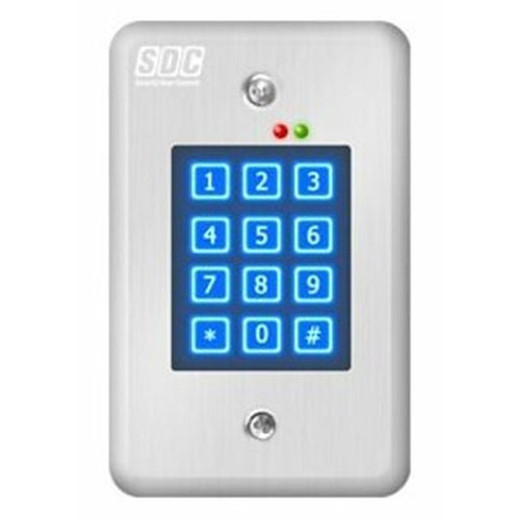

SDC 918U NFC Keypad Indoor Access Control Reader
Overview
The SDC 918U is a wired NFC keypad reader designed for indoor access control deployments requiring credential-based authentication with PIN verification. Operating at 13.56MHz, the 918U communicates via OSDP (Open Supervised Device Protocol), a widely adopted standard in integrator-grade security systems that ensures compatibility with established door controllers and access management platforms. The device is rated for up to 500 users, making it practical for small to mid-sized commercial and institutional environments — offices, educational facilities, and warehouse entry points where you need reliable identity verification without the cost and complexity of enterprise-scale systems.
Key Features
- 13.56MHz NFC Technology: Dual-factor authentication via NFC credential presentation combined with PIN entry eliminates single-point-of-failure authentication. This approach is harder to spoof than credential-only systems and maintains audit trails for both card/tag and PIN attempts — critical for compliance-sensitive environments.
- OSDP Protocol: Direct communication with access control panels and controllers via OSDP ensures encrypted, bidirectional command and status exchange. Unlike Wiegand or raw RS-485, OSDP provides real-time tamper detection, reader diagnostics, and secure firmware updates — reducing field service callouts and strengthening security posture.
- 500-User Capacity: Local storage for up to 500 enrolled credentials reduces dependency on continuous network availability. If your controller connection drops temporarily, the reader can still authenticate local users and log the access event for later synchronization — a practical safeguard for facilities where network uptime is imperfect.
- Wired Installation: Hardwired connectivity eliminates battery maintenance and power drift — a real advantage over wireless readers in high-traffic areas. Power and data run on a single cable, simplifying rough-in for new construction and retrofit work.
- Indoor Form Factor: Designed for protected entryways, vestibules, and interior access points. Not rated for exterior exposure, so site the 918U behind an awning or within a weatherproof enclosure if mounting near doorways subject to water splash or direct sunlight.
- PIN + Card/Tag Verification: Combining NFC credential reading with numeric PIN entry implements two-factor authentication without additional hardware. Users cannot gain access with a lost or stolen card alone — a significant deterrent in medium-security environments and a compliance advantage in regulated spaces.
Integration & Compatibility
The 918U is designed for integrator-grade security control systems that support OSDP readers. Confirm that your access control panel or door controller includes an OSDP reader port or module before procurement — not all legacy panels support this protocol. If you're upgrading from Wiegand readers, plan for a gateway device or controller replacement to leverage the 918U's encrypted communication. Consult your access management software documentation to verify NFC tag support and PIN validation rules.
For access control deployments, the 918U sits at the point of entry and feeds authentication decisions to your controller. It does not function as a standalone lock or strike — you must pair it with a compatible electric strike, magnetic lock, or door controller to complete the physical access path.
Deployment Considerations
Plan wiring runs early: the 918U requires both power and OSDP data on a single cable, so conduit or cable tray layout affects installation time. If running longer cable runs (over 100 feet), verify cable gauge and voltage drop with the manufacturer to ensure the reader receives adequate supply current. Mount the reader at a comfortable height — typically 48 inches from the floor — so users can comfortably present credentials without bending or reaching. Test PIN entry ergonomics during pilot deployment; small keypads can frustrate users with cold hands or gloves, affecting adoption.
The 918U is an indoor device. Exposure to rain, UV, or freezing temperatures will degrade performance and void warranties. If your entry points face weather, consider a protective hood or relocate the reader to an interior vestibule.
When to Choose a Different Model
If your facility requires outdoor-rated credentials, look for weatherproofed variants in the SDC access control line. If you need wireless operation or battery independence, consider contactless readers that do not require wired power. If your user base exceeds 500 or you need enterprise reporting and role-based provisioning, upgrade to a networked access control platform with cloud or on-premises management; the 918U is optimized for small deployments with straightforward PIN-and-card workflows.
Frequently Asked Questions
Q: Does the SDC 918U work with all access control panels?
A: No. The 918U communicates via OSDP protocol, so your panel or controller must support OSDP readers. Legacy Wiegand-only systems will not be compatible without an additional OSDP gateway or controller upgrade.
Q: Can I use the 918U outdoors?
A: The 918U is rated for indoor installation only. Direct rain, UV exposure, and temperature extremes will damage the electronics. Mount it behind a protective hood or in an interior vestibule.
Q: What happens if the network connection to my access control panel goes down?
A: The 918U can store up to 500 user credentials locally and authenticate against them without network connectivity. Access events are logged internally and synchronized when the connection is restored.
Q: How do I enroll new users on the 918U?
A: User enrollment is typically managed through your access control management software or panel interface, not directly on the reader. Consult your controller's commissioning guide for provisioning procedures.
Q: Is the 918U NDAA Section 889 compliant?
A: Compliance certifications are not mentioned in the available evidence. Contact the manufacturer or your integrator to confirm regulatory status for your specific procurement requirements.
Q: Can I use the 918U in a retrofit application, or do I need new wiring?
A: Retrofit feasibility depends on your existing conduit and cable runs. The 918U requires power and OSDP data, typically on a single shielded cable. If existing Wiegand runs are in place, you may be able to reuse conduit, but the electronics and panel must be replaced or upgraded to OSDP-capable equipment.
Jerry TildsenPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I evaluate the 918U as a practical mid-market reader for facilities moving from legacy card-only or Wiegand systems to OSDP-based control. The combination of 13.56MHz NFC and PIN verification gives you meaningful authentication depth without overcomplicating deployment, and OSDP's encrypted bidirectional communication is a genuine security step up from Wiegand's unidirectional, unencrypted data stream.
Technical Highlights:
- OSDP Protocol: Encrypted reader-to-controller communication with built-in tamper detection and real-time status reporting — eliminates the security and diagnostic blindspots of legacy Wiegand installations and simplifies firmware updates without field service calls.
- 500-User Local Storage: Credentials cached on the reader mean temporary network outages don't lock users out. The device logs failed authentication attempts and syncs them back when connectivity is restored — a resilience advantage for facilities with unreliable network or distributed access points.
- Dual-Factor Authentication (NFC + PIN): Stolen or lost credentials alone won't grant access; the PIN requirement adds a second verification step that's inexpensive to implement and significantly harder to circumvent than card-only systems.
Deployment Considerations:
- The 918U is wired only — no battery backup or wireless fallback. Plan conduit and power distribution carefully; runs longer than 100 feet may require larger gauge cable to avoid voltage drop and reader sluggishness.
- Indoor-only rating is a real constraint. If your entry points see weather, you'll need a protective hood or interior vestibule relocation; water ingress is common in retrofit work and will kill the electronics quickly.
- Confirm OSDP support on your access control panel before ordering. Wiegand-only systems require controller replacement or an external gateway device, which can turn a simple reader upgrade into a panel swap.
Position the 918U for small to mid-sized facilities — offices, K–12 schools, warehouse entry points — where you want to retire Wiegand readers and add authentication rigor without enterprise VMS overhead. For single-door or small multi-door retrofits with existing OSDP-ready panels, the 918U is a straightforward procurement. For larger rolling migrations or greenfield deployments, evaluate whether a networked access control platform with cloud provisioning and detailed reporting would be a better long-term fit.
